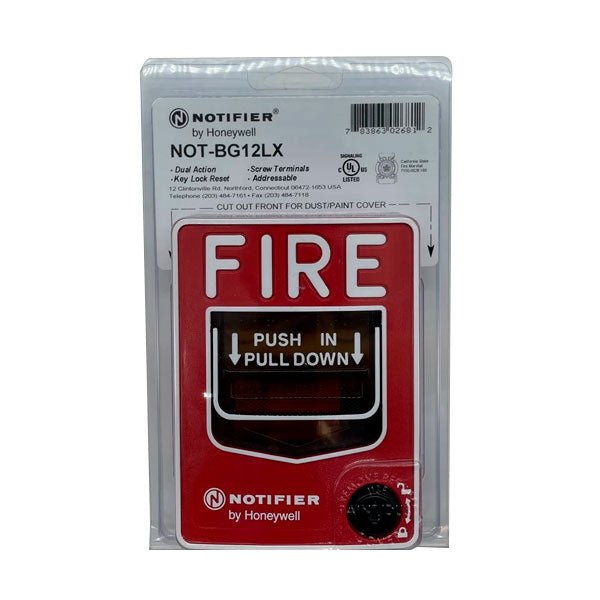

NOTIFIER NOT-BG12LX — dual-action addressable manual pull station with key locking feature, listed for Canadian and non-Canadian applications.

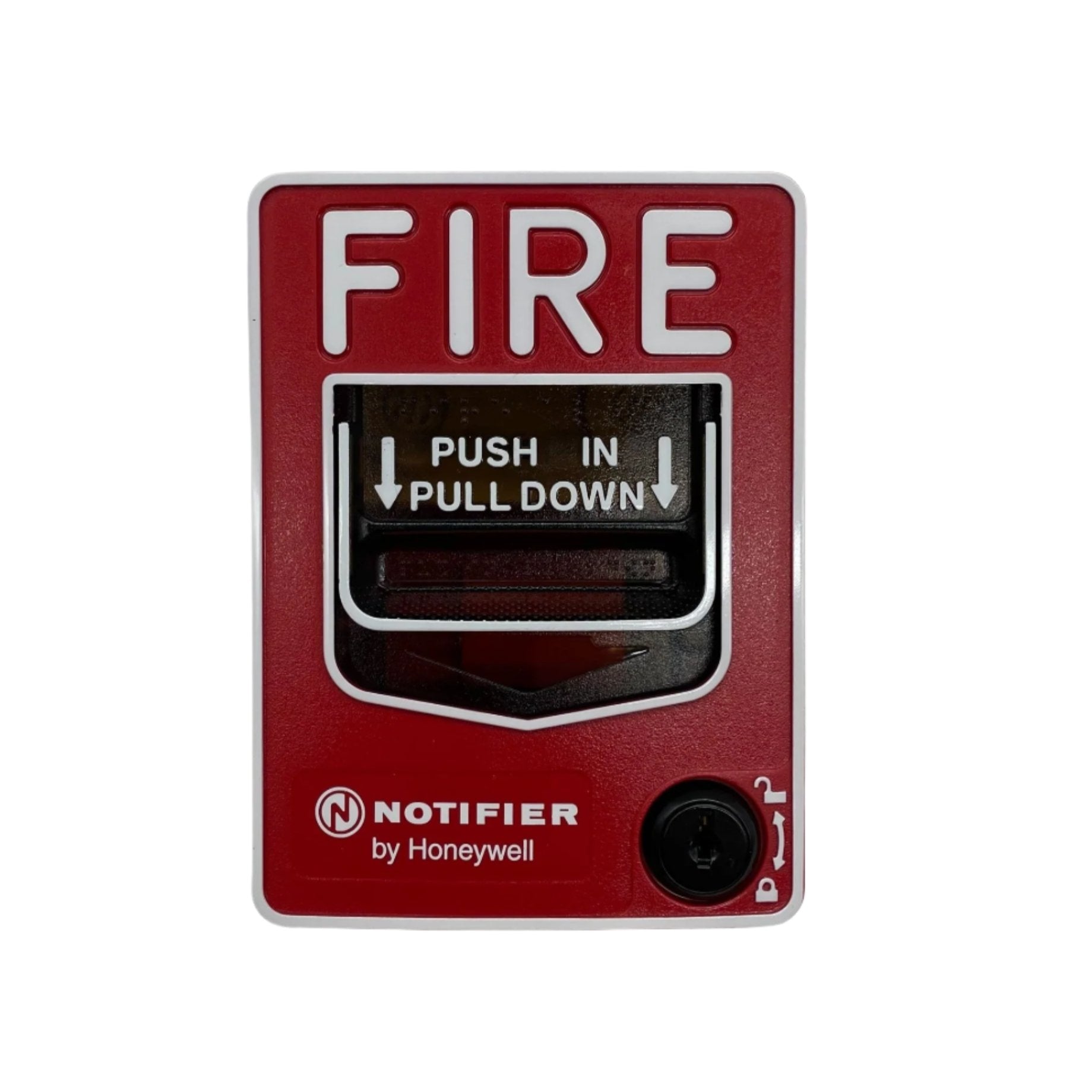

The NOT-BG12LX is a dual-action pull station — two motions are required to activate it — that includes an addressable interface for FireWarden series intelligent control panels and the NSP-25 panel. Because it is addressable, the control panel can display the exact location of the activated manual station, leading fire personnel straight to the alarm. Pushing in and then pulling down on the handle latches it in the down/activated position; the word “ACTIVATED” appears in bright yellow at the top of the handle and a portion of the handle protrudes from the bottom of the station. A built-in bicolor LED, visible through the handle, flashes in normal operation and latches steady red in alarm. Resetting means unlocking the station with the key and pulling the door open, which resets the handle; closing the door automatically resets the switch. Maintenance personnel can open the station for inspection and address setting without causing an alarm condition. Shell, door and handle are moulded of durable polycarbonate with a textured finish.
Specifications
| Type |
Dual-action addressable manual pull station, key reset |
| Panel compatibility |
FireWarden series intelligent control panels and the NSP-25 panel |
| Addressing |
Two rotary decimal switches; 1–99 on NFW2-100/NFW2-100C, 1–50 on NFW-50/NFW-50C |
| Normal operating voltage |
24 VDC |
| Maximum SLC loop voltage |
28.0 VDC |
| Maximum SLC standby current |
375 µA |
| Maximum SLC alarm current |
5 mA |
| Temperature range |
32°F to 120°F (0°C to 49°C) |
| Relative humidity |
10% to 93% (non-condensing) |
| Environment |
For use indoors in a dry location |
| Shipping weight |
9.6 oz. (272.15 g) |
| Terminals |

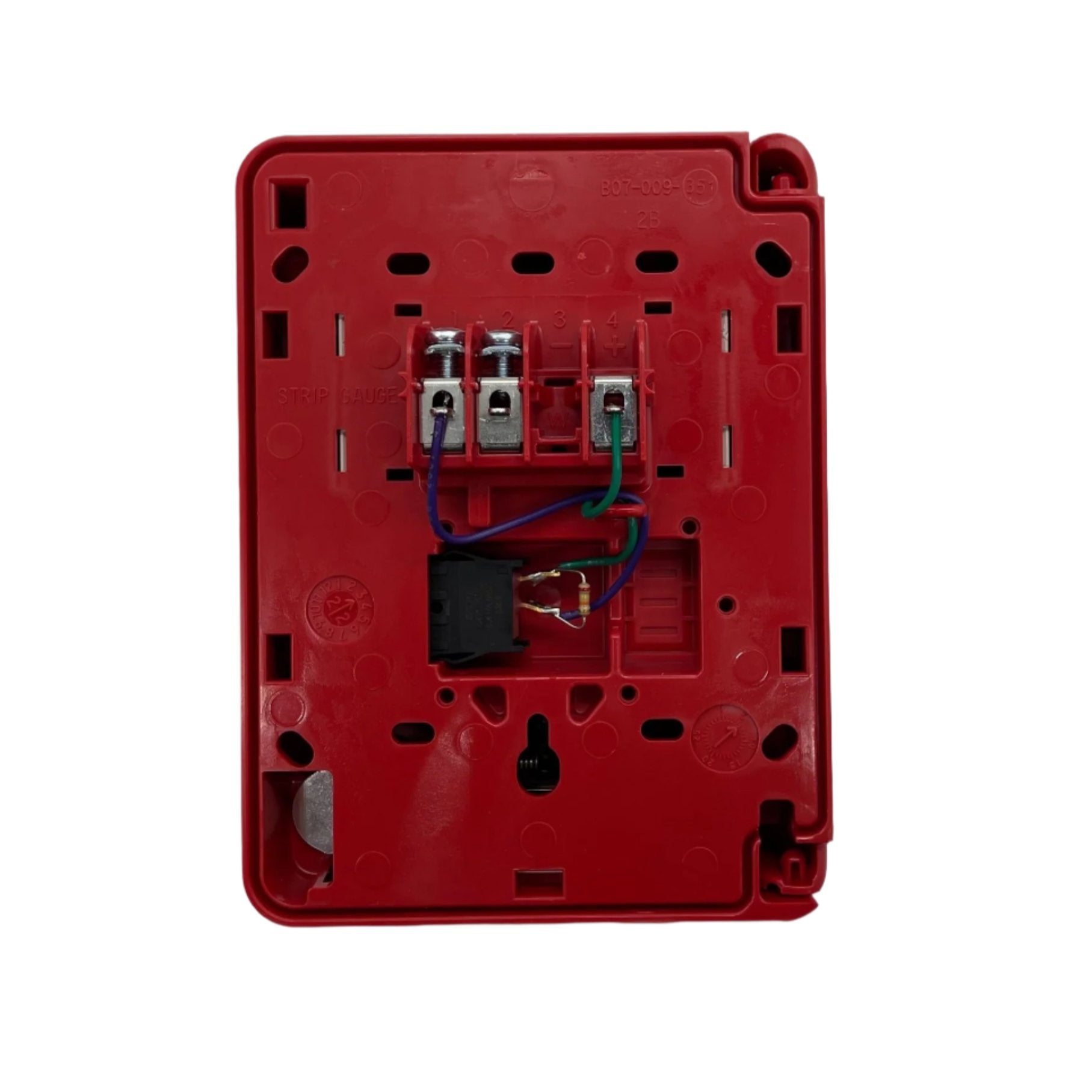

Captive screw terminals, wire-ready, accept up to 12 AWG (3.25 mm²) |
| Construction |
Shell, door and handle moulded of durable polycarbonate with textured finish |
| Activation force |
Meets ADAAG controls and operating mechanisms guidelines (Section 4.1.3[13]) and the ADA 5 lb. maximum activation force requirement |
| Standard |
Meets UL 38, Standard for Manually Actuated Signaling Boxes |
| Mounting |
Surface mount with SB-10 or SB-I/O; semi-flush to a standard single-gang, double-gang or 4 in. (10.16 cm) square electrical box |
| Agency listings |
UL/ULC Listed S692 (Canadian and non-Canadian applications); MEA 67-02-E Vol. IV; CSFM 7150-0028:0199; FM Approved |
| Patents |
U.S. Patent No. D428,351; 6,380,846; 6,314,772; 6,632,108 |
| Country of origin |
Made in the U.S.A. |
Installation notes
-
Address range depends on the panel: the rotary decimal switches allow 1–99 on the NFW2-100/NFW2-100C and 1–50 on the NFW-50/NFW-50C. Check the address range of the specific FireWarden panel before laying out the loop.
-
Trim ring for larger boxes: the optional BG12TR trim ring is usually needed for semi-flush mounting with 4 in. (10.16 cm) or double-gang boxes, but not with single-gang boxes.
-
Indoor, dry locations only: the NOT-BG12LX is specified for use indoors in a dry location. Outdoor or wet locations require a station listed for that service.
-
Testing without alarm: the station can be opened for inspection and address setting without causing an alarm, so addresses can be checked at commissioning without dispatching the system.
-

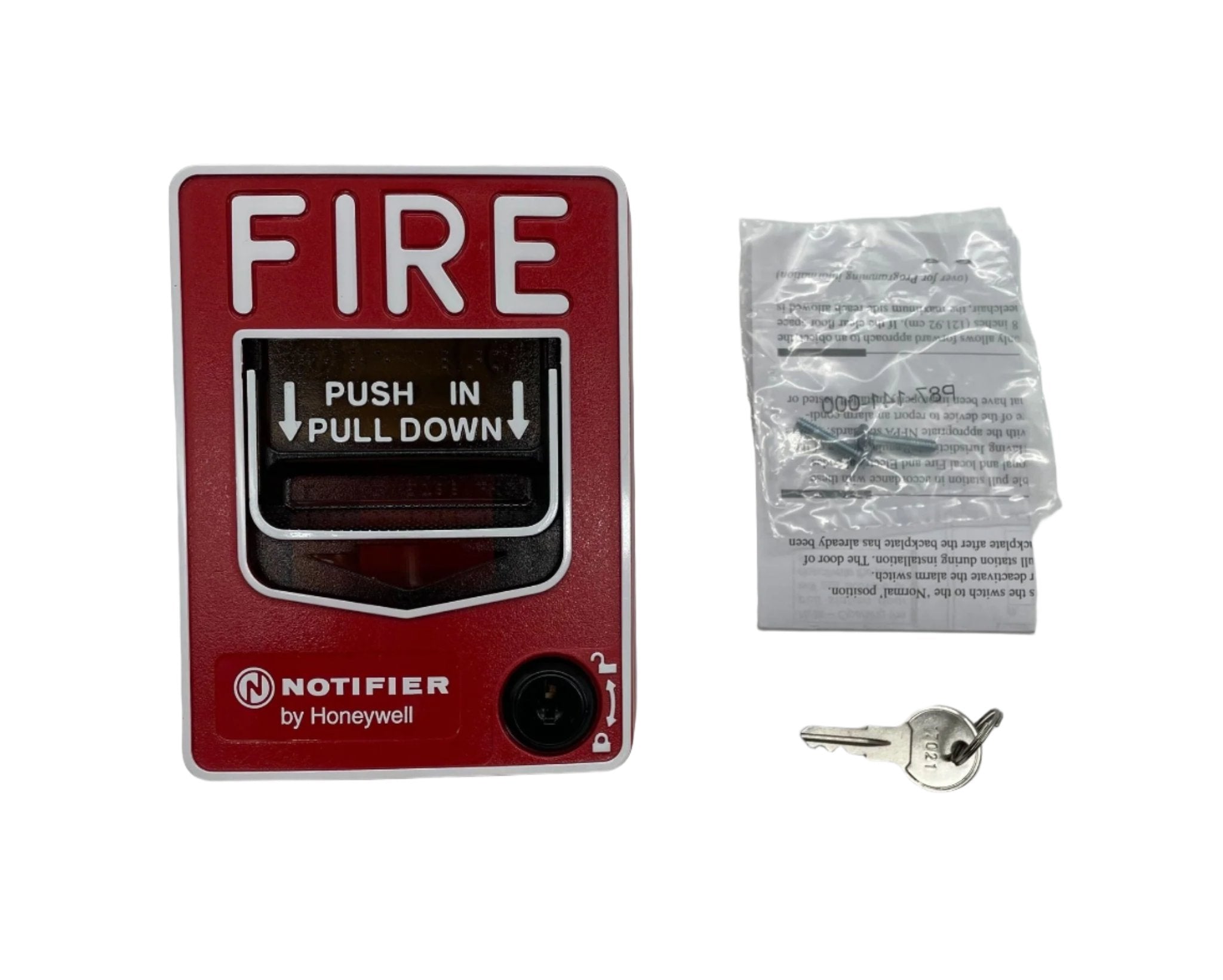

Key reset: after actual emergency operation the station cannot be restored to normal except with the key. Keys are supplied as part number 17021, set of two.
-
Two-wire SLC: the station connects with two wires to one of the control panel SLC loops and reports the state of the manual switch on command from the panel.
Related models
-
NBG-12LX — the NOTIFIER-series addressable dual-action pull station for intelligent NOTIFIER panels, covered by a separate data sheet (DN-6726). It is not interchangeable with the NOT-BG12LX, which is the FireWarden/NSP-25 variant.
-
NBG-12L — the conventional dual-action station with a dry N/O contact, for conventional panels and monitor modules rather than an SLC.
-
SB-10 — metal surface backbox. SB-I/O — plastic surface backbox.
-
BG12TR — optional trim ring for semi-flush mounting. 17021 — keys, set of two.
Specifications taken from the NOTIFIER data sheet “NOT-BG12LX Addressable Manual Pull Station,” document DN-7001:D (4/13/2012). Manufacturer specifications are subject to change without notice.
