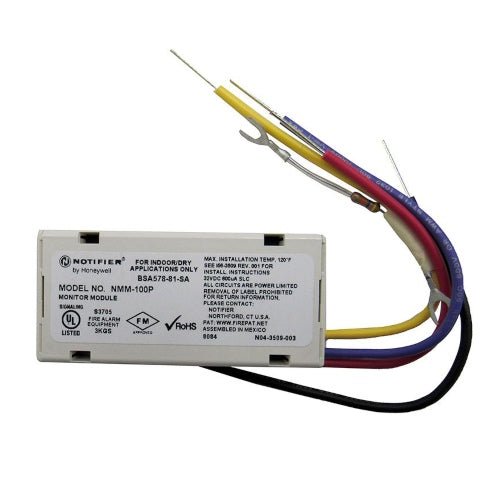

The Notifier NMM-100P is a miniature monitor module for Notifier FireWarden Series intelligent control panels. It supervises a Style B (Class B) circuit of dry-contact input devices, and its compact size lets it be mounted in a single-gang box directly behind the device it monitors, without rigid mounting.
The module is powered directly by the two-wire SLC loop, identifies itself to the panel as a monitor module, and reports the status (open, normal or short) of its initiating device circuit. It supports the LiteSpeed communication protocol.
Specifications
| Operating voltage |
15 to 32 VDC |
| Average operating current |
350 µA (one communication every 5 seconds, 47K EOL); 600 µA max |
| Maximum IDC wiring resistance |
1,500 ohms |
| Maximum IDC voltage / current |
11 V / 450 µA |
| End-of-line resistor |
47K ohms (provided) |
| Operating temperature |
32 to 120°F (0 to 49°C) |
| Humidity |
10 to 93% non-condensing |
| Dimensions |
1.3 x 2.75 x 0.65 in. (H x W x D) |
| Wire leads |
6 in. minimum, tinned and stripped |
Installation notes
- Monitors a single device or a zone of four-wire smoke detectors, pull stations, waterflow devices or other normally open contacts
- Can monitor normally open supervisory devices with supervisory indication at the panel
- Monitored circuit is wired Style B (Class B) only
- Address by rotary switches: 01 to 99 on FireWarden-100-2, 01 to 50 on FireWarden-50
- No additional power required
Related models
The NMM-100 is the standard-size monitor module for a 4 in. square box with Style B or Style D wiring, the NZM-100 monitors two-wire smoke detectors, and the NDM-100 is a dual monitor module.
Documents
FAQ
Which panels is the NMM-100P for?
Notifier FireWarden Series intelligent addressable control panels, such as the FireWarden-100-2 (addresses 01 to 99) and FireWarden-50 (01 to 50).
What wiring style does it support?
Style B (Class B) only, terminated with the 47K ohm end-of-line resistor that is provided. For Style D (Class A), use the standard NMM-100.
Where is it mounted?
In a single-gang box directly behind the device it monitors. It is small and light enough to install without rigid mounting.
Does it need separate power?
No. It is powered directly by the two-wire SLC loop.
