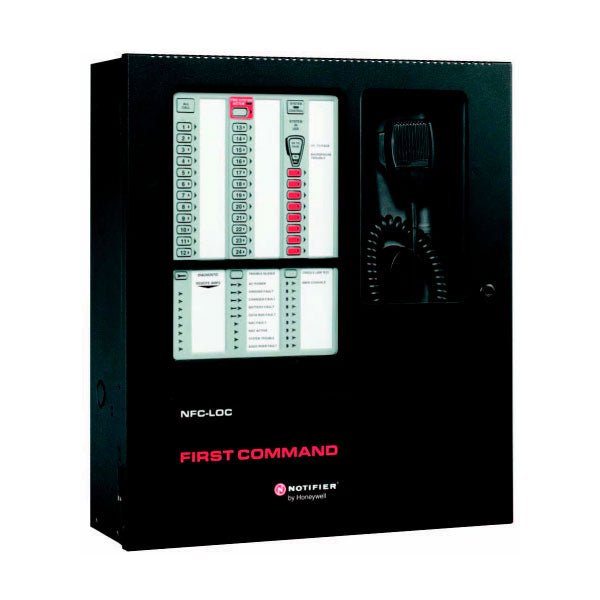

Notifier NFC-LOC FirstCommand Local Operator Console
Notifier’s First Command NFC-LOC is an optional Local Operator Console that is compatible with the NFC-50/100(E) Emergency Voice Evacuation Panel for fire protection applications and mass notification.
It is part of a family of external remote consoles that allows for extending the NFC-50/100(E) display and control to remote locations within a building.
It consists of a complete operator interface that is identical to the NFC-50/100 main console as well as a built-in microphone with a pushto-talk feature for ALL CALL paging. It is housed in a cabinet with a keyed to prevent unauthorized access.
The local operator console requires an external data bus connection, an external audio riser connection, and an external operator interface power connection (24 Volts DC) from the NFC-50/100 main console.
TYPICAL APPLICATIONS
Features
• Provides messaging status and control of the NFC-50/100(E) primary operator console
• Complete operator interface that is identical to the NFC-50/100(E) that includes a built-in microphone for ALL CALL paging
• UL 864 (Emergency Voice Evacuation for Fire) listed
• Certified for seismic applications
• A maximum of eight NFC-LOCs can be connected to an NFC-50/100(E) primary operating console
• Built-in microphone with push-to-talk feature that can be used for ALL CALL paging
• Fourteen programmable message buttons that can be used
to activate all speaker circuits remotely
• Sturdy cabinet design with a keyed lock to prevent unauthorized access. Optional thumb lock available
• Simple and straightforward user interface
Electrical Specifications
PRIMARY POWER REQUIREMENTS:
Voltage 24VDC non-resettable power from the NFC50/100(E).
External Operator Interface Power (Non-supervised).
See NFC-50/100(E) Product Manual P/N LS10001-001NF-E for standby and alarm current requirements as well as battery calculations.
Cabinet Specifications
Backbox: 19.0" (48.26 cm) high x 16.65" (42.29 cm) wide x 5.2" (13.23) deep
Door: 19.26” (48.92cm) high x 16.821” (42.73cm) wide x 670” (1.707cm) deep
Trim Ring (TR-CE-B): 22.00" (55.88 cm.) high x 19.65" (49.91 cm.) wide
Shipping Specifications
Weight: 18.44 lbs (8.36 kg)
Agency Listings and Approvals
The listings and approvals below apply to the NFC-LOC Local Operator Console. In some cases, certain modules may not be listed by certain approval agencies or listing may be in process. Consult factory for latest listing status.
• UL Listed S635
Standards and Codes
The NFC-LOC complies with the following UL Standards, NFPA 72 Fire Alarm system requirements, International Building Codes, and California Building Codes.
• UL S635.
• UL 2572
• IBC 2012, IBC 2009, IBC 2006, IBC 2003, IBC 2000 (Seismic).
• CBC 2007 (Seismic)
