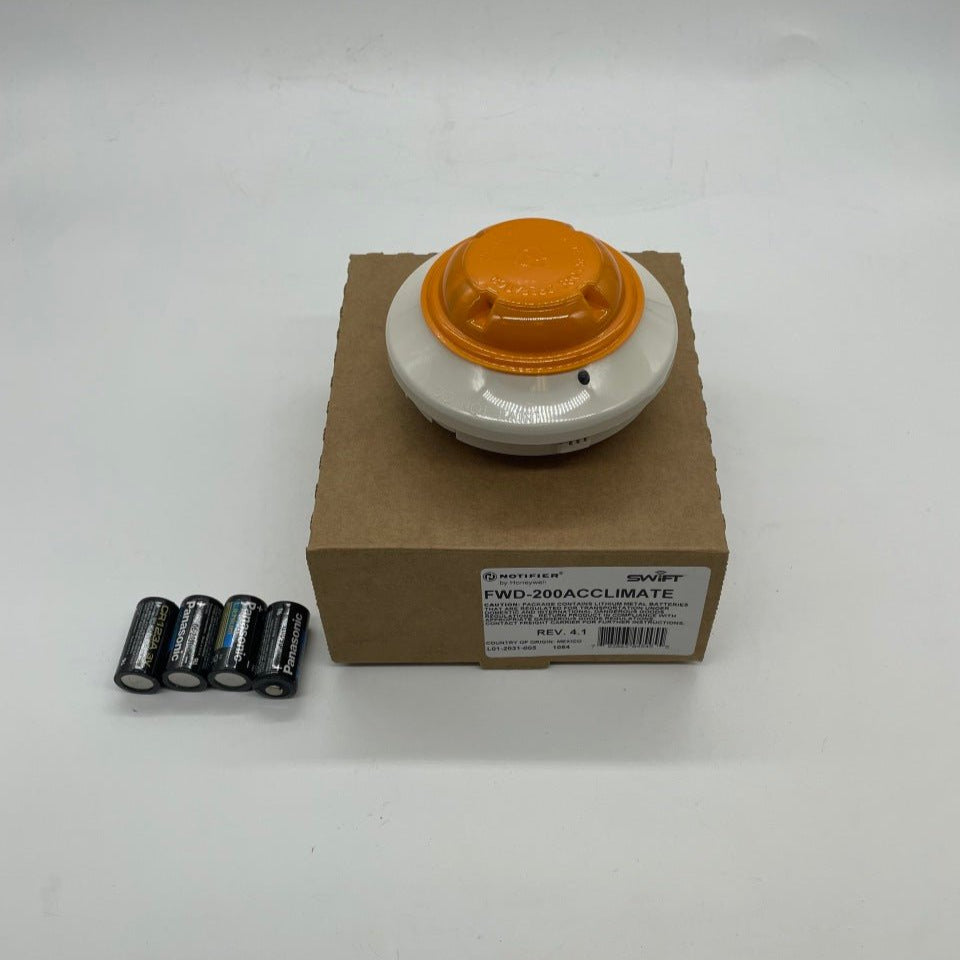

Notifier FWD-200ACCLIMATE is a FlashScan intelligent wireless Acclimate detector in the SWIFT line. It combines a photoelectric sensing chamber with a 135°F fixed temperature heat detector, uses the combined smoke and heat information, and automatically adjusts its sensitivity to ambient changes in the environment. It can also send an alarm signal due to heat per UL 521.

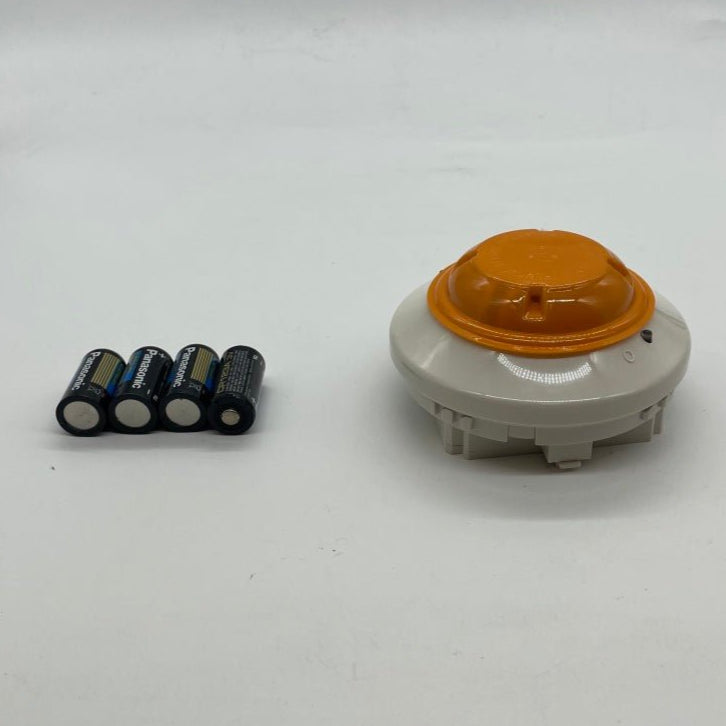

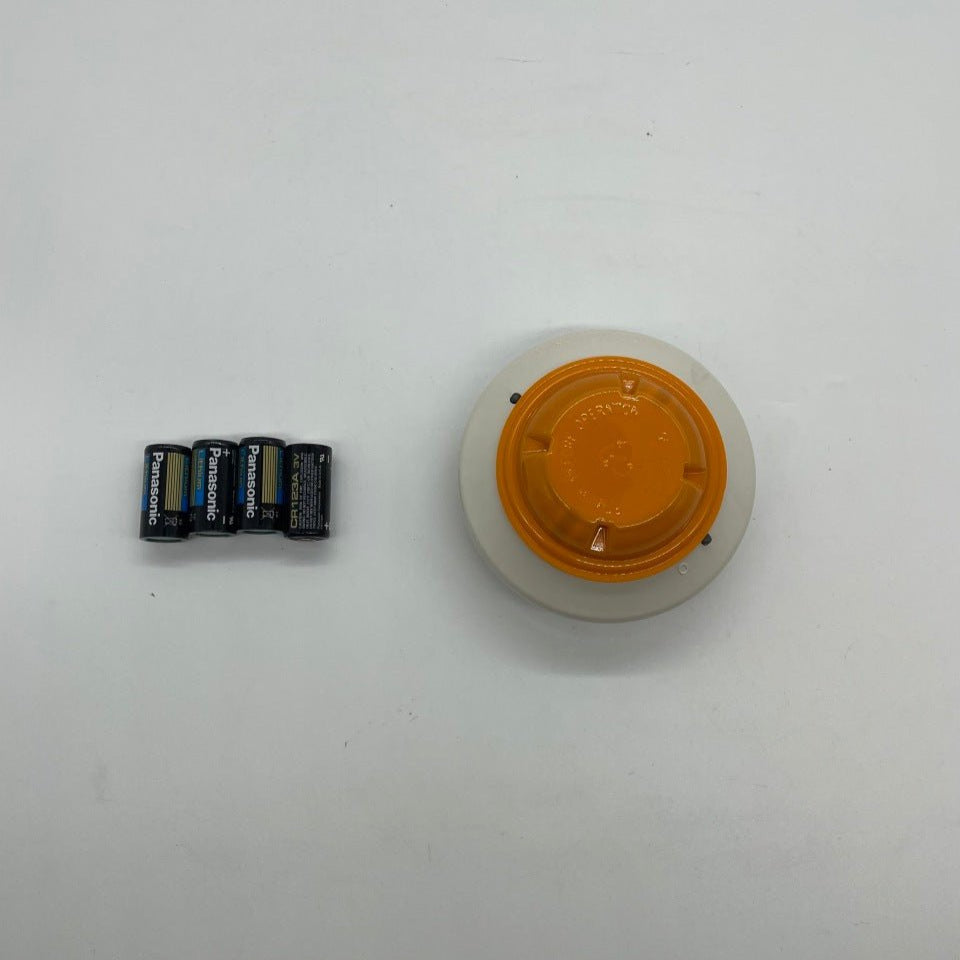

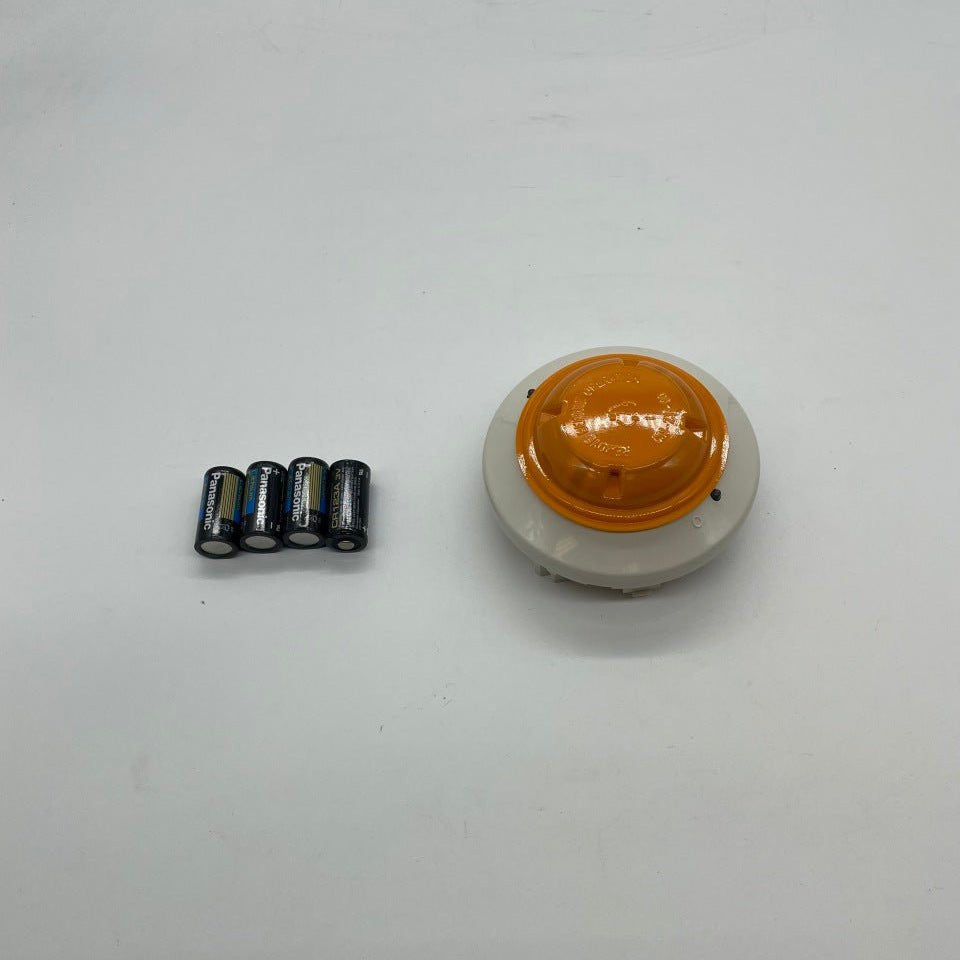

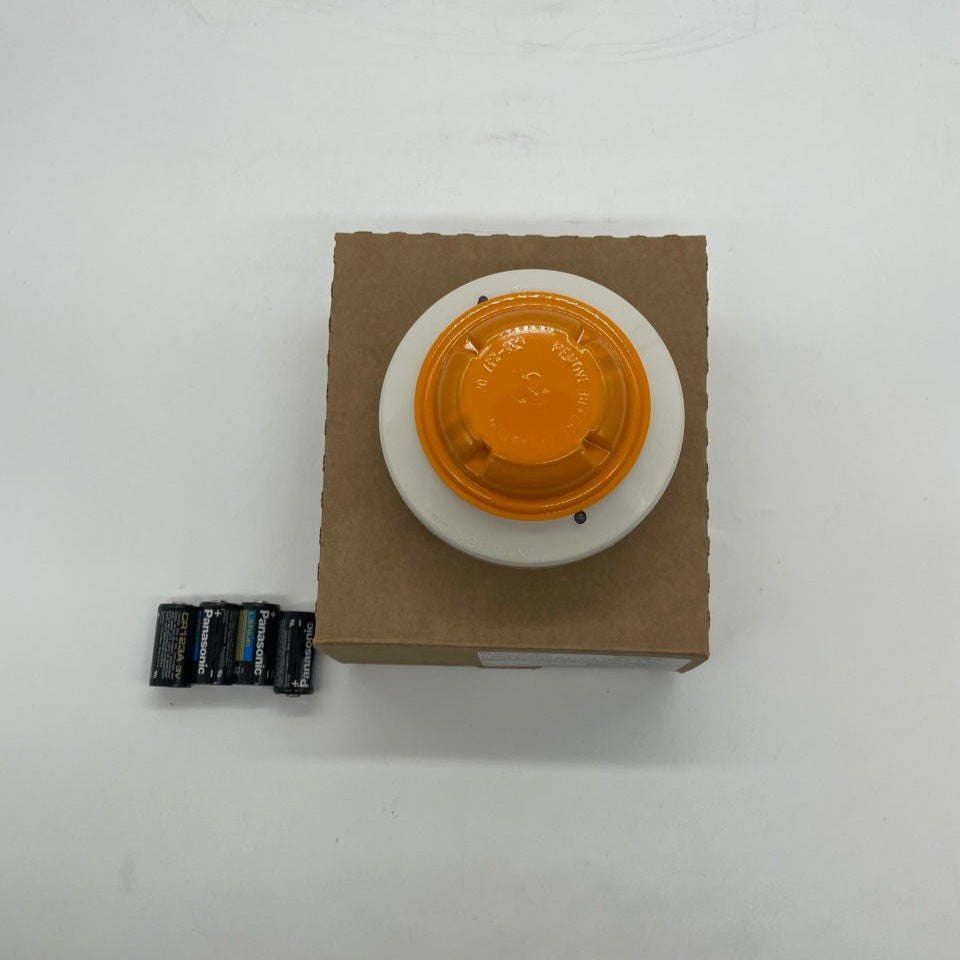

SWIFT detectors talk to the fire alarm control panel through a gateway across a Class A mesh network. Every device has two parent devices, giving a second communication path, and the system uses frequency hopping to resist interference. The panel treats each wireless detector like a wired addressable device, so wired and wireless devices can share one panel. Four CR-123A batteries are included, and one B210W base is required for installation.
Specifications
| Sensing |
Photoelectric chamber plus 135°F (57°C) fixed heat |
| Radio frequency |
902 to 928 MHz |
| Batteries |
4 Panasonic CR123A or Duracell DL123A, included |
| Battery life |
2 years |
| Operating temperature |
32°F to 100°F (0°C to 38°C) |
| Air velocity |
0 to 4,000 fpm (0 to 20 m/sec) |
| Humidity |
10% to 93% non-condensing |
| Size in B210W base |
2.4 in. high x 6.0 in. diameter |
| Weight |
9.2 oz (261 g) with batteries, in B210W base |
| Standards |
UL 268 and UL 864; FM approved |
Installation notes
- Install on a B210W base; its built-in magnet lets the detector report installed and tampered states
- One FWSG gateway is required per wireless mesh and supports up to 49 SWIFT detectors or modules

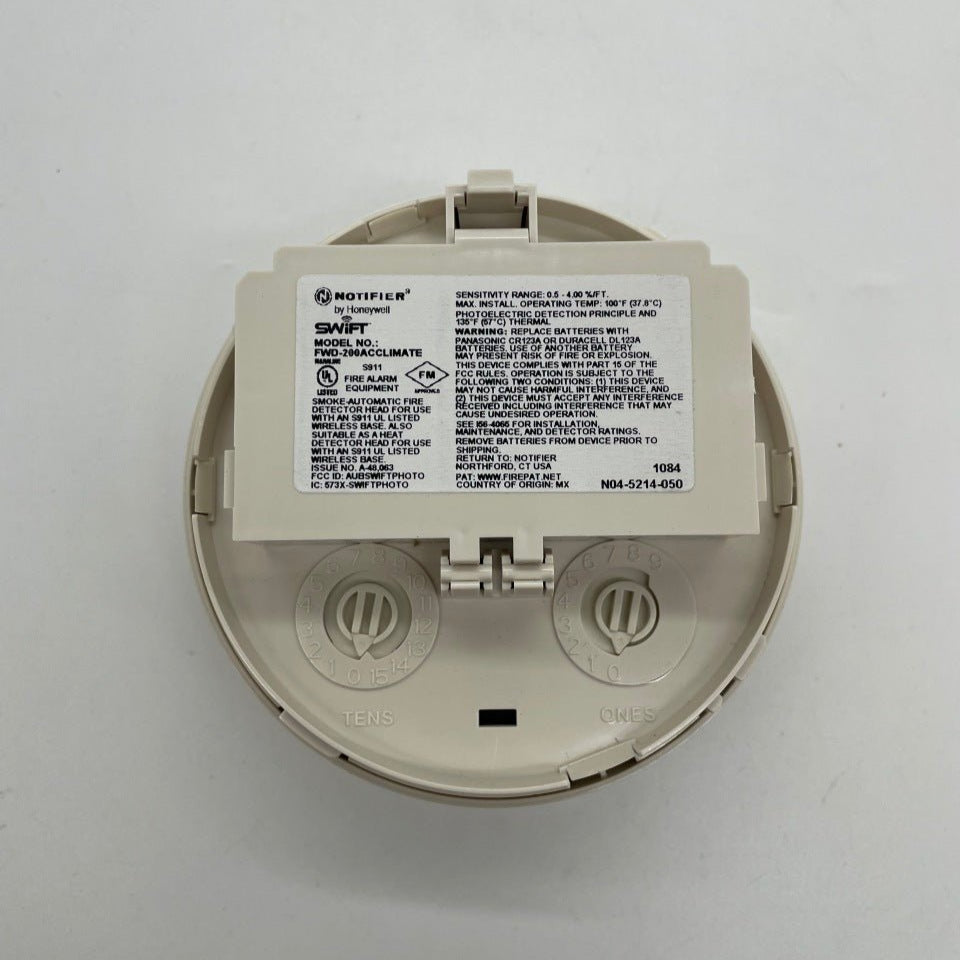

- Set the address with the code wheels on the detector
- Replace batteries on a BATTERY LOW or BAT LOW indication and during annual maintenance
- Programming and diagnostics use the free SWIFT Tools software with a W-USB radio dongle
Related models
- FWD-200P: wireless photoelectric detector
- FWH-200FIX135 and FWH-200ROR135: wireless heat detectors
- FW-MM and FW-RM: wireless monitor and relay modules
Documents
FAQ
Is the B210W base included?
The data sheet states the detector requires one B210W base for installation; the B210W appears as its own ordering item, so plan for one base per detector.
Are batteries included, and how long do they last?
Yes. Four CR-123A batteries are included, and battery life is rated at 2 years. Replace them on a BATTERY LOW indication and during annual maintenance.
Which panels support it?
Notifier NFS2-3030, NFS2-640, NFS-320, NFS-320SYS, NFW-100X and NFW-50X, through an FWSG wireless gateway on the SLC.
How many wireless devices can one gateway handle?
One FWSG gateway is required for each wireless mesh and supports up to 49 SWIFT detectors or modules.
