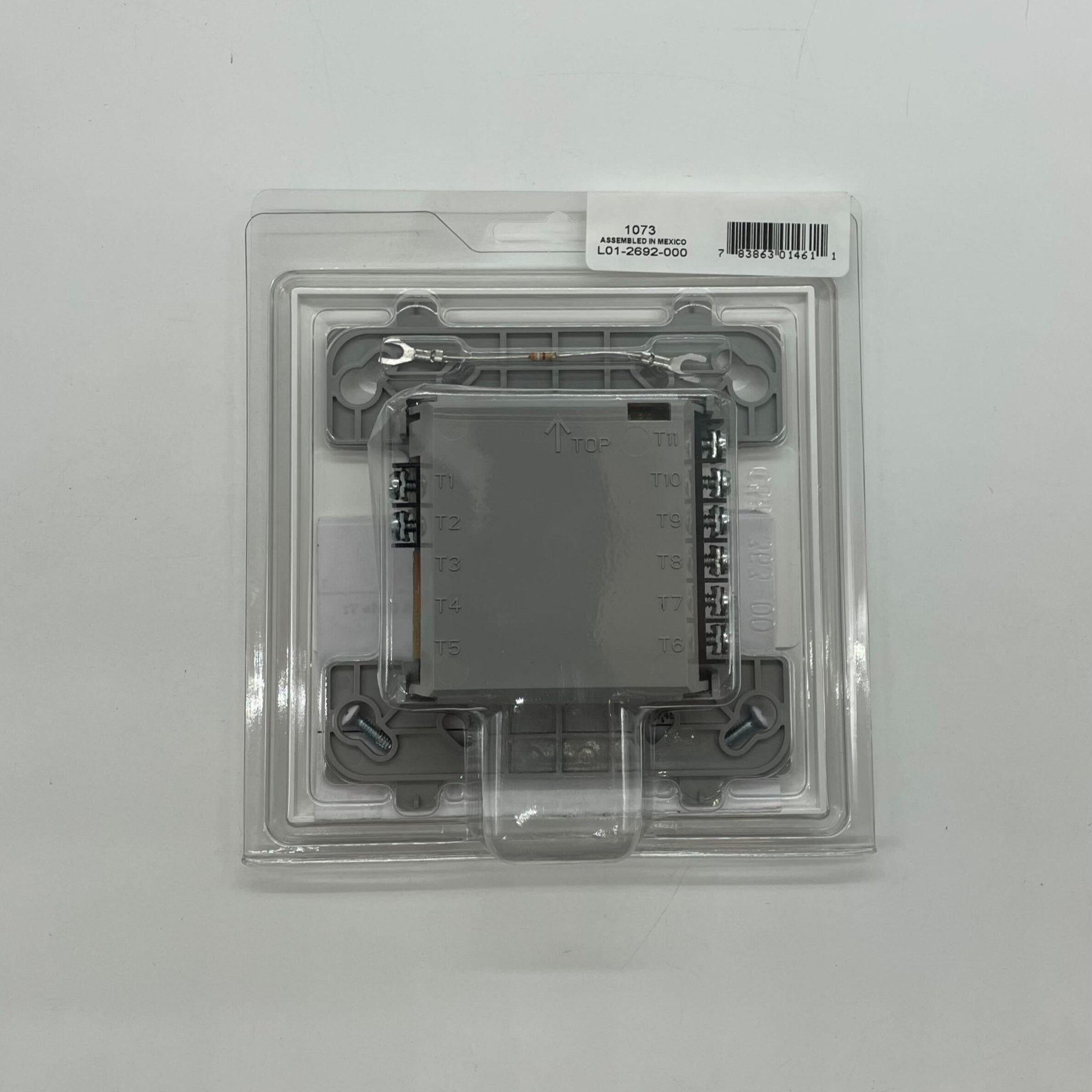

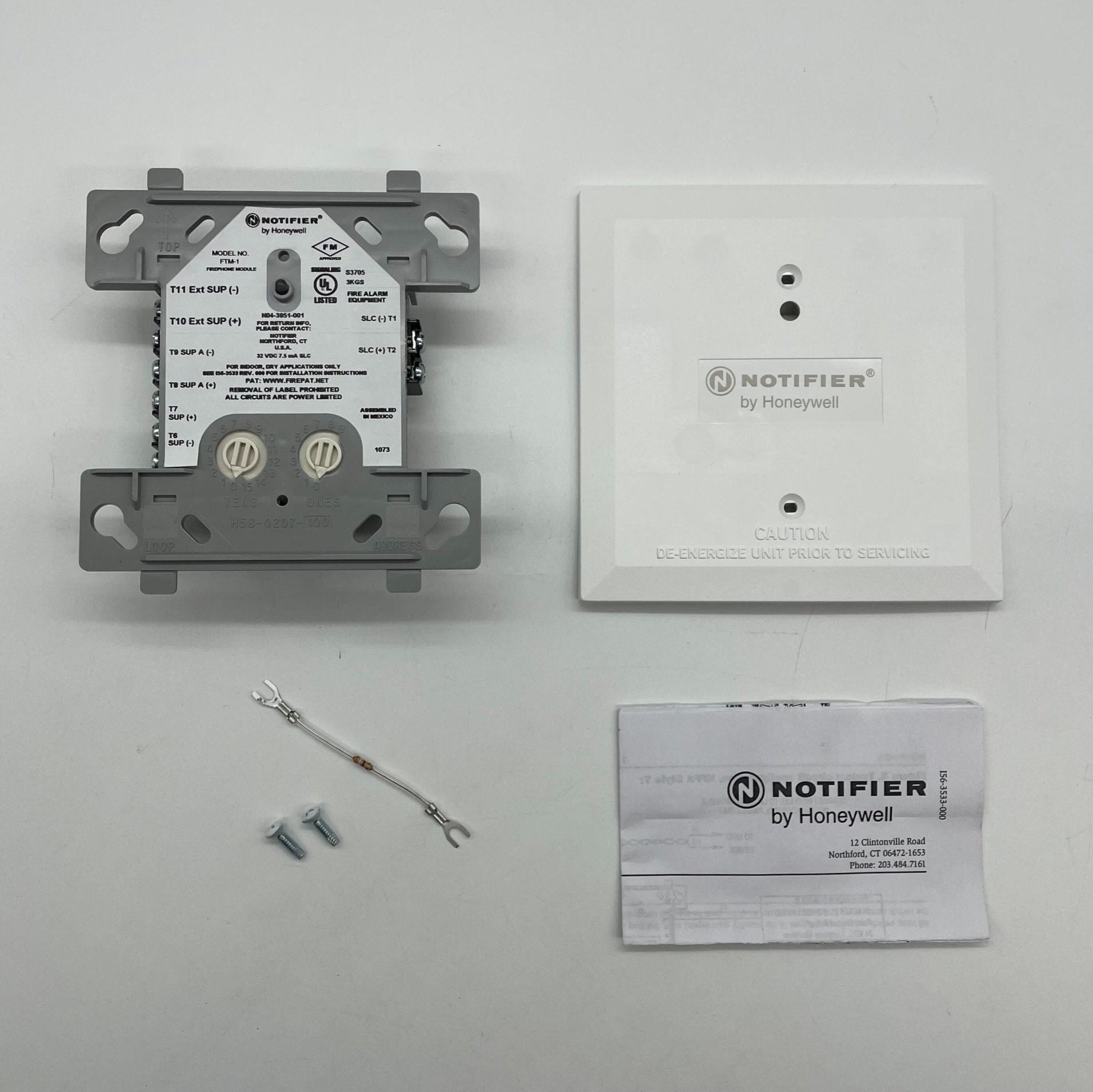

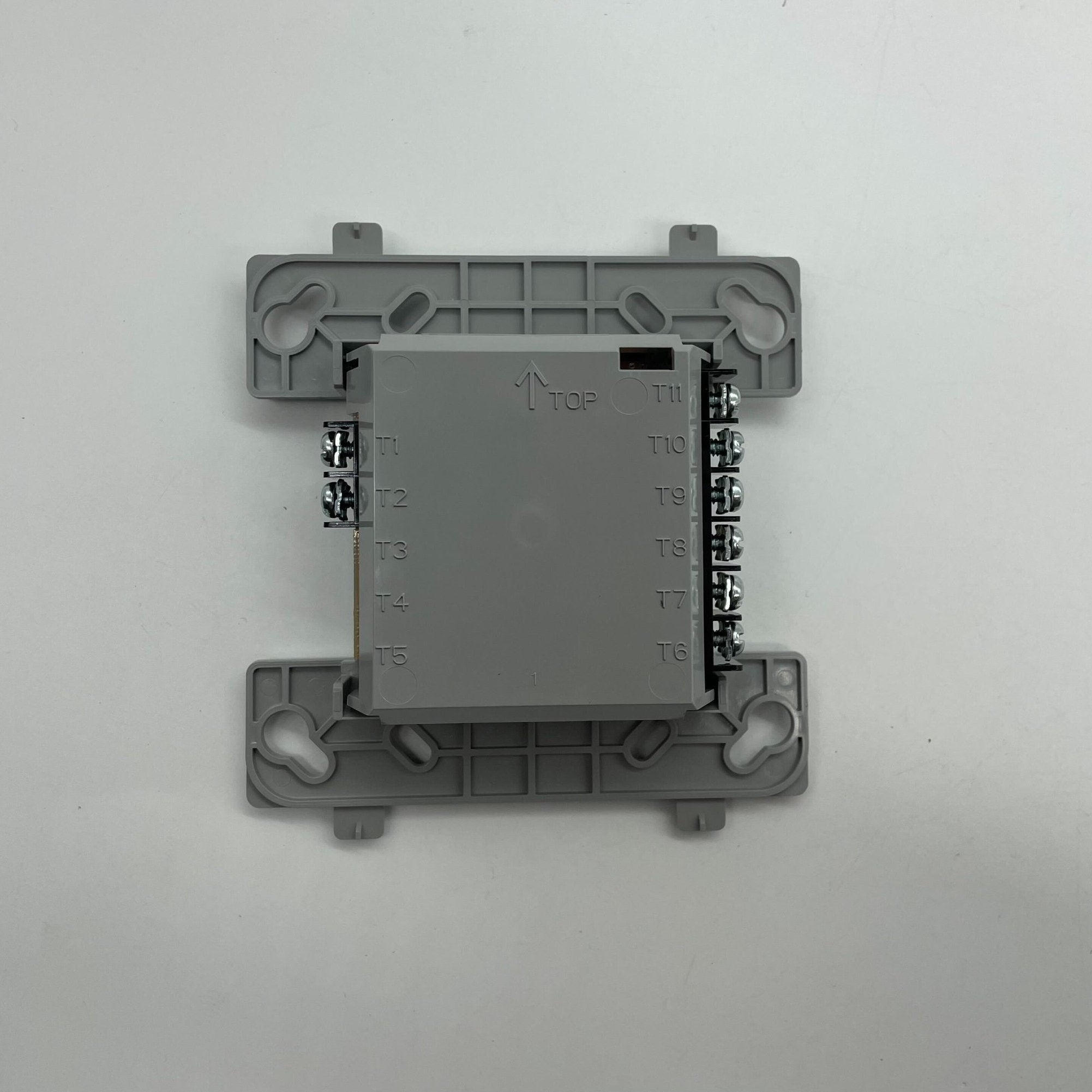

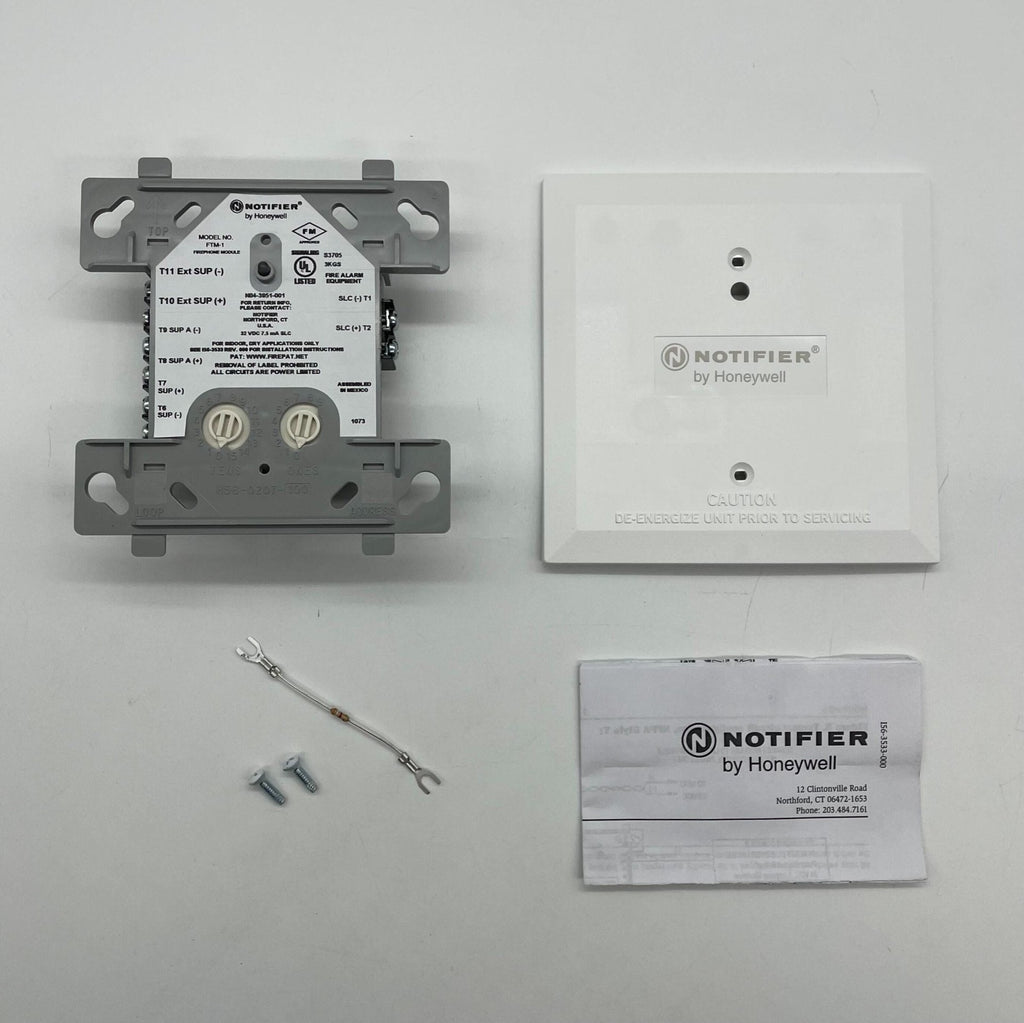

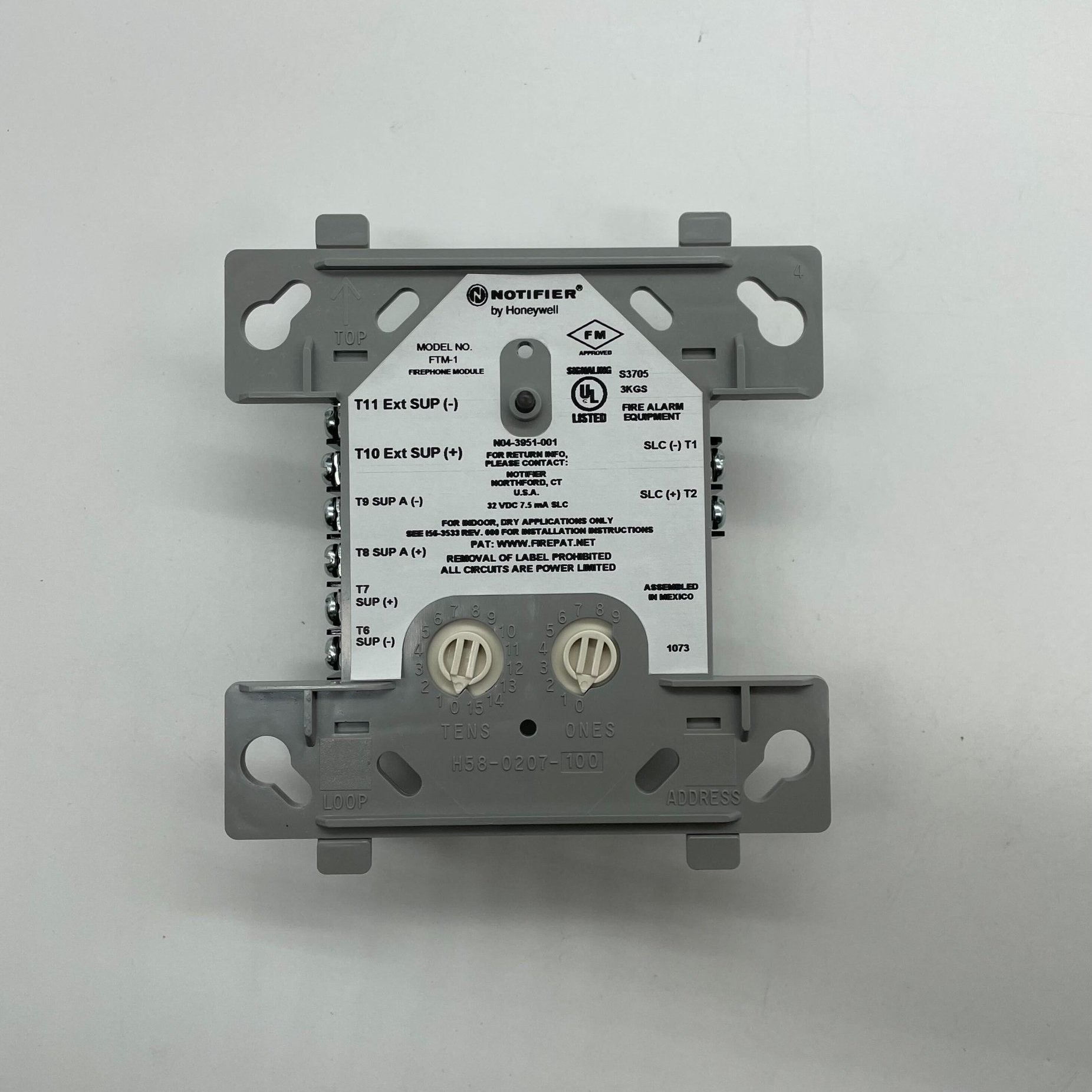

Notifier FTM-1 is an addressable firephone control module, FlashScan mode only, for the NFS-640, NFS2-640, NFS-3030 and NFS2-3030 control panels. It monitors and controls one circuit of up to two firefighter telephones.
The module connects a remote firefighter telephone to the central telephone console. Each off-hook handset hears a ring until it is connected at the console, and the operator can then connect that phone to the main riser of the voice evacuation system. Wiring to the jacks and handsets is supervised and reported as normal, trouble or off-hook, and the telephone riser is always relay isolated from the SLC.
Specifications
| Protocol |
FlashScan only |
| Address range |
01–159, rotary switches |
| Telephone circuit |
One, Style Y (Class B) or Style Z (Class A) |
| Operating voltage |
15–32 VDC |
| Current draw |
7.5 mA max (LED on) |
| External supply |
28 VDC max, terminals T3–T4 |
| EOL resistor |
3.9K ohm, included |
| Temperature |
32–120°F, 10–93% RH |
| Dimensions |
4.5 × 4 × 1.25 in.; 4 in. square × 2-1/8 in. box |
| Approvals |
UL S635, FM, CSFM, FDNY COA 6065, 6067 |
Installation notes
- Mounts to a 4 in. square, 2-1/8 in. deep box; SMB500 is the optional surface box
- UL requires the CB500 barrier when power-limited and non-power-limited wiring share the box
- Minimum software: NFS-640 v3.1.3, NFS2-640 v10.0, NFS-3030 v2.2.9, NFS2-3030 v10.0
- FTM-1A is the ULC version
Related models
Use it with Notifier firefighter telephone handsets and jacks on the panel telephone riser.
