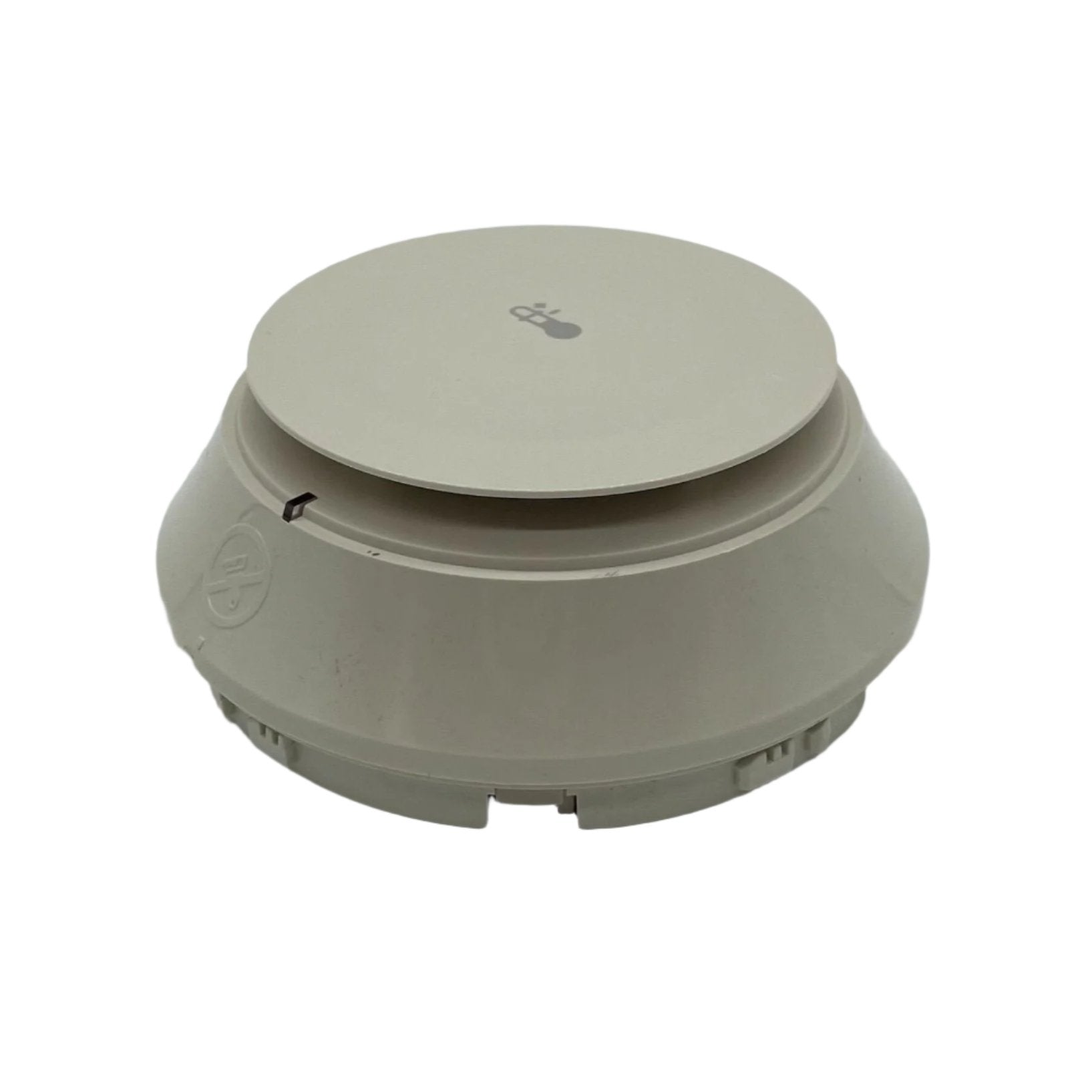

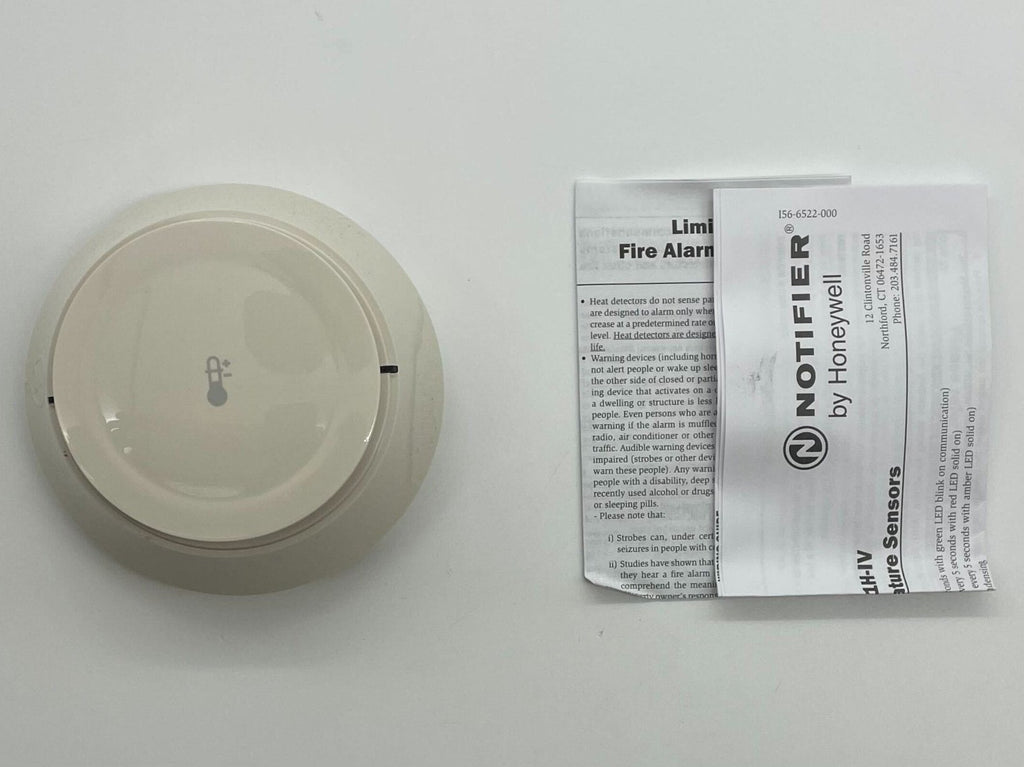

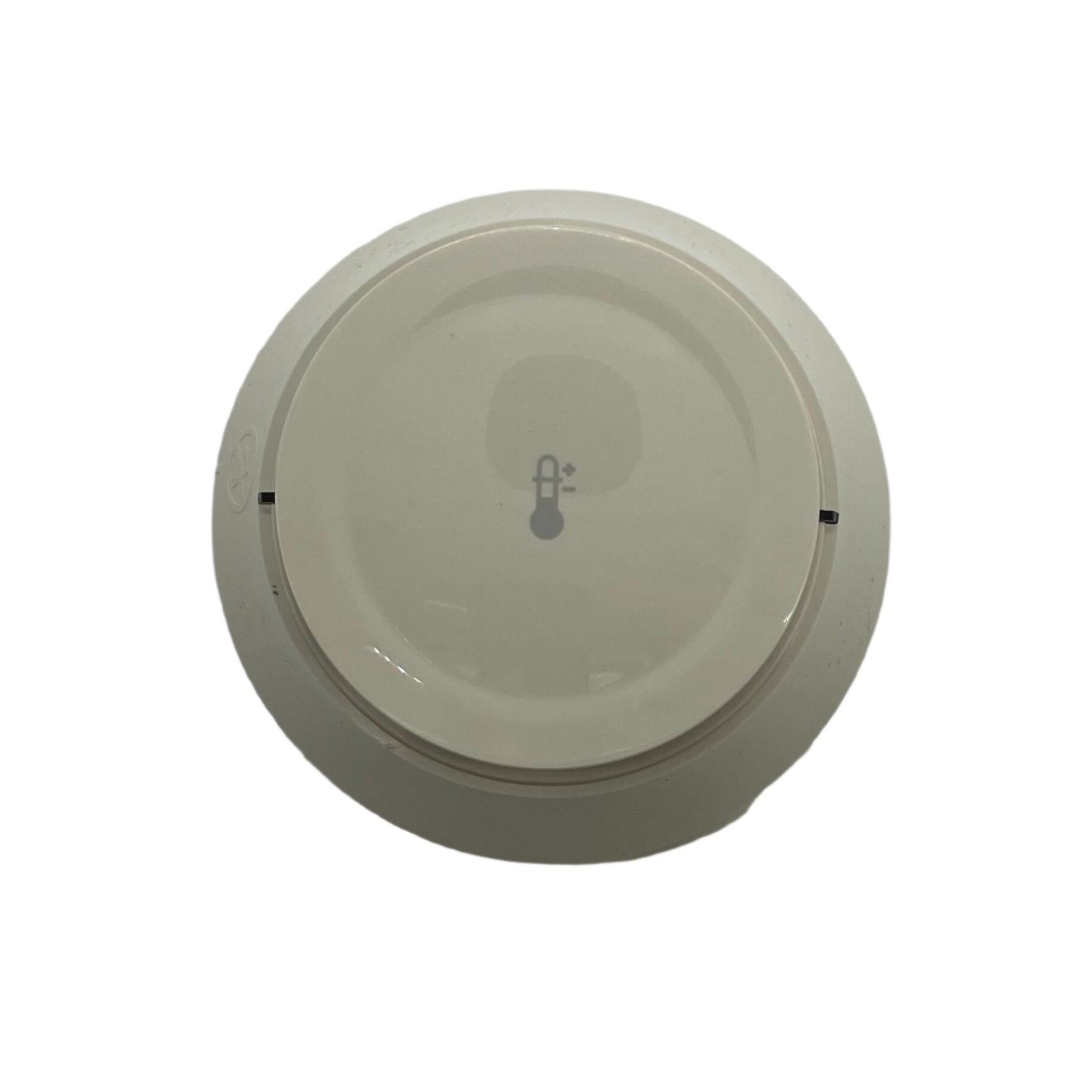

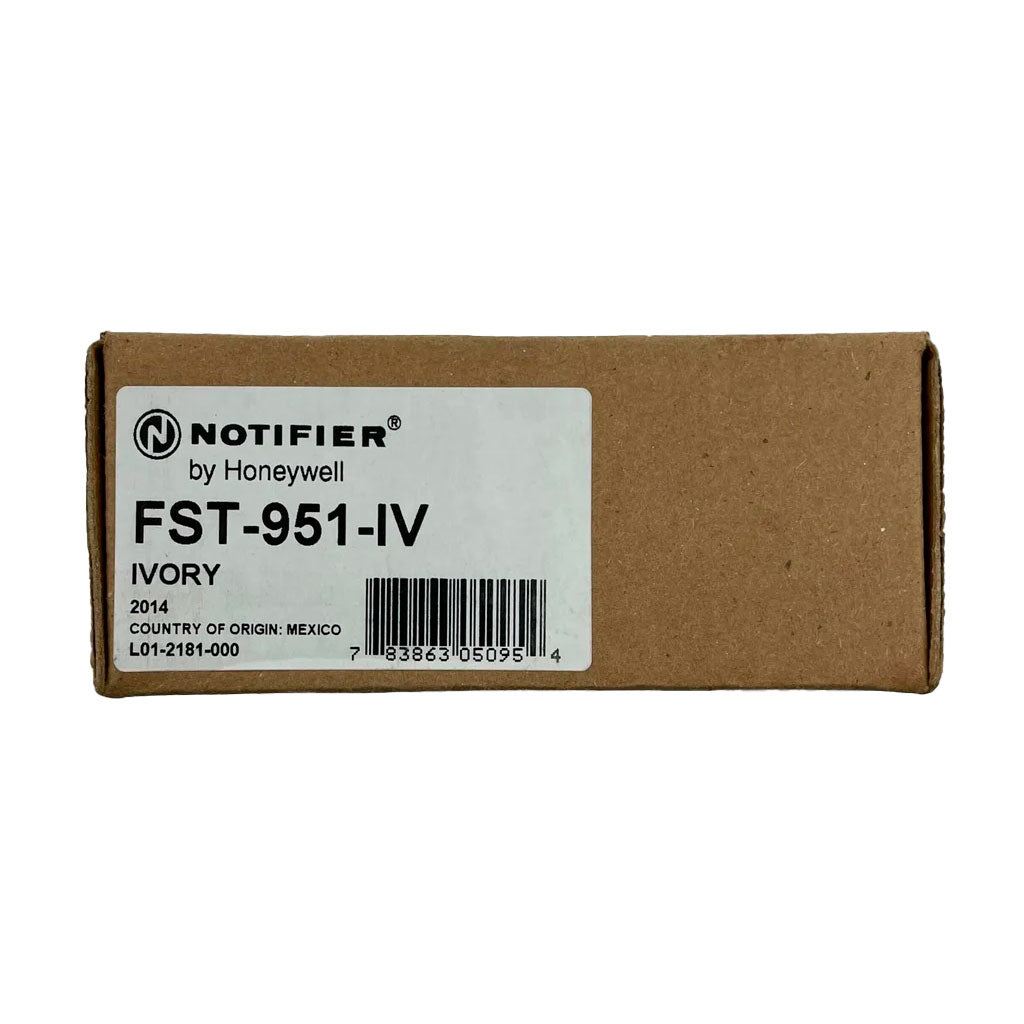

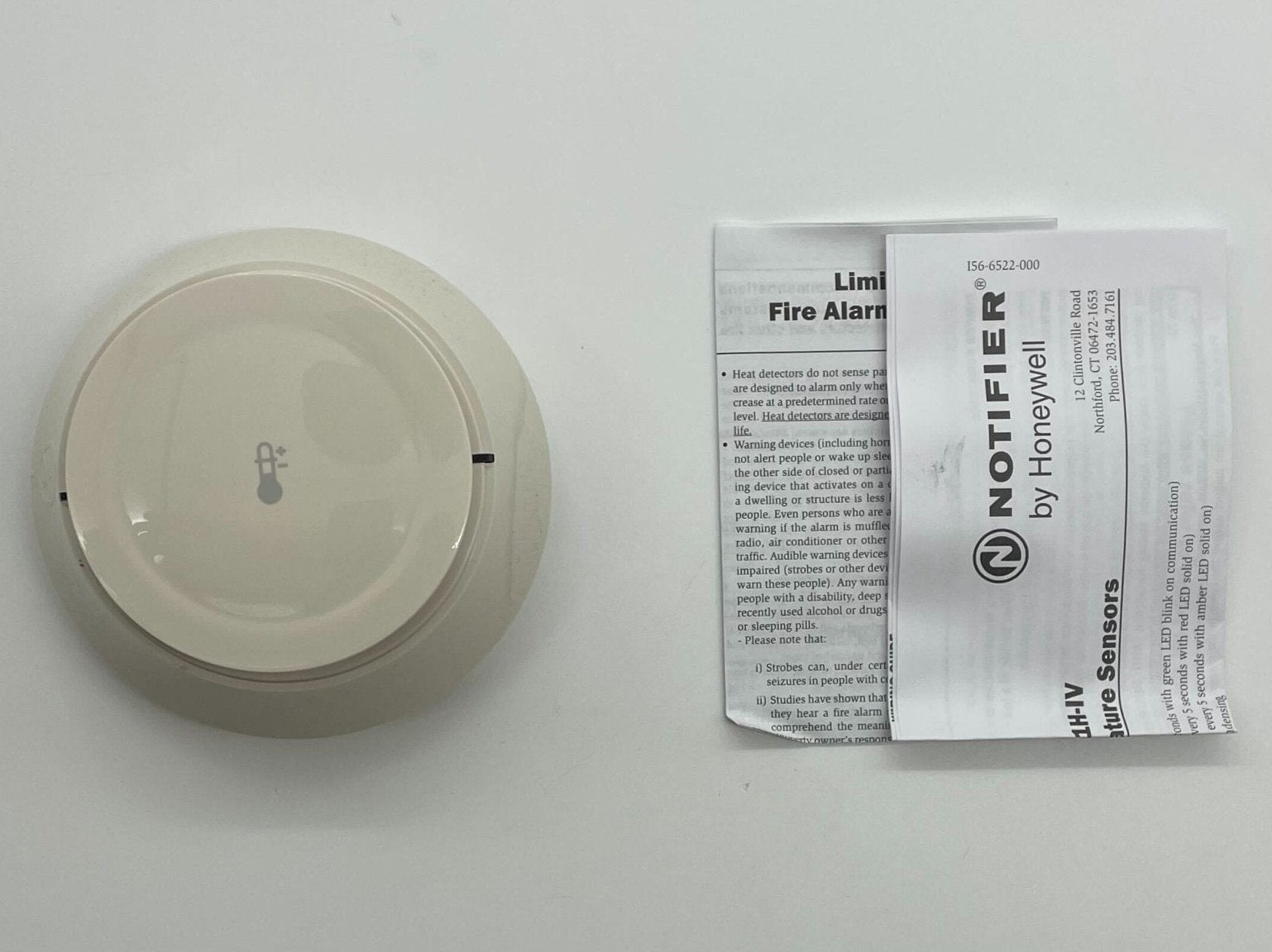

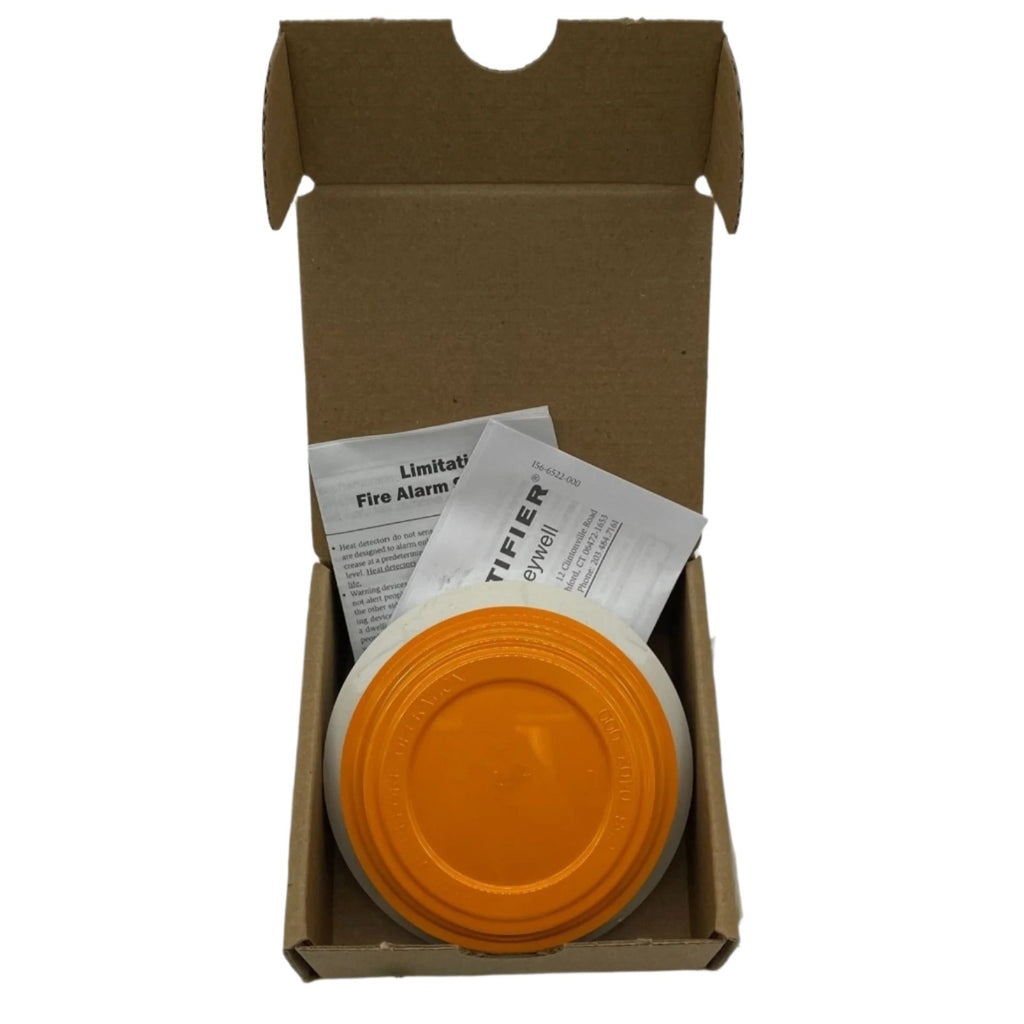

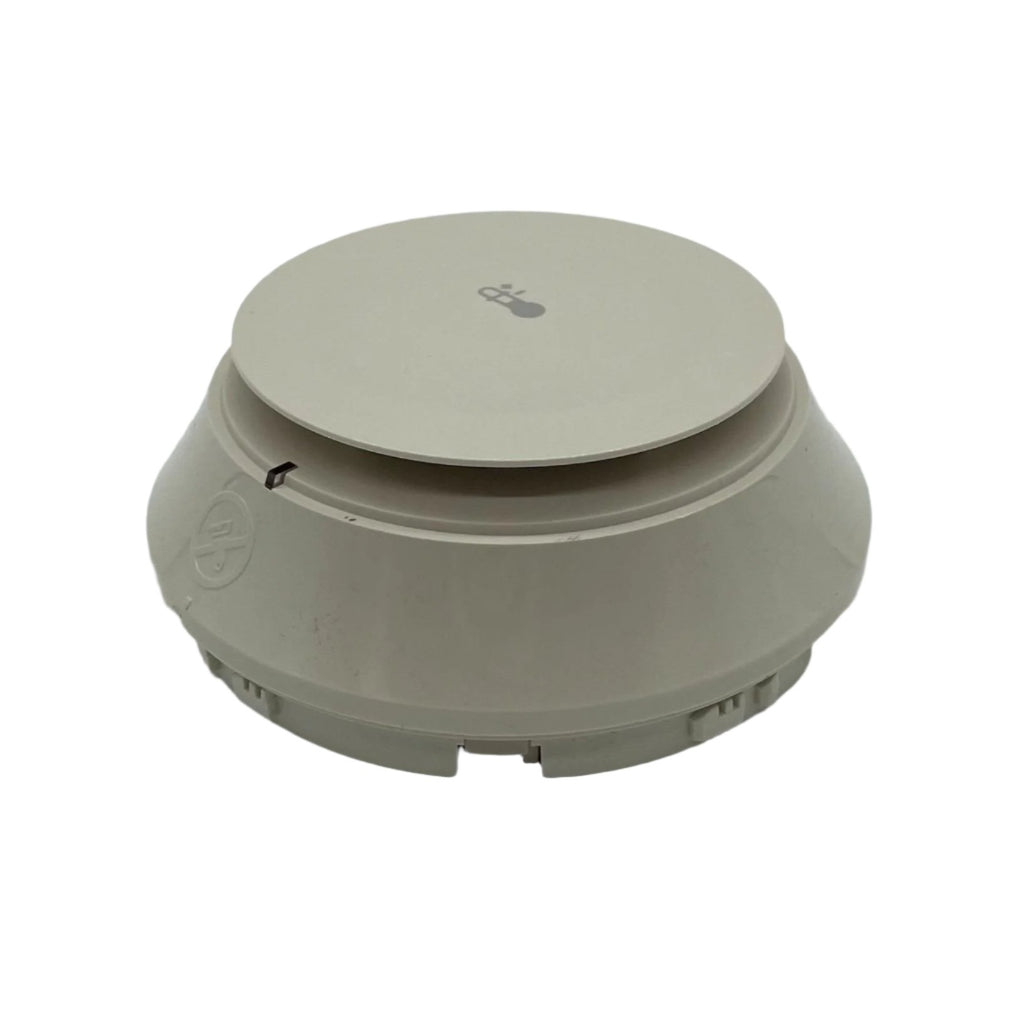

Notifier FST-951-IV — ivory low-profile intelligent 135 °F fixed-temperature thermal detector for FlashScan and CLIP loops.

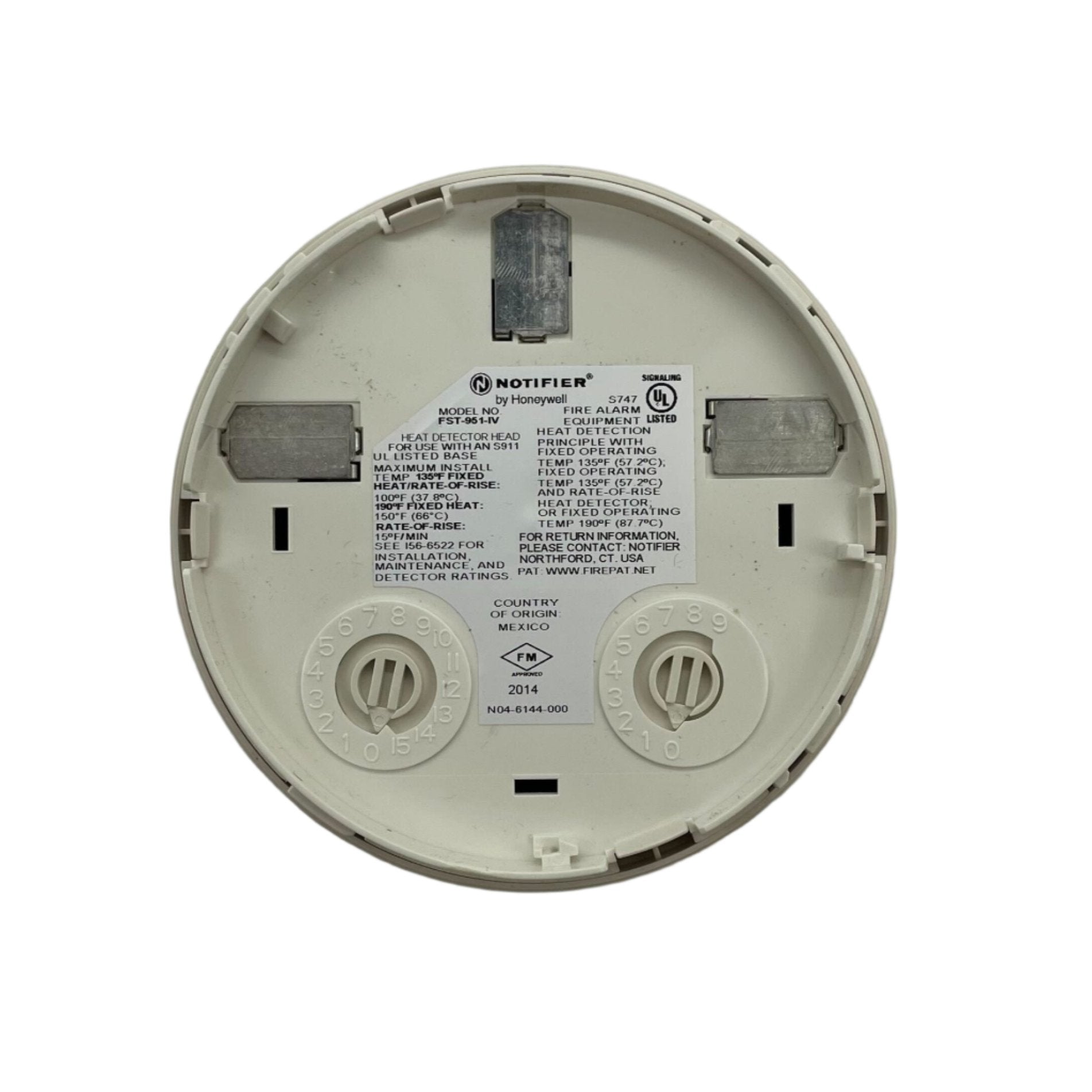

This is a heat detector, not a smoke detector. Notifier heads the series Intelligent Addressable Heat Detectors and gives this catalog number a fixed thermistor set point, with rate-of-rise and 190 °F sensing sold as separate models. The head plugs into a detachable base that carries the field wiring and takes one address on the signaling line circuit, set by rotary decimal switches.
- Fixed temperature 135 °F, factory preset; designed to meet UL 268 7th Edition
- 15 to 32 volts DC peak; standby 200 µA at 24 VDC; 4.5 mA maximum
- UL certified spacing 50 ft on center; FM approved 25 × 25 ft
- Operating range -4 °F to 100 °F, 10 to 93 percent non-condensing
- UL and ULC file S747, FM approved, CSFM 7270-0028:0502
FST-951 is the white version and runs FlashScan only; FST-951R-IV is rate-of-rise and FST-951H-IV the 190 °F model, which alone is rated to 150 °F ambient. FST-951A-IV adds ULC. Ivory bases are B300-6-IV and B501-IV.
Documents
FAQ
Is the FST-951-IV discontinued?
Yes. Its replacement is the white FST-951. Note that the data sheet lists the FST-951 as FlashScan only, while the -IV version is FlashScan and CLIP.
Is a base included?
No. The head plugs into a separate base; ivory options include the B300-6-IV 6 in. flanged base and the B501-IV 4 in. flangeless base.
Does it replace the FST-851?
Yes. NOTIFIER describes the FST-951 Series as direct replacements for the FST-851 Series.
Is an end-of-line resistor needed?
No. Because of the supervision inherent in the SLC loop, end-of-line resistors are not required.
