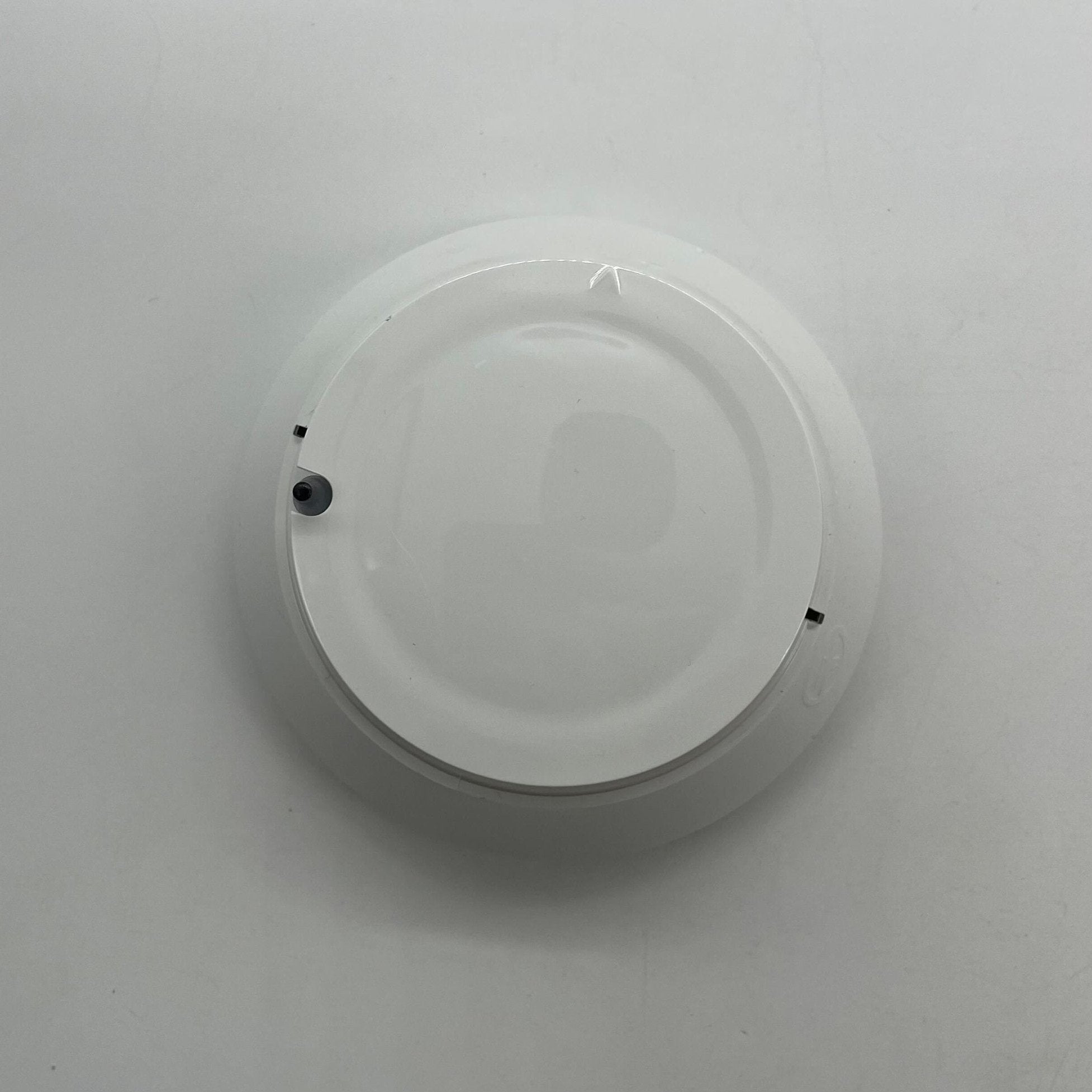

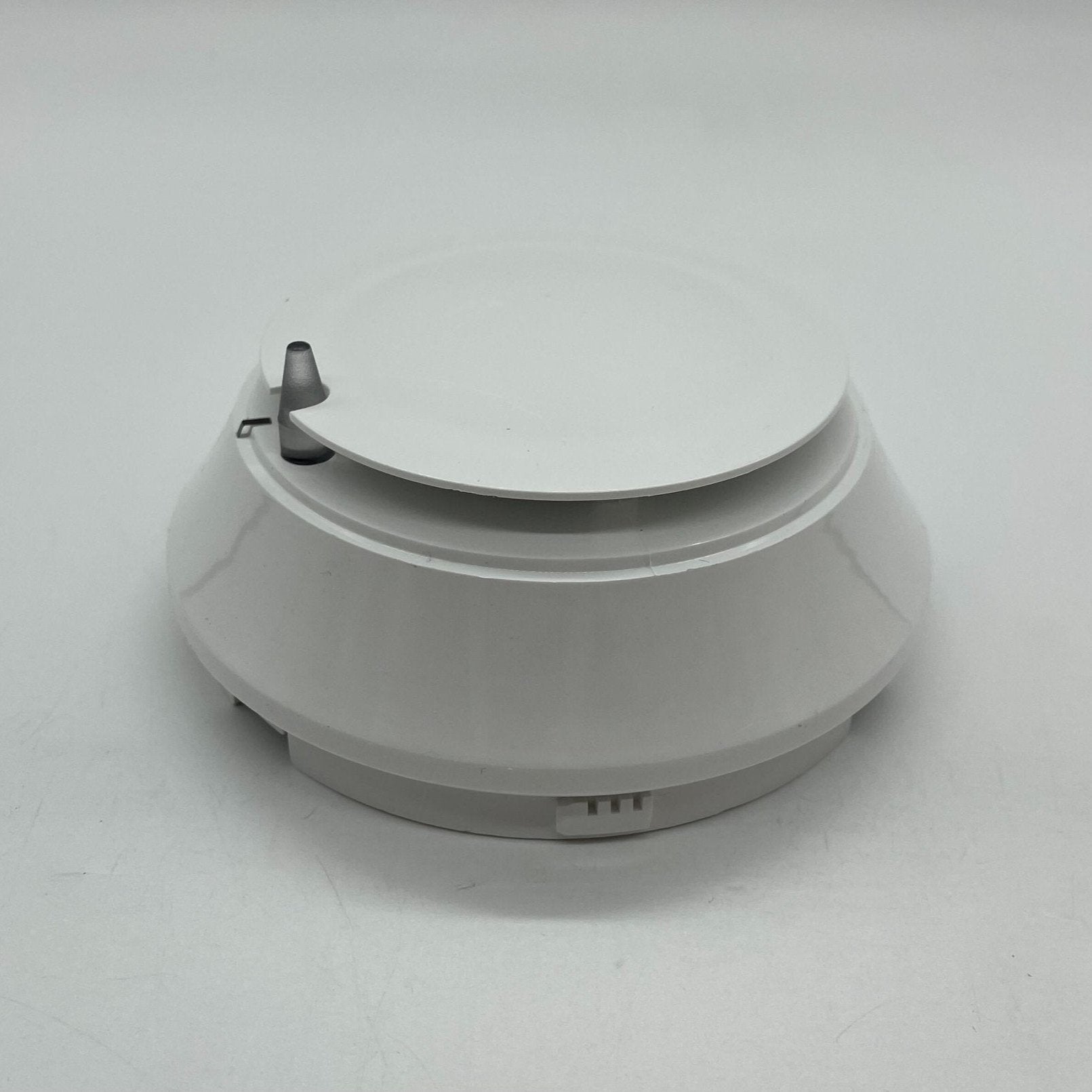

NOTIFIER FCO-951 — an IntelliQuad® PLUS plug-in addressable multi-criteria detector that combines photoelectric, thermal, carbon monoxide and infrared sensing in a single unit, providing both fire detection and separate life-safety CO detection on one SLC address.
The detector combines four separate sensing elements to sense multiple components of a fire: smoke, CO, light/flame, and heat. This approach enables enhanced sensitivity to real fire with heightened immunity to nuisance particulates. For CO, the detector’s electrochemical sensing cell creates a separate signal for life safety CO detection.
-
Photoelectric sensors detect airborne particles associated with smoke.
-
Thermal sensors detect heat and rate-of-rise (135°F fixed temperature threshold).
-
Carbon monoxide sensors detect this by-product of fire for accurate fire detection.
-
Infrared sensors discern light patterns in the environment as an additional data point for alarm determination.
This ability to reject certain nuisance alarm triggers, such as theater smoke, supports the use of the IntelliQuad PLUS Series detector in applications where moderate to heavy nuisance conditions exist that might cause single-sensing detectors to false alarm. The IntelliQuad PLUS Series detector meets both UL 268 7th edition and UL 521 listing requirements for fire detection as well as the UL 2075 standard for system-connected life safety carbon monoxide detection.

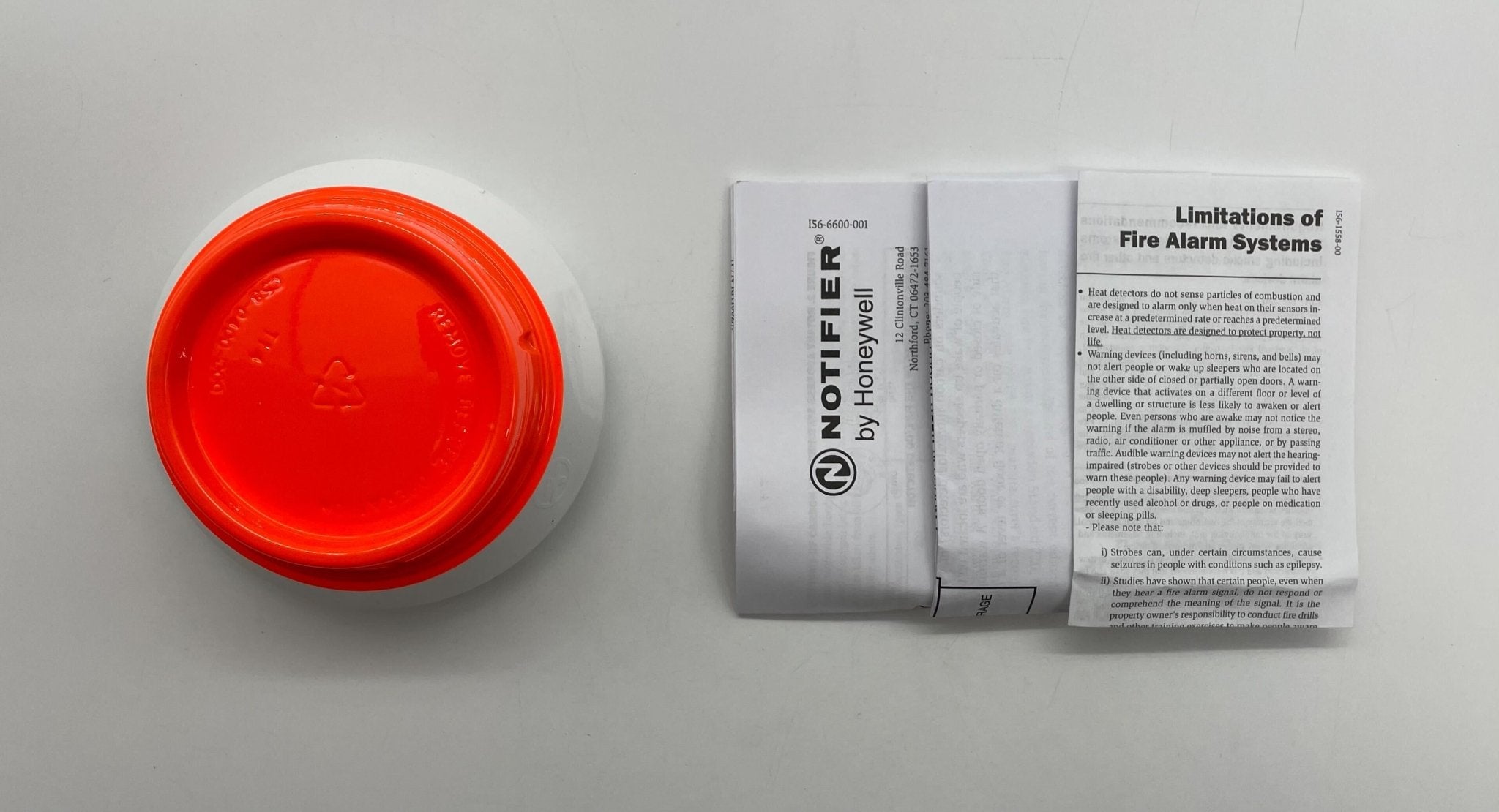

B200S series intelligent sounder bases (B200SCOA series in Canada) are recommended for use with the FCO-951 Series. These bases can generate either a Temp 3 pattern for fire or a Temp 4 pattern for CO alarm indication, and recognize the System Sensor synchronization protocol for use as a component of the general evacuation signal when connected to a power supply or FACP output capable of generating the System Sensor synchronization pulses. The detector head ships without a base — order the base separately.
Specifications
| Sensing elements |
Photoelectric, thermal, carbon monoxide (electrochemical), infrared |
| Thermal threshold |
135°F fixed temperature, plus rate-of-rise |
| Operating voltage range |
15 to 32 VDC |
| Operating current @ 24 VDC |
200 µA (one communication every 5 seconds, green LED blink on communication) |
| Maximum alarm current |
2 mA @ 24 VDC (one communication every 5 seconds, red LED solid on) |
| Maximum current |
4.5 mA @ 24 VDC (one communication every 5 seconds, amber LED solid on) |
| Isolator load rating |
0.0063 |
| Height |
2.7" (69 mm) installed in B200S series sounder base |
| Diameter |
6.875" (175 mm) installed in B200S series sounder base |
| Weight |
3.4 oz. (95 g) |
| Color |
White (-IV models are ivory) |
| Operating temperature range |
32°F to 100°F (0°C to 38°C) |
| Operating humidity range |
15% to 90% relative humidity, non-condensing |
| Air velocity |
0 to 4000 ft./min. (0 to 1219.2 m/min.) |
| CO alarm threshold — 70 ± 5 ppm |
Detector response 60–240 min. |
| CO alarm threshold — 150 ± 5 ppm |
Detector response 10–50 min. |
| CO alarm threshold — 400 ± 10 ppm |
Detector response 4–15 min. |
| UL standard |
UL 268 7th Edition |
| UL/ULC listing |
S1111 |
| CSFM |
7272-0028:0510 |
| Country of origin |
Mexico |
Installation notes
-
Base sold separately: the FCO-951 is a plug-in head. B200S series sounder bases are recommended so fire and CO can be annunciated with different tone patterns; Canadian CO applications require the B200SCOA-WH/-IV base.
-
One address, two functions: the detector uses only one address on the SLC while reporting a separate CO signal distinct from its fire alarm signal.
-
Temperature range is narrower than a photo-only detector: 32°F to 100°F (0°C to 38°C) because of the electrochemical CO cell. Do not substitute it into locations rated for the 122°F photo-only FSP-951.
-
CO cell has a service life: 10-year CO cell with end-of-life warning. Automatic drift compensation applies to both the smoke and CO sensors.
-
Isolator spacing: the isolator load rating is 0.0063, which governs how many devices may be placed between isolator modules or isolator bases.
-
Testing: RealTest® CO testing capability is supported; magnet test uses the M02-04-00 test magnet or the M02-09-00 telescoping magnet.
Related models
-
FCO-951-IV — identical detector in ivory rather than white.
-
FCO-951A — ULC-listed version for Canada (FCO-951A-IV for ivory).
-
FSP-951 — photoelectric-only intelligent detector with no CO, heat or IR sensing; use where CO detection is not required.
Specifications taken from the NOTIFIER data sheet "FCO-951 Series Advanced Multi-Criteria Fire/CO Detector," document DN-61097:A (4/24/2019). Manufacturer specifications are subject to change without notice.
