Notifier DVC-EM — Digital Voice Command, Expanded Memory: the digital audio processor, message generator and router at the heart of a Notifier audio command center.

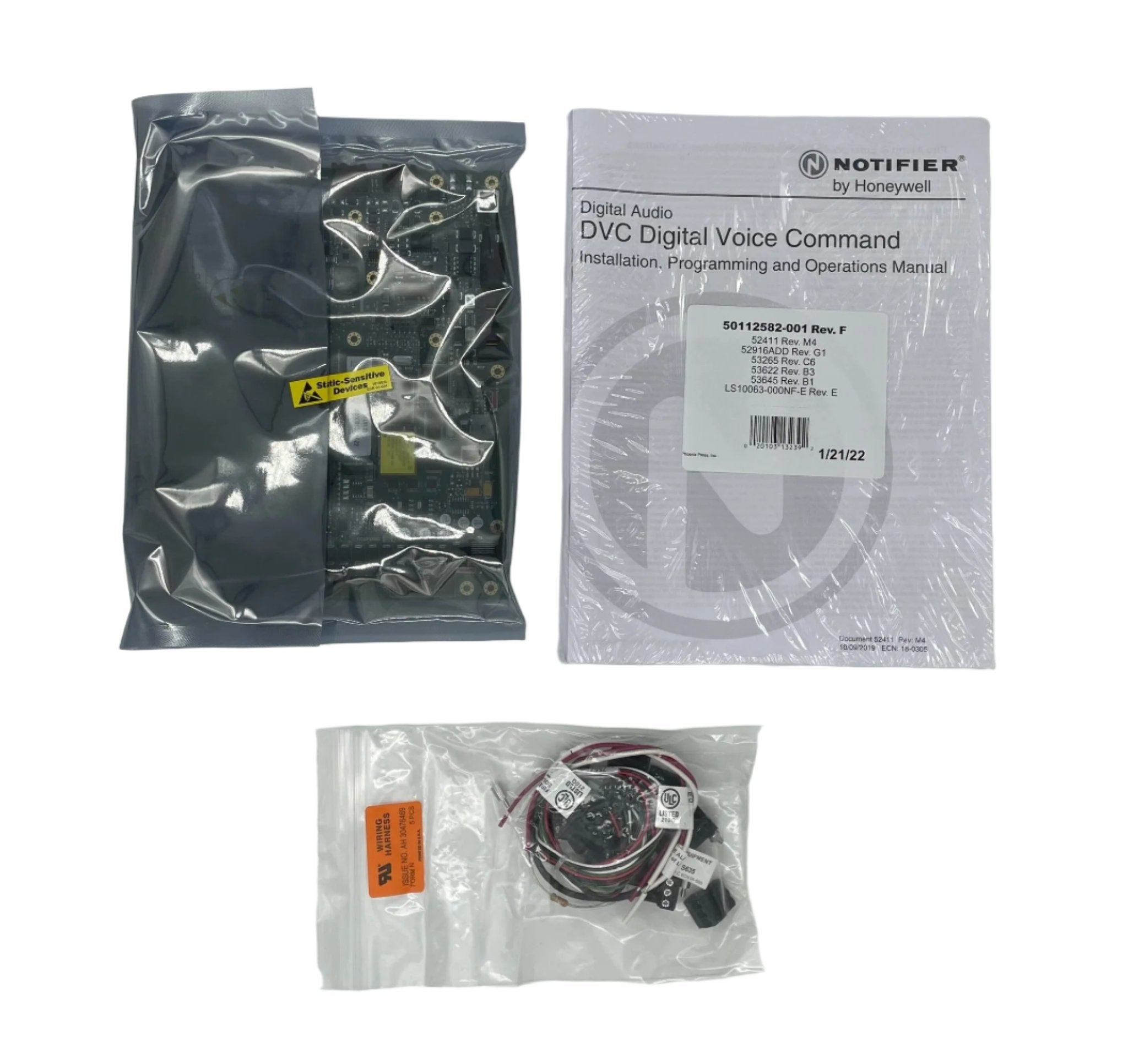

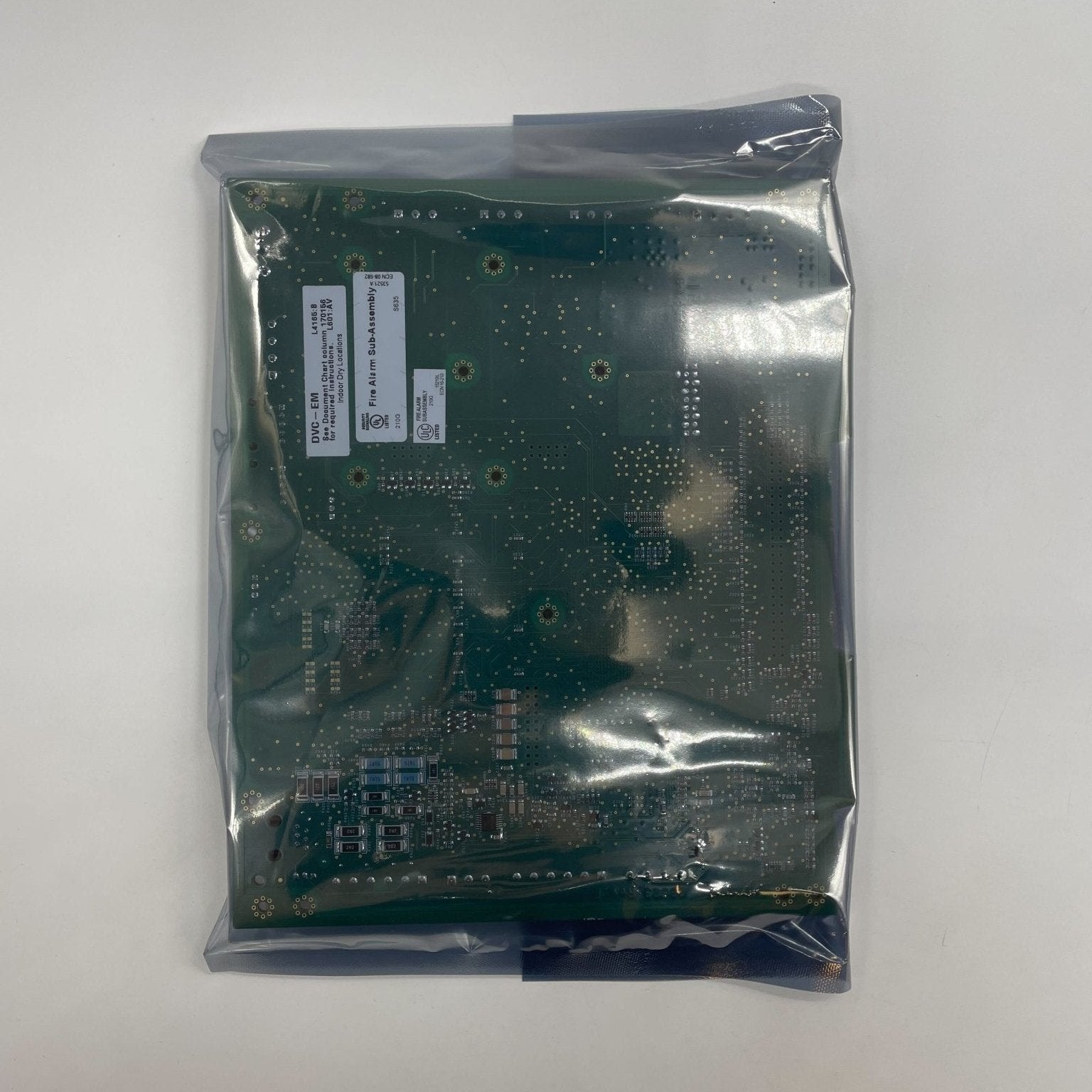

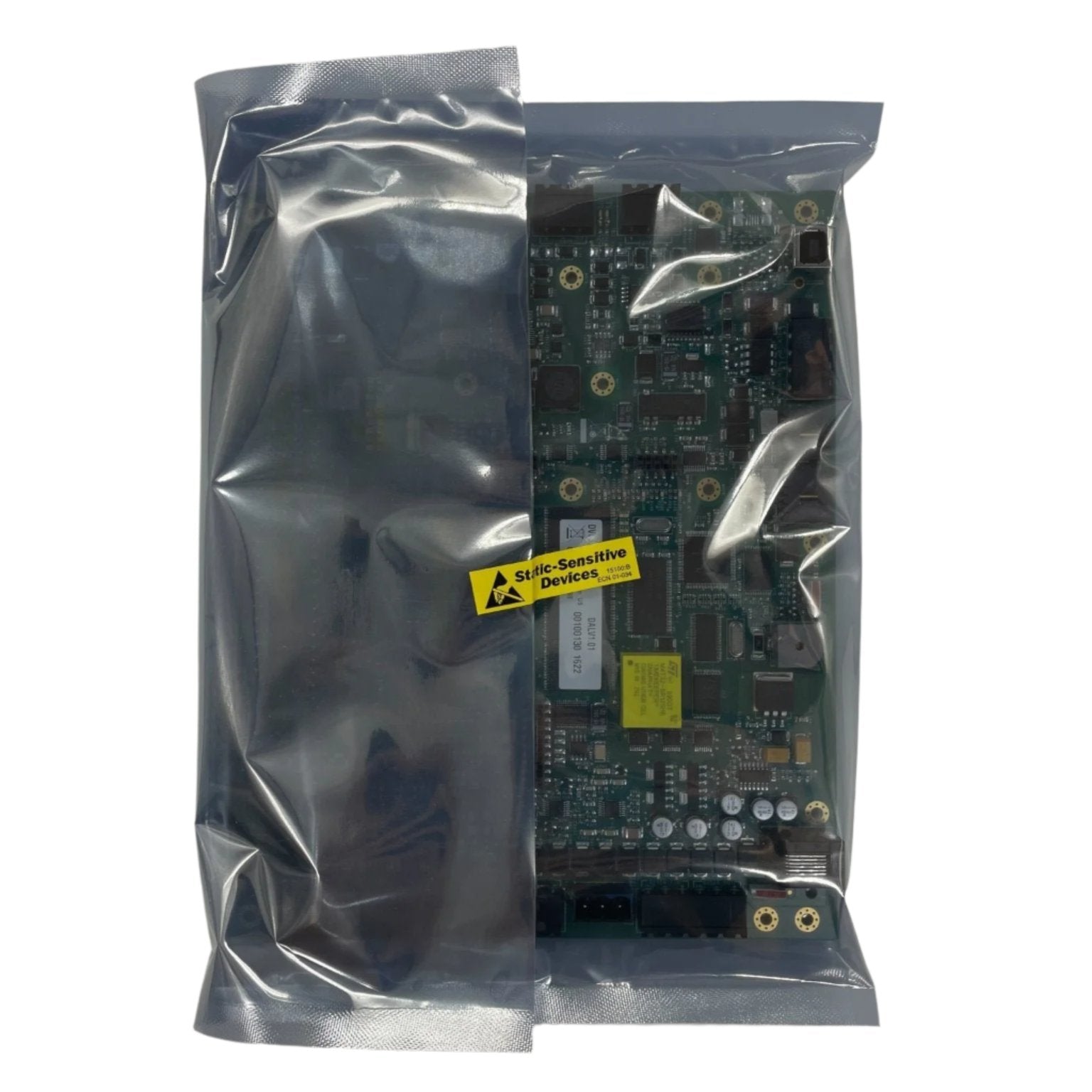

Each DVC carries up to eight audio channels, five firefighter telephone channels, and control of up to 32 Digital Audio Loop devices such as DAA2, DAX and DS-DB amplifiers. It is also the required control for a DVC-RPU. This is a board, not a finished console: chassis, cabinet, dress plate and microphone carry their own numbers.
- 24 VDC, 1.0 A, non-resettable, power-limited by the source
- 32 minutes of standard quality or 4 minutes of high quality audio; up to 1,000 sequences
- Two wire digital audio ports, 1,900 ft per segment on Belden 5320UJ 18 AWG, convertible to fiber
- Telephone riser Class A or B, 3.9 kΩ end of line (K-3.9K), 10,000 ft maximum at 12 AWG
- UL 864 9th edition, UL 2572 and ULC-S527-99; UL and ULC certified S635
A DVC-KD keypad is required where the DVC serves as an Audio Command Center with paging, and a CMIC-1 microphone on a CA-1 chassis, where the CA-2 includes one. DVC-AO adds four analog outputs for AA or XPIQ amplifiers.
Documents
FAQ
Which panels can the DVC-EM work with?
It networks with ONYX Series panels via NOTI-FIRE-NET with an NCA-2 or NFS2-3030, or connects directly to a single NFS2-640 or NFS2-3030 as a standalone audio solution.
How much message storage does it have?
Up to 32 minutes of standard quality or 4 minutes of high quality digital audio.
Is a keypad needed for paging?
Yes. The optional DVC-KD keypad display is required for paging capability.
How many Digital Audio Loop devices can it control?
Up to 32 DAL devices such as DAA2 and DAX amplifiers.
