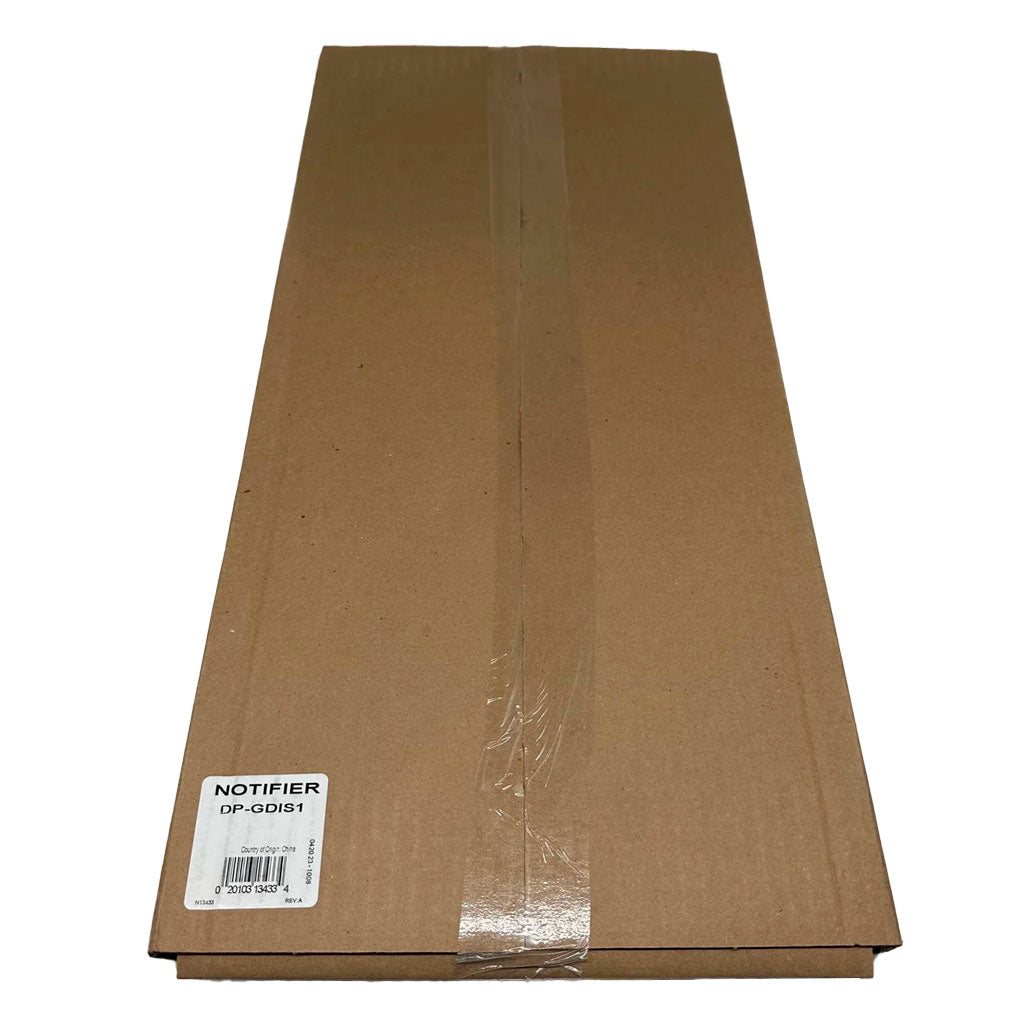

Notifier DP-GDIS1 is a graphic annunciator dress plate that mounts the 10-inch graphic display and ONYX Series annunciators in the top row of a CAB-4 Series cabinet. It gives a finished dead front around the display and annunciator modules in that row.
The 10-inch display is the Notifier NCD Network Control Display, with a 1024 x 600 touch screen, used as a network control annunciator on NOTI-FIRE-NET or as the primary display on a displayless ONYX panel. For the second, third or fourth row, Notifier offers the DP-GDIS2.
Specifications
| Type |
Graphic annunciator dress plate |
| Mounts |
10-inch graphic display and ONYX Series annunciators |
| Cabinet |
CAB-4 Series, top row |
Related models
- DP-GDIS2: same plate for rows 2, 3 or 4
- NCD: Network Control Display with 10-inch touch screen
- DP-DISP: top-row dress panel for CPU2-3030D or NCA-2
Documents
FAQ
What does the DP-GDIS1 mount?
The 10-inch graphic display and ONYX Series annunciators in the top row of a CAB-4 Series cabinet.
Which display uses the 10-inch screen?
The Notifier NCD Network Control Display has a 1024 x 600 10-inch touch screen.
What if the display goes in a lower row?
Use the DP-GDIS2, which mounts the 10-inch graphic display and ONYX annunciators in the second, third or fourth row of a CAB-4 cabinet.
