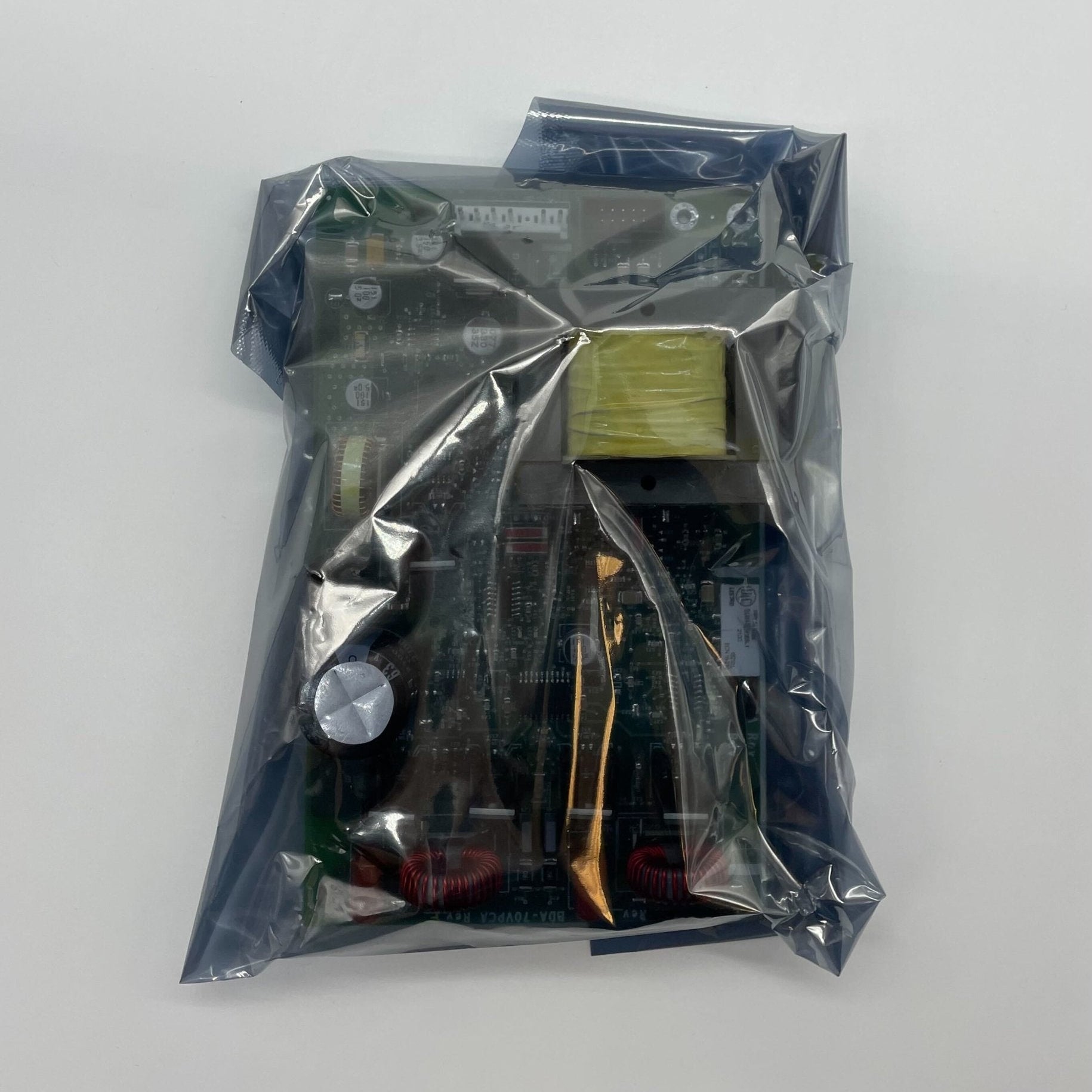

Notifier BDA-70V is a backup digital amplifier with a 70 VRMS output and switch settings for 50 W or 35 W operation. It mounts on a DAA2-50 or DAA2-75 series digital audio amplifier, where it can provide one-to-one backup for that amplifier or, when programmed as a primary amplifier, a second audio channel.
Notifier lists three configurations for an optional BDA: a backup amplifier for one-to-one backup on all DAA2 models, a primary amplifier for two-channel operation on all DAA2 models, and a primary amplifier that raises output to 100 W for one- or two-channel operation on the DAA2-50 series only, where configuration rules apply. The 70 V BDA-70V pairs with 70 VRMS DAA2 amplifiers; the BDA-25V is the 25 VRMS version.
Specifications
| Model |
BDA-70V backup digital amplifier |
| Output |
70 VRMS |
| Power settings |
50 W or 35 W, switch selected |
| Host amplifier |
DAA2-50 or DAA2-75 series |
| Uses |
One-to-one backup, second audio channel, or 100 W output (DAA2-50 only) |
Installation notes

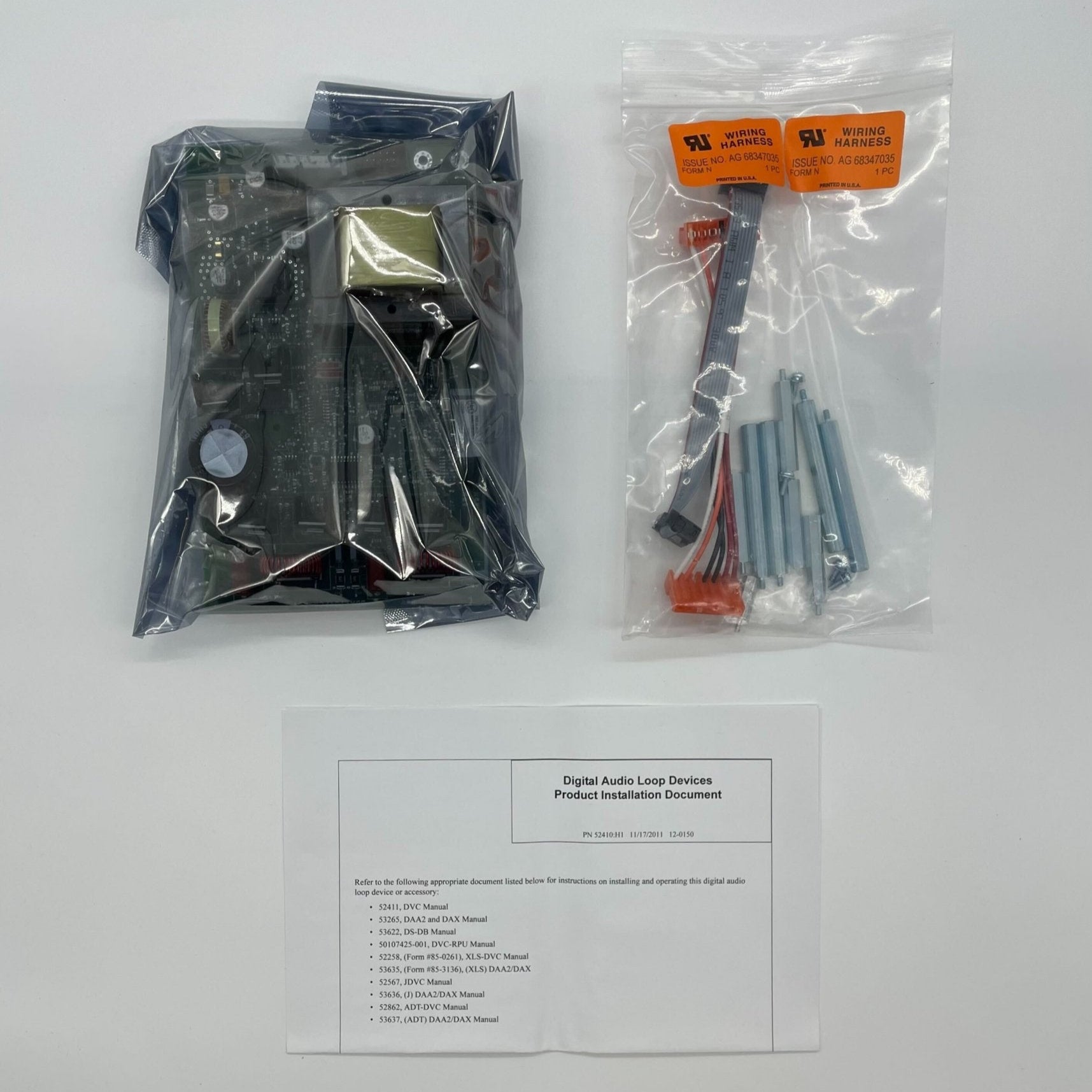

- Mount the BDA on the host DAA2 amplifier
- Set the 50 W or 35 W operation with the switches on the BDA
- Program the BDA as backup or primary in the system programming
- Follow the DAA2 configuration rules when using the 100 W option
Related models
- BDA-25V: 25 VRMS backup digital amplifier
- DAA2-5070 and DAA2-5025: 50 W digital audio amplifiers
- DAA2-7525: 75 W digital audio amplifier
Documents
FAQ
What does the BDA-70V do?
It is a backup digital amplifier for DAA2-50 and DAA2-75 series amplifiers. It can back up the host one-to-one, or, programmed as a primary amplifier, provide a second audio channel.
Which power settings does it have?
Switch settings for 50 W and 35 W operation at 70 VRMS.
Can it increase amplifier output?
On DAA2-50 series amplifiers only, a BDA used as a primary amplifier can raise output to 100 W for one- or two-channel operation, subject to configuration rules.
What is the 25 V version?
The BDA-25V, with switch settings for 75, 50 and 35 W operation.
