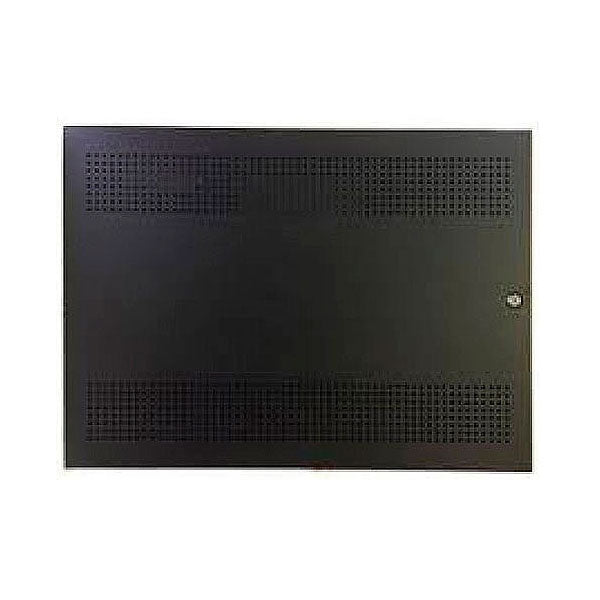

Notifier BB-100 — backbox for batteries and power supplies, sized for up to two 100 AH batteries.
A large addressable panel often needs more standby battery capacity than its own cabinet can hold. The BB-100 is the enclosure that takes the battery pair out of the control cabinet, leaving room beside them for a power supply where the design calls for one and keeping the panel enclosure free for control and peripheral modules.
- Mounts up to two 100 AH batteries
- Space for a power supply alongside the batteries, if needed
- 30" (76.20 cm) wide × 25" (63.50 cm) high × 7.5" (19.05 cm) deep
- Quoted depth includes the door
- Listed by Notifier as an accessory to the NFS2-3030 intelligent addressable fire alarm control panel
Check the height before ordering: BB-200 is the same 30 in. width and 7.5 in. depth but 36 in. high, and holds four 100 AH batteries for 200 AH of capacity. NFS-LBB is a much smaller battery box for two 55 AH batteries, and BB-UZC is a backbox for a UZC-256 rather than for batteries at all.
Documents
FAQ
What fits in the BB-100?
A power supply and up to two BAT-12100 100AH batteries. The BB-200 holds up to four.
Where should it be mounted?
At least 6 in. (15.24 cm) below the fire alarm control panel.
How heavy is it when loaded?
A fully loaded BB-100 exceeds 175 pounds, so additional wall support may be required.
Does it come assembled?
Yes. The cabinet is lockable, hinged on the left and shipped fully assembled.
