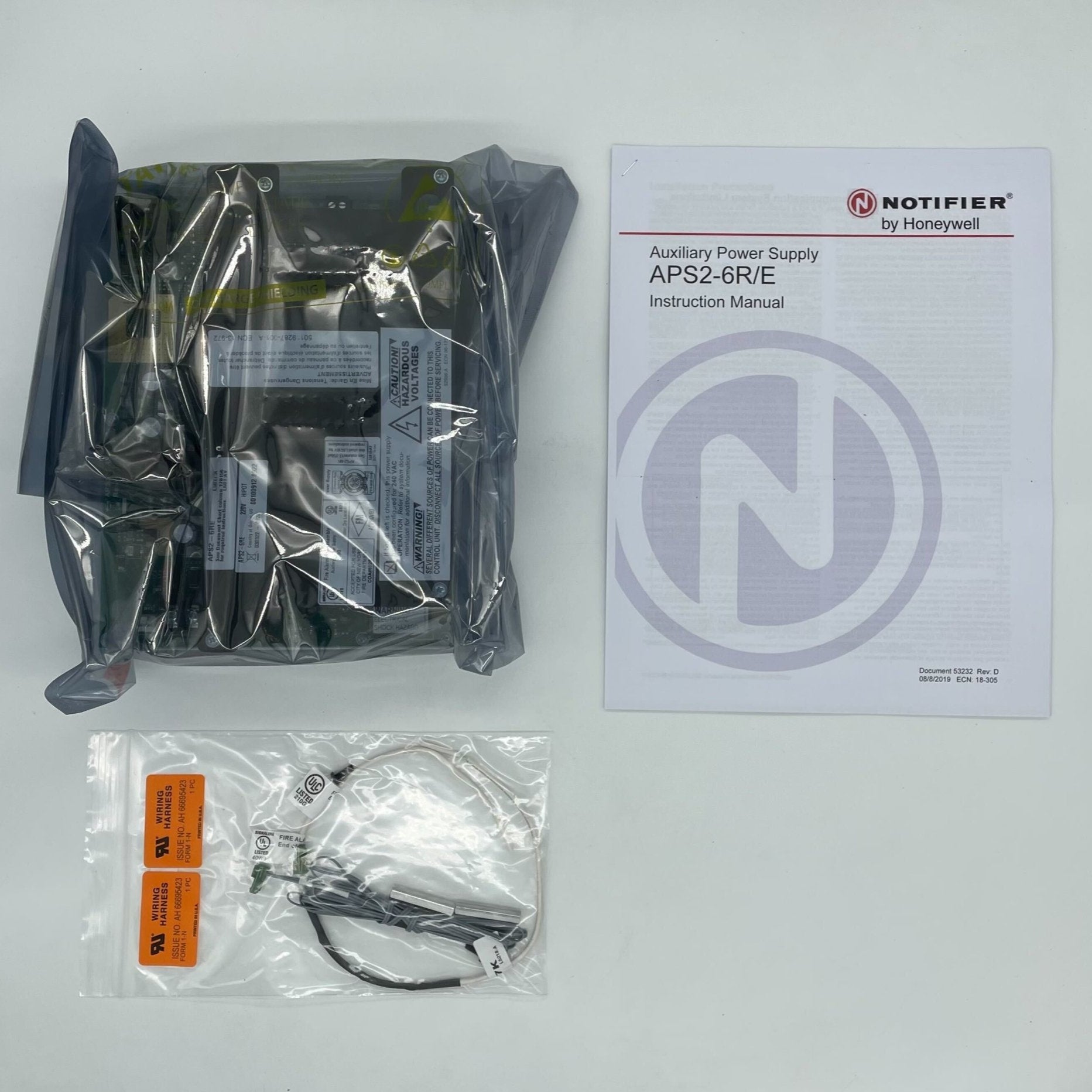

Notifier APS2-6RE is the 220-240 VAC version of the APS2-6R auxiliary power supply, a 150 watt switching supply providing filtered 24 VDC for notification appliances and other peripheral devices on Notifier ONYX Series control panels. It has three 24 VDC output circuits rated 6.0 A total in alarm and 4.0 A continuous, and shares the battery and charger of the control panel.
Specifications
| AC input |
220-240 VAC, 50/60 Hz, 1.5 A maximum |
| Total 24 VDC output |
6.0 A in alarm, 4.0 A continuous |
| Power-limited outputs (TB2) |
Two Class B circuits, 3.0 A each at 24 VDC (20 to 26.39 V) |
| Non-power-limited output (J9) |
One output, 6.0 A (4.0 A continuous) |
| Battery input standby current |
41 mA DC |
| AC loss reporting |
Immediate (default), or delayed 1-2 h or 2-3 h by jumper |
| Trouble outputs |
Trouble supervision bus (Form A); relay contacts for AC fail |
| Terminals |
Clamp type, up to 12 AWG |
| Size and weight |
Approx. 8.625 x 6.625 x 2.375 in. (21.91 x 16.83 x 6.03 cm); approx. 2 lb (0.91 kg) |
| Listings (APS2-6R) |
UL/ULC S635; FM approved; CSFM 7315-0028:248; FDNY COA #6028 |
Compatibility and installation notes
- Mounts on a CHS-4 or CHS-4L chassis in a CAB-3 or CAB-4 Series cabinet.
- There is no battery charger on board: batteries are charged by the system power supply and must be in the same or a closely coupled cabinet within 20 ft, in the same room.
- The APS2-6RE is not suitable for releasing applications.
- The power-limited outputs are supervised by a listed end-of-line power supervision relay; the product line includes the EOLR-1 12/24 VDC end-of-line relay.
- Use only signaling appliances listed for the control system (Device Compatibility Document 15378).
Related models
Documents
Specifications from Notifier data sheet DN-60410:D (2/7/19) and APS2-6R/E instruction manual 53232:D (08/2019). Manufacturer specifications are subject to change.
