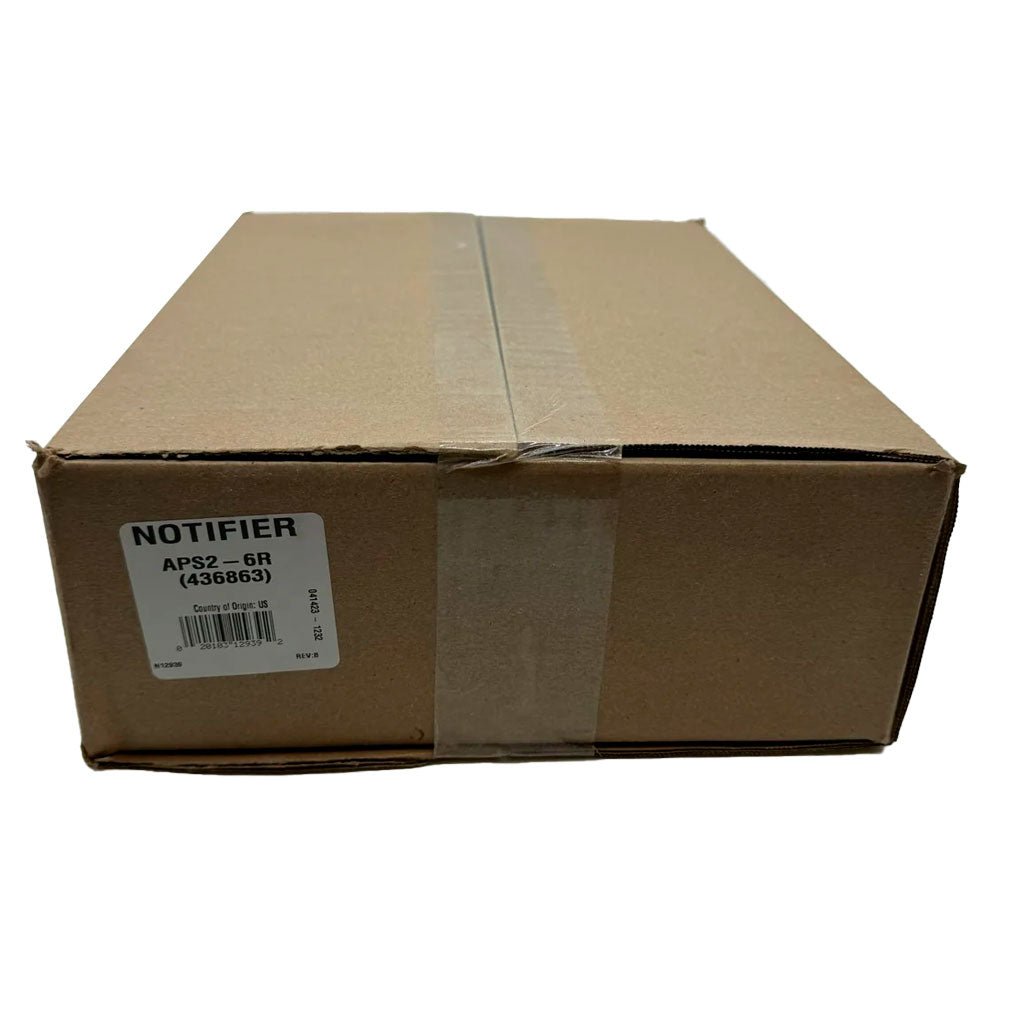

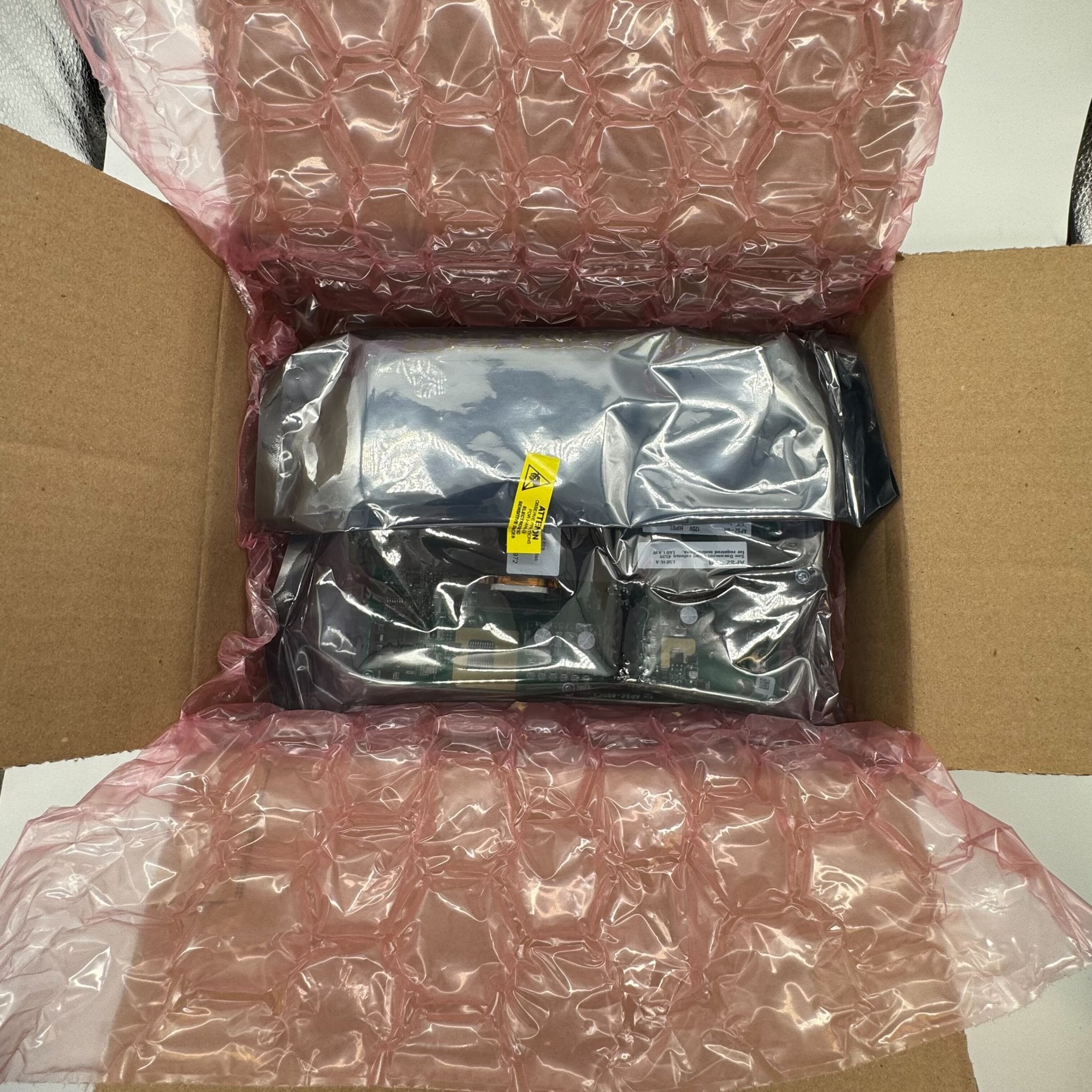

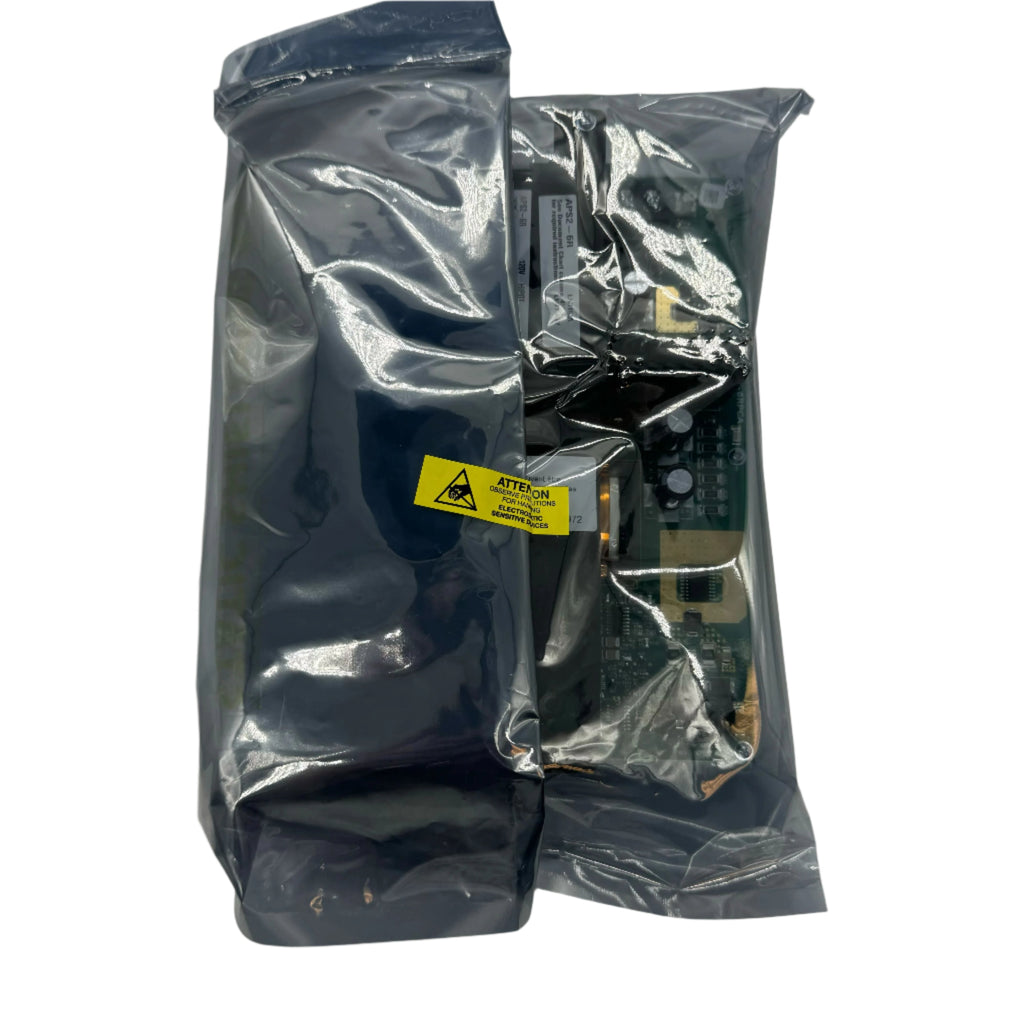

Notifier APS2-6R (436863) 150-Watt, switching auxiliary power supply providing 24 VDC of filtered DC power
The APS2-6R provides three 24 VDC output circuits, rated for 6.0 Amps in alarm and 4.0 Amps continuous.
It operates peripheral audible/visual devices (alarm signaling appliances) for the Onyx Series control panels. The APS2-6R can also be used with Legacy panels. Please refer to the APS2-6R manual for more information.
Features
• UL 864 Ninth Edition compliant.
• Lightweight, compact design.
• 120 or 220/240 VAC (@ 50/60 Hz) versions.
• Output circuits with overload protection.
• Built-in “brown-out” circuitry.
• Diagnostic trouble LED.
• Plug-in connector for in-cabinet applications and screw terminals for remote device applications.
• Trouble supervision bus.
• Shares battery and charger circuit with control panel.
• Power-limited design, per UL requirements.
• AC Fail supervision and reporting with field-selectable delay per UL 864.
• Heavy-duty clamp-type terminals accept up to 12 AWG (3.1 mm²) wire.
• Battery voltage supervision.
• Low battery disconnect.
• Mounts in a standard CAB-3/XLS-ADT-CAB-4 Series cabinet.
Documents
FAQ
What is the difference between APS2-6R and APS2-6RE?
The APS2-6R takes 120 VAC, 50/60 Hz at 2.9 A; the APS2-6RE takes 220-240 VAC at 1.5 A.
How does it mount?
In a CAB-3/XLS-ADT-CAB-4 Series cabinet on a CHS-4 or CHS-4L chassis.
Does it need its own batteries?
No. It shares the battery and charger circuit with the control panel.
What output does it provide?
24 VDC filtered power, 6.0 A in alarm and 4.0 A continuous, with two 3.0 A power-limited circuits.
