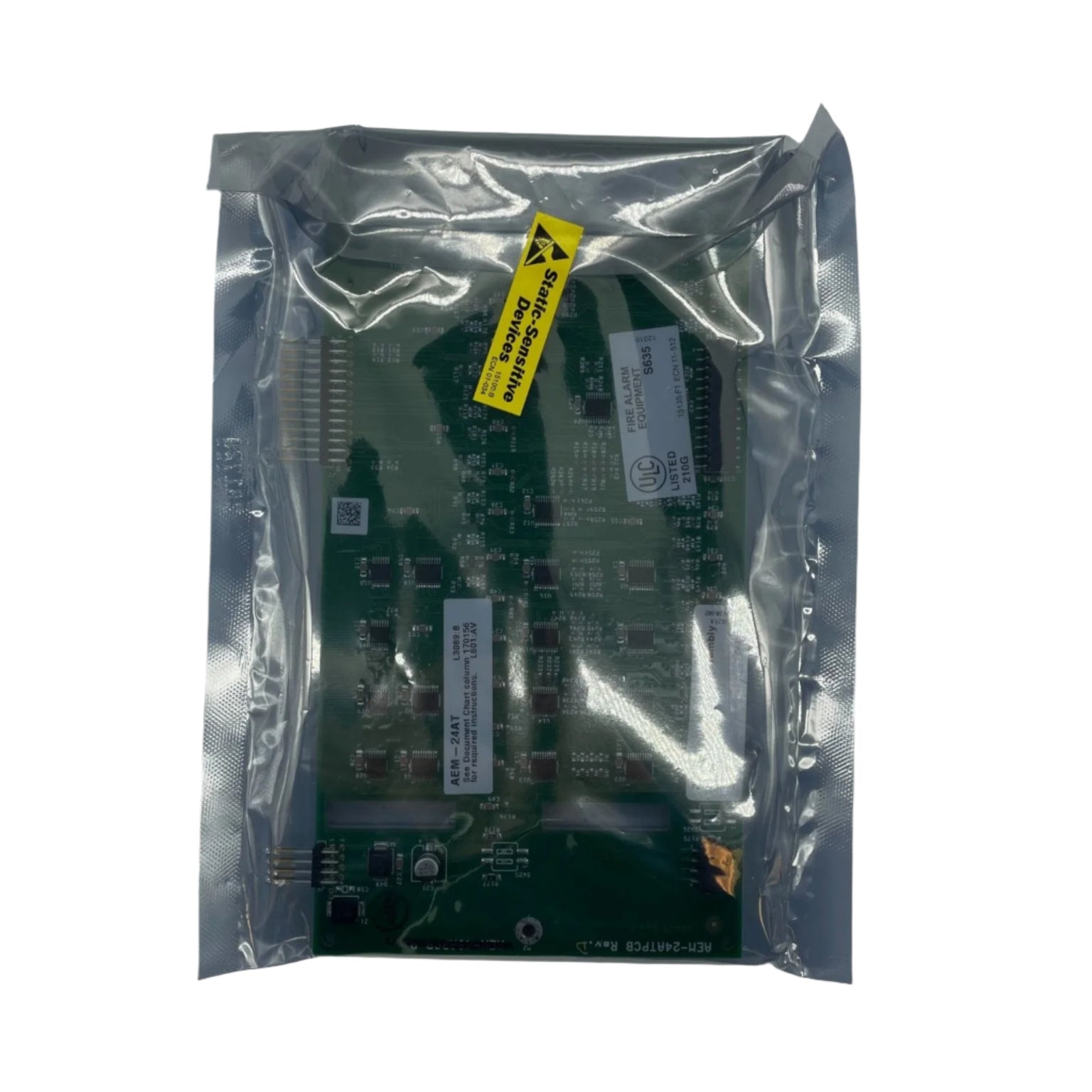

Notifier AEM-24AT is the Annunciator Expander Module-24AT for ONYX Series ACS annunciators. It expands an ACM-24AT annunciator control module by 24 system points and is identical in size and frontal appearance to the ACM-24AT.
Up to three AEM-24AT expanders can be supported by one ACM-24AT, for a maximum of 96 system points. The ACS annunciator system lets a Notifier panel support up to 32 remote serially connected annunciators.
Specifications
| Points |
24 per module |
| Host module |
ACM-24AT |
| Maximum per ACM-24AT |
3 expanders, 96 points total |
| Size |
8.375 in. high x 4.375 in. wide |
Installation notes
- The AEM-24AT cannot be used to expand the ACM-48A
- Annunciators mount in ABS series surface backboxes or other standard backboxes
- Field wiring uses removable compression-type terminal blocks
Related models
- ACM-24AT: 24-point annunciator control module (required host)
- AEM-48A: expander for the ACM-48A
Documents
FAQ
What does the AEM-24AT work with?
It expands the ACM-24AT annunciator control module by 24 points. It cannot be used to expand the ACM-48A.
How many expanders can one ACM-24AT take?
Up to three AEM-24AT modules, for a maximum of 96 system points.
What does it look like?
It is identical in size and frontal appearance to the ACM-24AT, 8.375 in. high by 4.375 in. wide.
