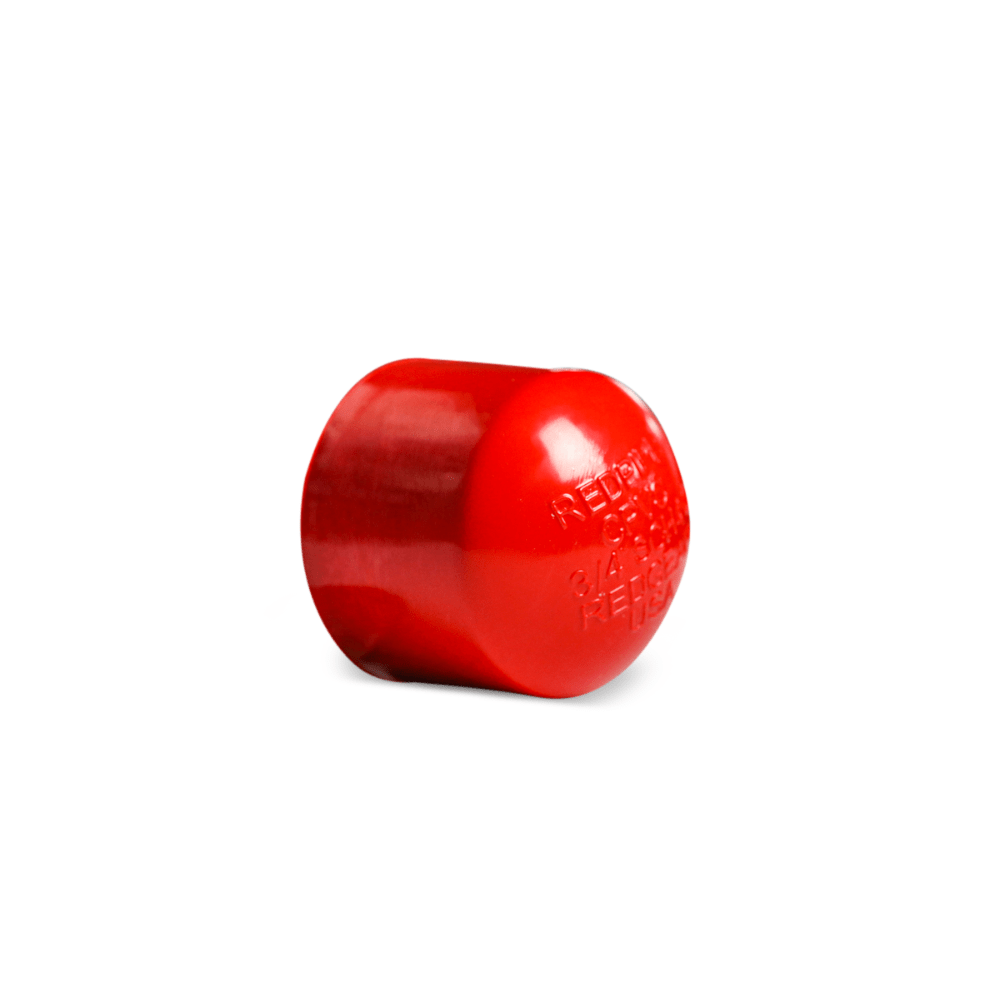

ModuLaser RP5205X — 3/4" CPVC socket end cap for aspirating smoke detection sampling pipe, supplied ten to a pack.
Every sampling pipe run in an air sampling network must be closed at its far end, so the aspirator draws a calculated airflow through the sample holes rather than an open pipe mouth. This end cap solvent welds onto a 3/4" SCH-40 red CPVC run to make that termination. It is manufactured as RedPipe by Safe Fire Detection and carries the RP5205X number in the ModuLaser fittings range.
- 3/4" SCH-40 CPVC socket end cap, solvent weld
- Pipe system inside diameter 0.874" (22.1 mm)
- Supplied ten fittings per pack
- Plenum rated; flammability V-2, NFPA 90A
- Operational temperature –40°F to 201°F (–40°C to 93°C)
- Installation temperature 0°F to 201°F (–17°C to 93°C)
- UL Listed for air sampling smoke detection systems
The rest of the socket range is packaged identically and differs only in the last digits: RP5206X is the coupling, RP5204X the tee, RP5202X the 90° elbow, RP5203X the 45° elbow and RP5208 the union. Only RP5205X closes a run.
