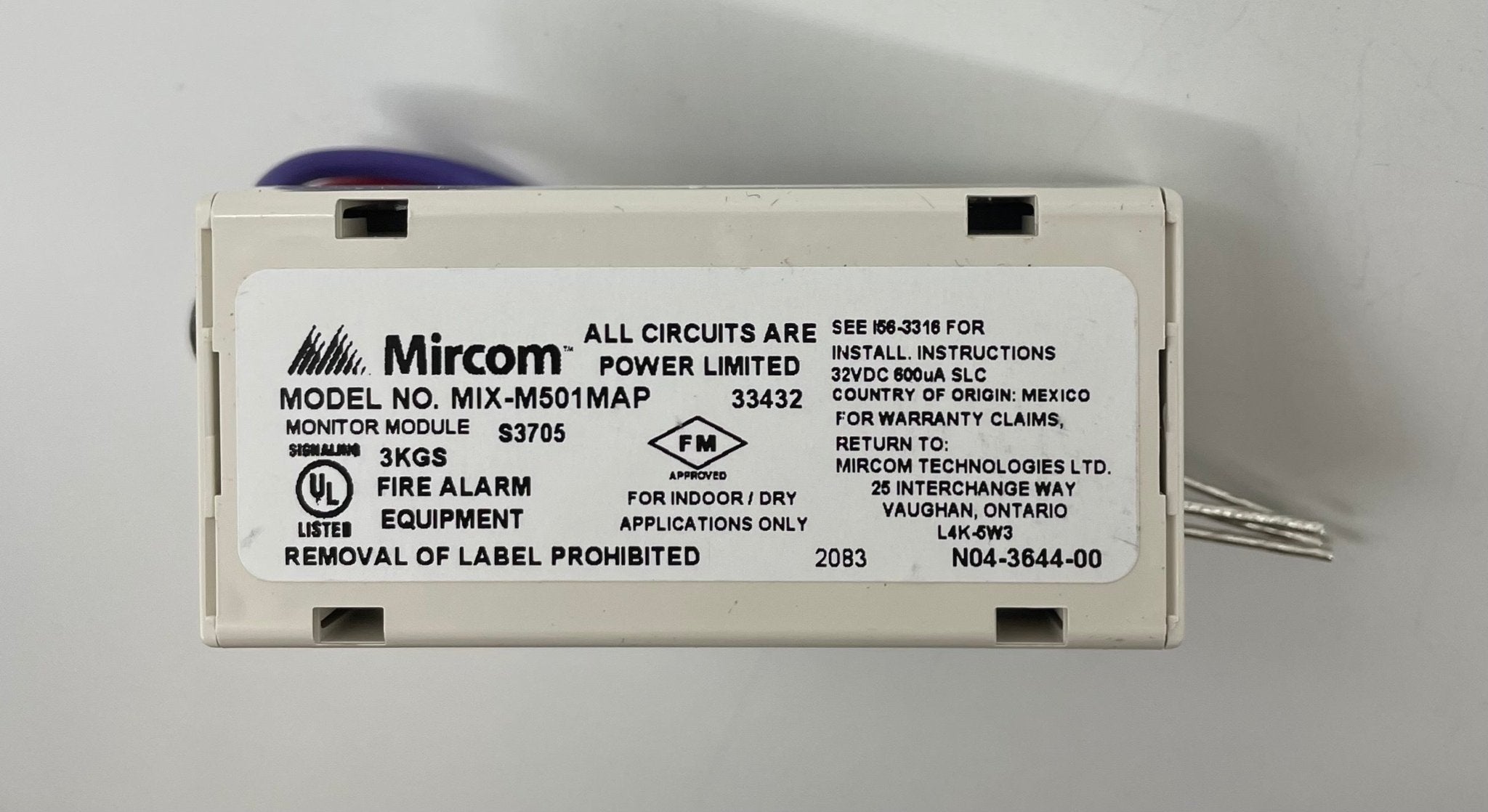

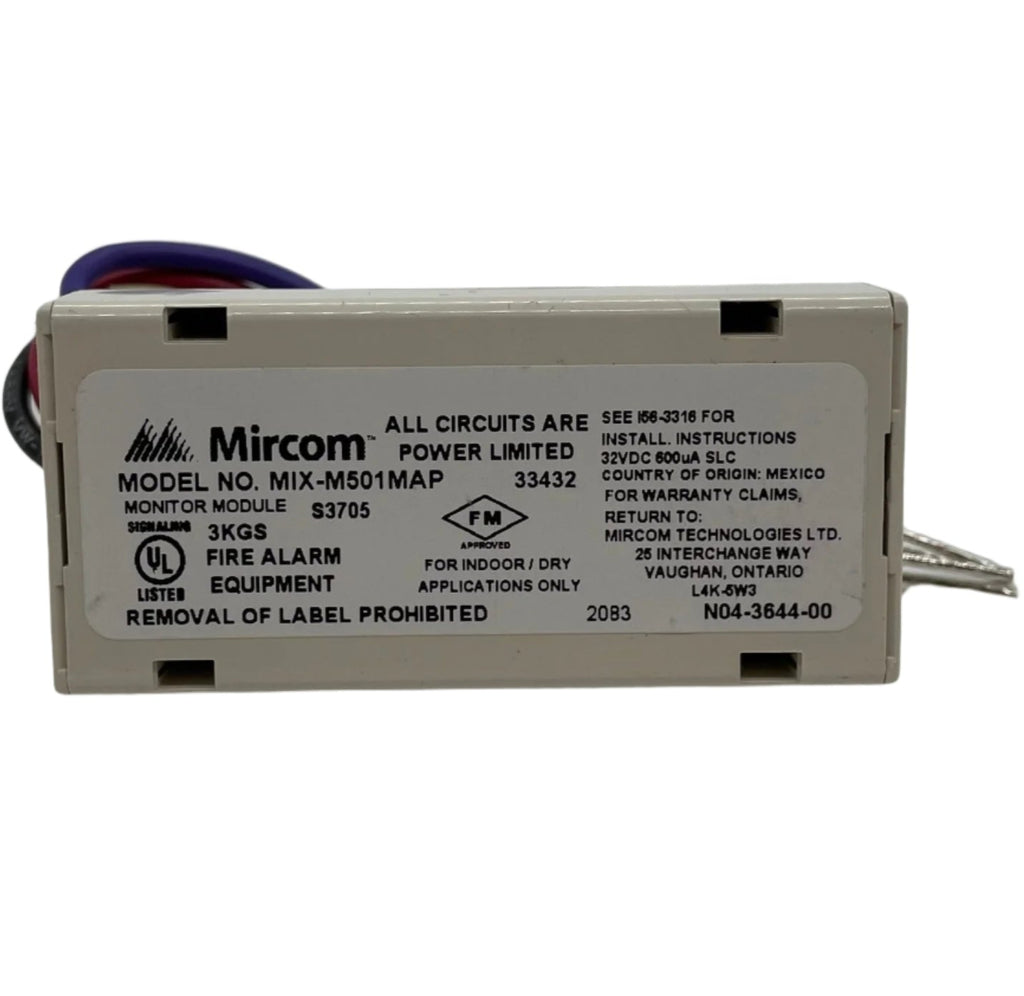

Mircom MIX-M501MAP — intelligent addressable mini monitor module supervising one Class B circuit of normally open dry-contact devices.
Where a standard module needs a box of its own, this one is small and light enough to sit inside the device it monitors or the junction box behind it, without rigid mounting. It presents a supervised two-wire initiating circuit to contacts such as waterflow and tamper switches, and reports their state under its own address, so one point identifies which contact operated.
- Normally open contacts only, Class B (Style B); 47 kΩ end-of-line supplied
- 15 to 32 VDC; 400 µA average, one communication every five seconds
- Maximum alarm current 600 µA
- Circuit limits of 40 Ω, 11 V and 400 µA
- Rotary decade switches, 01 to 159 in Advanced Protocol, 01 to 99 in CLIP
- 1.3" × 2.75" × 0.65"
MIX-M500MAP is the standard-size monitor module and not a drop-in equivalent: it fits a 4 in square box, supervises Class A or Class B, and carries a panel-controlled status LED this mini omits. MIX-M502MAP is a zone interface for two-wire detectors; MIX-M500X is the loop isolator.
Documents
FAQ
Does it need a dedicated back box?
No. Mircom states it can be installed in a single-gang junction box directly behind the monitored unit, and its small size allows it to be mounted without rigid mounting.
Is the end-of-line resistor included?
Yes. A 47k ohm EOL resistor (ELR-47k) is included.

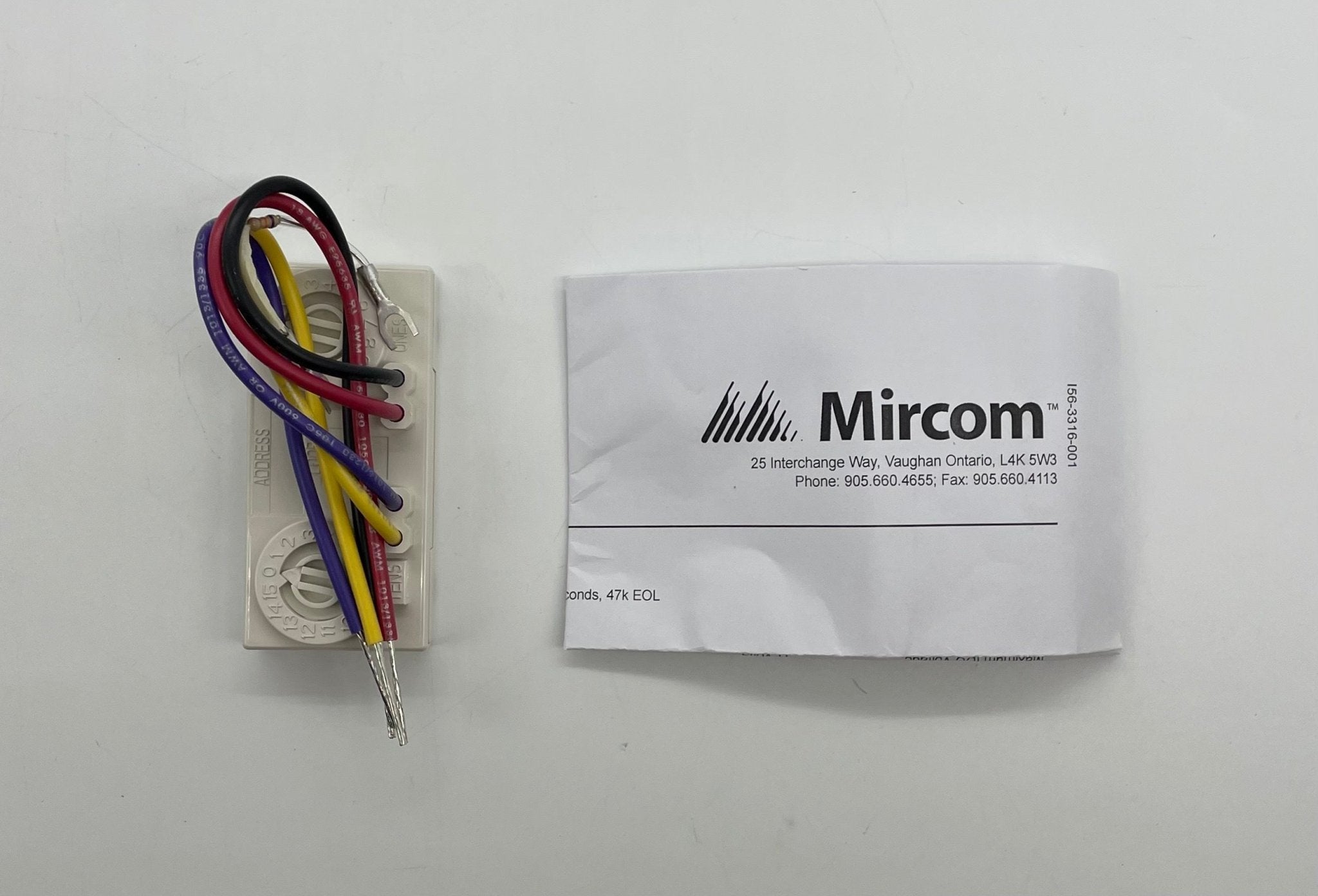

How is it wired?

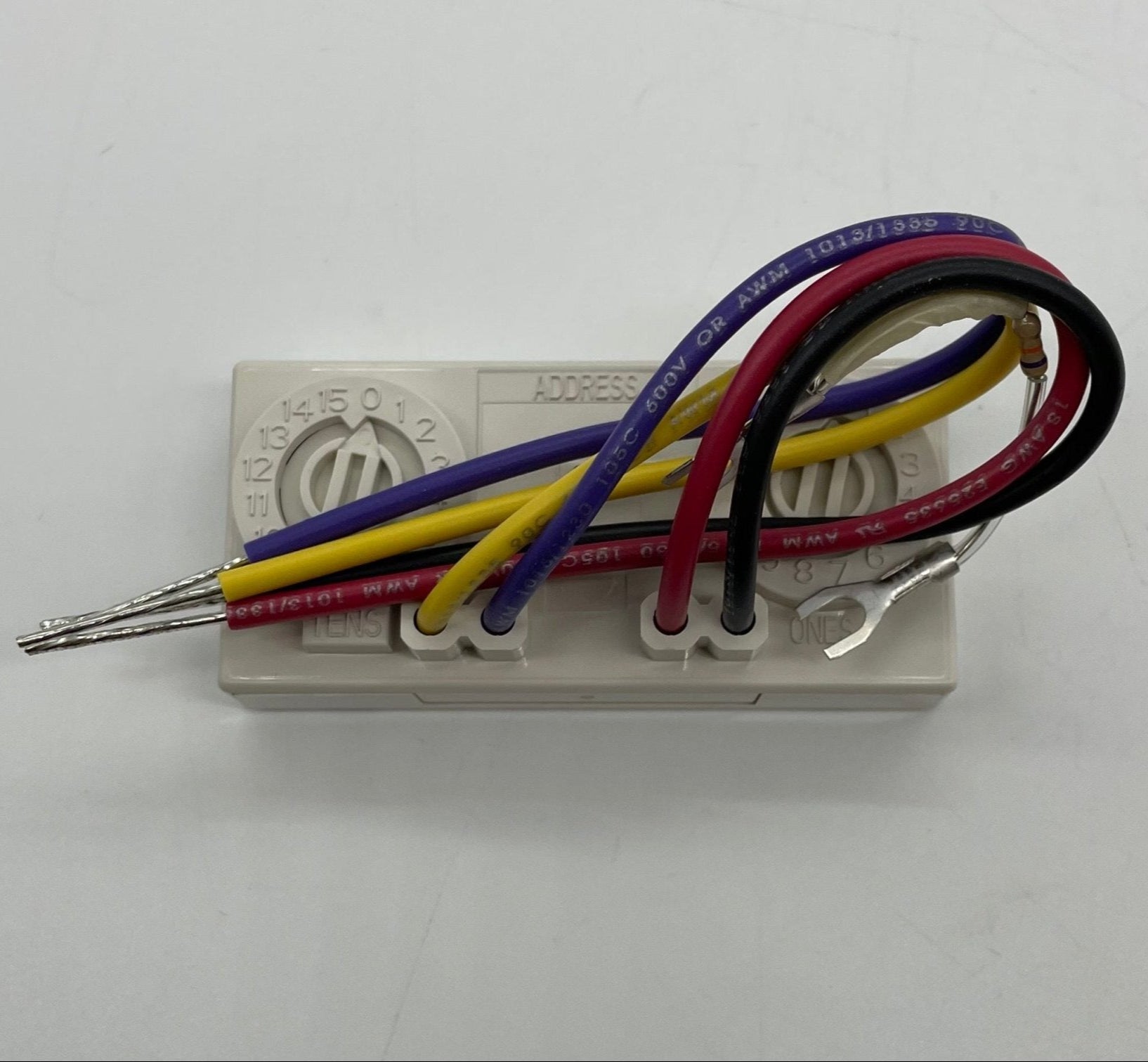

Red (+) and black (–) leads go to the SLC; violet (+) and yellow (–) leads go to the two-wire, normally open initiating loop.
Can it supervise a Class A circuit?
No. It supervises a two-wire Style B (Class B) initiating circuit only.
