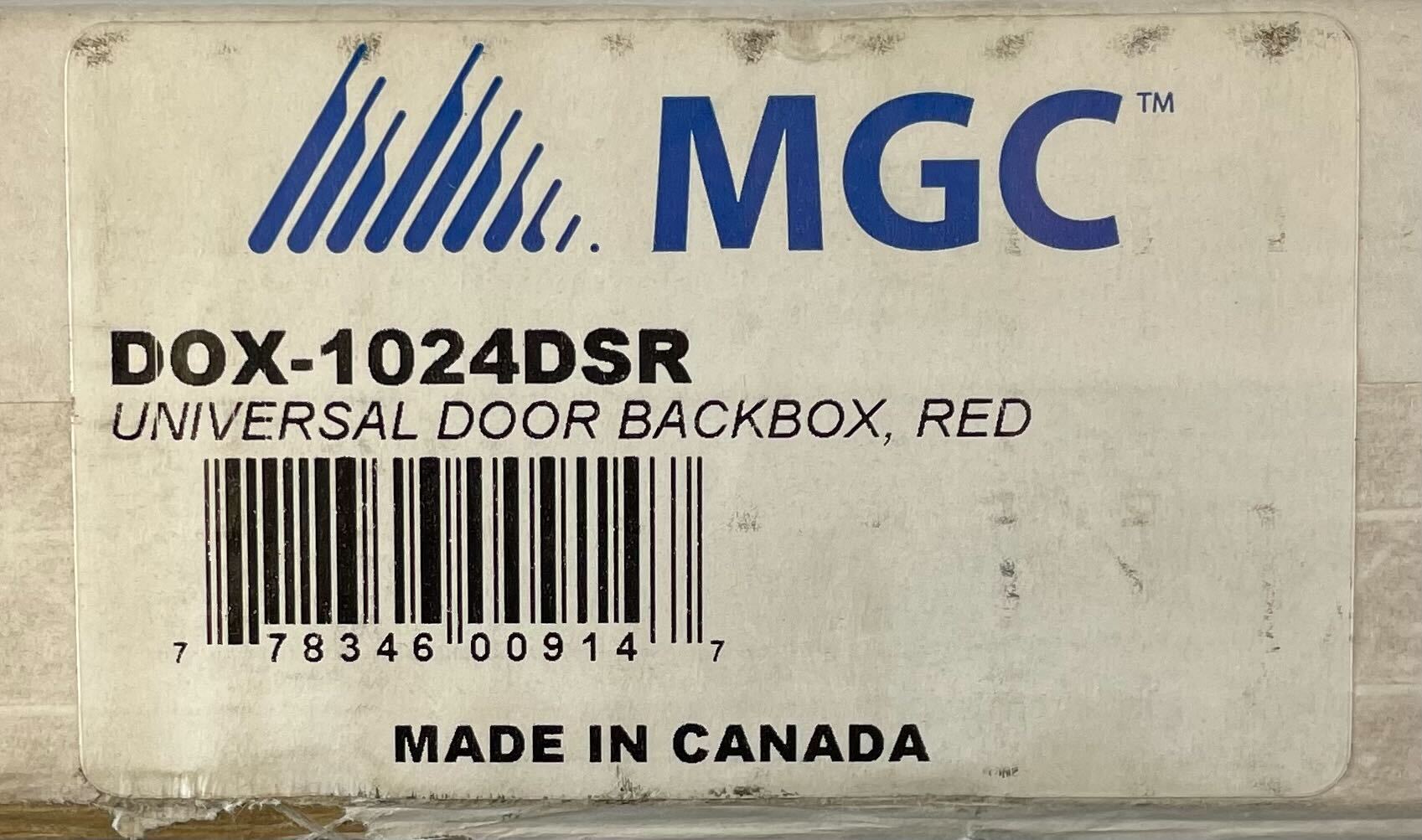

Mircom DOX-1024DSR is the red universal door for the UB-1024DS backbox. The UB-1024DS is a black universal backbox, sold without a door, for Compact FleX-Net panels and the FA-1000 series main control units; the door is ordered separately in white, red or black. The hinged door has a fire-retardant Lexan window for viewing the display and controls.
Specifications
| Model |
DOX-1024DSR, universal door, red |
| Fits |
UB-1024DS universal backbox |
| Window |
Fire-retardant Lexan, in hinged door |
| Lock |
CAT-30 lock and key |
| Door material |
14 GA (0.075 in.) steel |
| Backbox dimensions (minus trim ring) |
26 in. H x 14.5 in. W x 4.25 in. D (66 x 33.8 x 10.8 cm) |
| Enclosure with door |
28 in. H x 17 in. W x 5.6 in. D (71 x 43.2 x 14.2 cm) |
| Mounting screw spacing |
12 in. (30.5 cm) horizontal; 23.5 in. (59.7 cm) vertical |
Compatibility and installation notes
- The UB-1024DS backbox is ordered separately; it is suitable for flush or surface mounting and has a built-in trim ring.
- Compact FleX-Net panels named for this enclosure: FX-2003-12NDS and FX-4003-12N.
- FA-1000 series: the MCC-1024-6ADS and MCC-1024-12ADS main control units mount in the UB-1024DS.
Related models
- DOX-1024DS: same door in white
- DOX-1024DSB: same door in black
-
UB-1024DS: universal backbox this door fits
Documents
Specifications from Mircom catalog sheet 5973 Rev. 1, FleX-Net Compact Enclosures UB-1024DS / DOX-1024DS(R/B), and catalog sheet 5620 Rev. 9, FA-1000 Series. Manufacturer specifications are subject to change.
