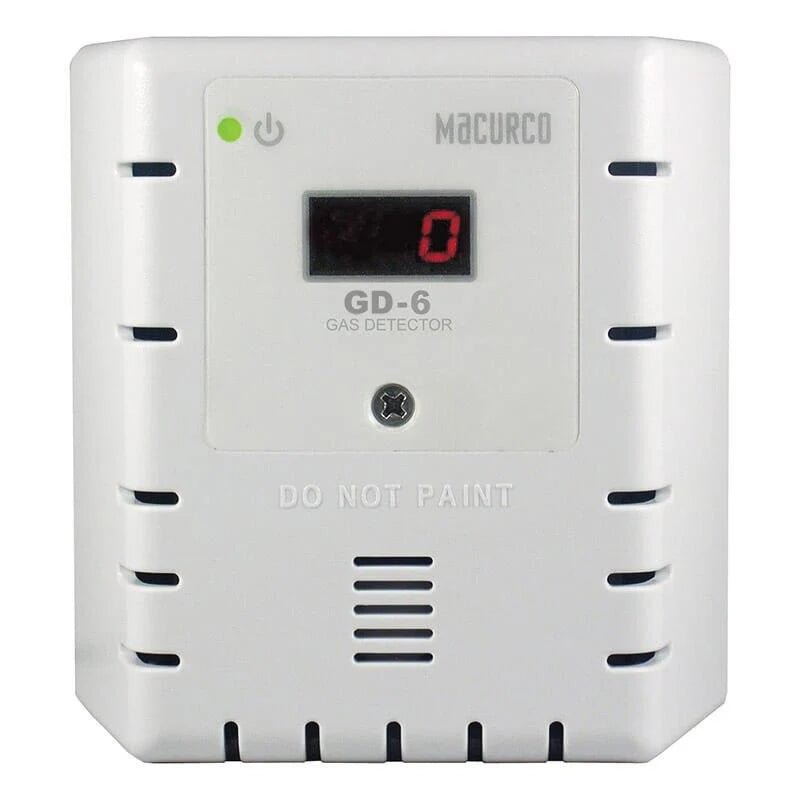

Macurco GD-6 WHITE White Housing Combustible Fixed Gas Detector and Controller 12/24VAC 12/32VDC
The GD-6 is a low-voltage, dual-relay combustible gas detector and ventilation controller with a selectable target gas: methane (natural gas), propane or hydrogen. It is used in parking garages, battery rooms, maintenance facilities and similar spaces, either stand-alone (fan/valve control and alarm relay) or as a 4-20 mA transducer for a control panel. This SKU is the GD-6 supplied with the white housing instead of the standard dark gray one.
Key Features
- Low voltage: 12 to 24 VAC or 12 to 32 VDC
- Selectable target gas: methane, propane or hydrogen
- 5 A SPDT fan control relay
- 0.5 A N.O. or N.C. alarm relay
- Digital display (0-50% LEL) and internal buzzer
- 4-20 mA current loop output
- Coverage area up to 1,257 sq. ft.
- Mounts on a standard 4x4 electrical box
- ETL Listed to UL 2075 (GD-6)
Specifications
| Measuring range |
0-50% LEL |
| Fan relay |
5 A, 240 VAC, pilot duty, SPDT, latching or non-latching |
| Alarm relay |
0.5 A, 120 V, 60 VA |
| Current @ 24 VDC |
75 mA alarm (two relays), 50 mA fan relay only, 23 mA standby |
| Buzzer |
85 dBA at 10 cm |
| Operating environment |
0 to 125 F (-18 to 52 C), 10-90% RH non-condensing |
| Size |
4-1/2 x 4 x 2-1/8 in. |
| Housing color |
White (this SKU) |
Compatible With
- Macurco DVP-120 control panel
- Macurco MRS-485 Modbus adapter
- Macurco horn/strobe notification series
