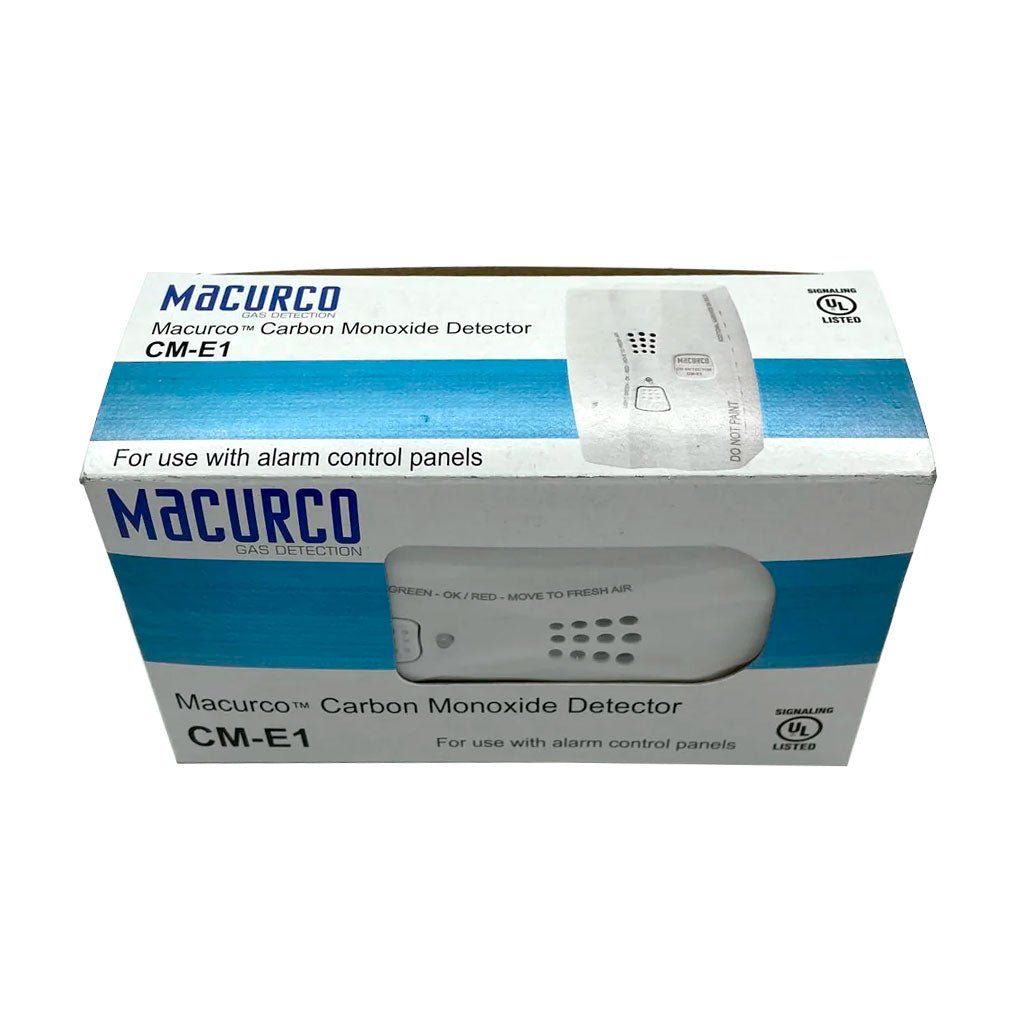

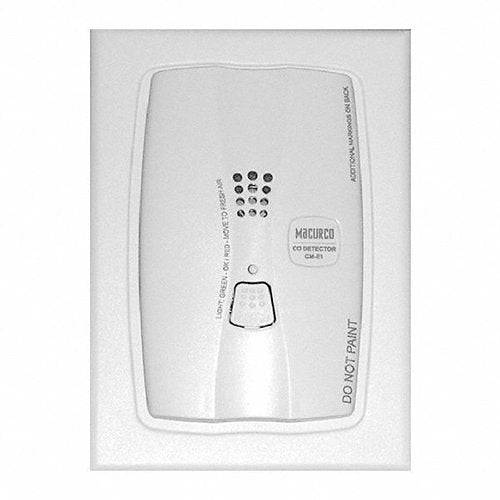

Macurco CM-E1 is a low-voltage carbon monoxide detector for residential and light commercial spaces, designed to connect to fire and security alarm control panels. It is UL 2075 certified and approved by the California State Fire Marshal, has a 10-year sensor with end-of-life signal and needs no calibration. Alarm and trouble relays tie into any fire or burglary panel for local and remote monitoring, and an 85 dB local sounder gives a Temporal 4 alarm.
Specifications
| Voltage |
9 to 32 VDC |
| Current draw |
15 mA normal / 35 mA alarm |
| Alarm relay |
SPST, 100 mA, 40 VDC |
| Trouble relay |
SPST, 100 mA, 40 VDC |
| Sensor life |
10 years with end-of-life signal |
| Local buzzer |
85 dB at 10 ft; Temporal 4 alarm, single chirp trouble |
| Alarm levels (UL 2034) |
70 ppm at 60-240 min; 150 ppm at 10-50 min; 400 ppm at 4-15 min |
| Status LEDs |
Green normal, amber trouble, red alarm |
| Test button |
Local test, alarm test, gas test, silence |
| Operating temperature |
40°F to 100°F (4.4°C to 37.8°C) |
| Size (rectangle) |
3-1/8 x 5-1/8 in.; 1/3 in. deep flush, 1-1/2 in. deep surface |
| Certifications |
UL 2075 (E354878), CSFM |
| Warranty |
Two year limited |
Installation notes
- Wire to a normally open initiating circuit on a UL certified alarm control panel
- Power from a battery-backed 12 or 24 VDC supply, fused or current limited at 0.2 A for each CM-E1

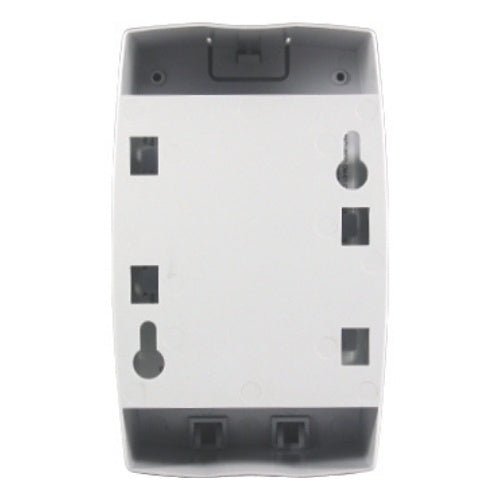

- Clip-in wire harness allows the detector to be replaced without rewiring
- The CM-E1 is the rectangular wall model for flush or surface mounting; CM-E1-RF and CM-E1-RS are the round ceiling flush and surface versions
Related models
- CM-E1-FTG: 500 ppm carbon monoxide field test gas
- CM-E1-IAK: double gang adapter plate for the CM-E1 wall mount
FAQ
Will the CM-E1 work with my alarm panel?
It is designed for UL certified fire and burglary control panels. The alarm relay connects to a normally open initiating circuit, and a separate trouble relay is provided.
What power does it need?
9 to 32 VDC from a battery-backed 12 or 24 VDC supply, fused or current limited at 0.2 A per detector. It draws 15 mA normally and 35 mA in alarm.
Does it need calibration?
No. The sensor needs no calibration and has a 10-year life with an end-of-life signal.
Is there a ceiling mount version?
Yes. The CM-E1-RF (round flush) and CM-E1-RS (round surface) are the ceiling mount versions; the CM-E1 is the rectangular wall mount model.
