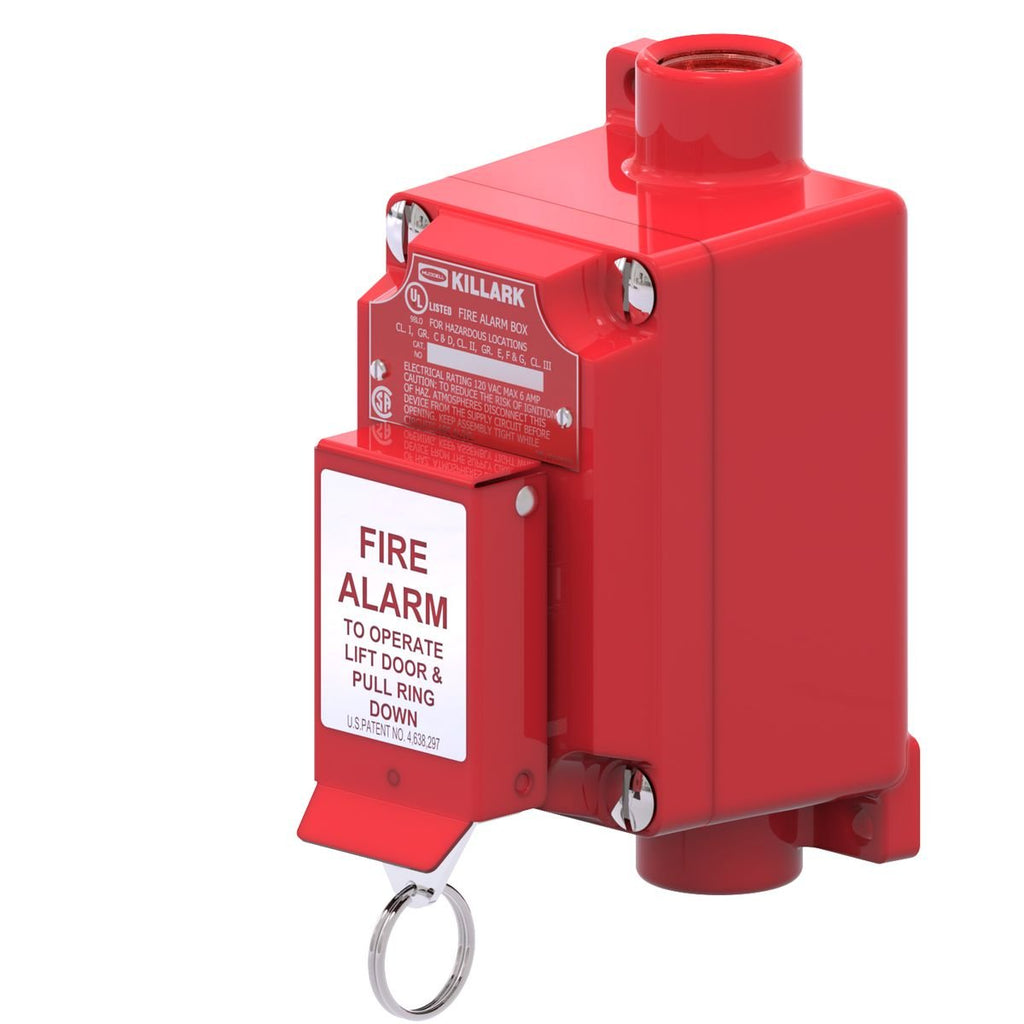

KILLARK XAL-53 — explosion-proof fire alarm pull station for hazardous locations.
The XAL-53 suits areas with flammable gases or vapors, combustible dusts, or easily ignitable fibers or flyings, such as petroleum refineries, chemical and petrochemical plants, storage areas and other facilities where hazardous substances are handled and stored. It is activated by lifting the front cover and pulling down the ring; this two-step action prevents unintentional operation. It is reset by depressing the shaft and returning the plate to its original position.
Specifications
| Enclosure |
Cast copper-free aluminum alloy, red textured powder epoxy finish |
| Conduit openings |
3/4 in. NPT feed-through |
| Contacts |
One normally open and one normally closed |
| Wiring |
#12 to #24 AWG, solid or stranded |
| Hazardous locations |
Class I Div. 1 and 2, Groups C, D; Class I Zones 1 and 2, IIB, IIA; Class II Div. 1 and 2, Groups E, F, G; Class III |
| NEMA |
7CD, 9EFG |
| Approvals |
UL and ULC E50498; CSA LR31085; CSFM 7150-1439:100 |
Installation notes
- All installations must comply with the National Electrical Code and local codes.
- Disconnect the circuit before removing the cover.
- Lubricate the box and cover flanges and the operator shaft occasionally, and keep flanges clean and free of scratches.
- Bilingual nameplates and an internal ground screw are included.
Documents
FAQ
Which hazardous locations is it rated for?
Class I, Divisions 1 and 2, Groups C and D; Class I, Zones 1 and 2, Groups IIB and IIA; Class II, Divisions 1 and 2, Groups E, F and G; and Class III.
How is it operated?
Lift the front cover and pull down the ring. The two-step action prevents unintentional operation.
What contacts does it have?
One normally open and one normally closed contact as standard.
What conduit size does it use?
3/4 in. NPT feed-through conduit openings, with wiring from #12 to #24 AWG.
