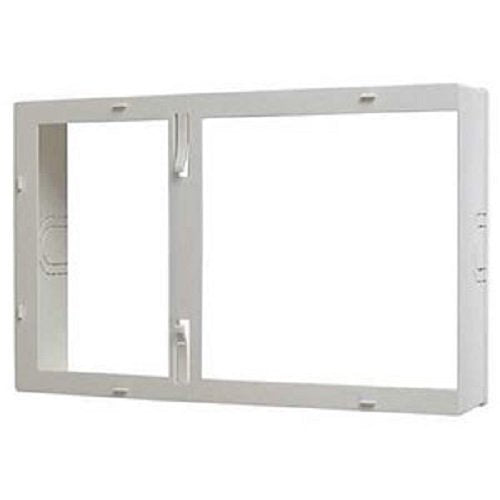

Kidde WG4WTS is the white surface trim skirt for the Kidde Genesis WG4 outdoor-rated appliance family, which includes horns, horn-strobes, speakers and speaker-strobes. The optional skirt sits between the appliance and the electrical box to give a clean, finished appearance on surface installations.
Specifications
| Model |
WG4WTS |
| Description |
Surface skirt for Genesis WG4 appliance family |
| Color |
White |
| Used with |
Genesis WG4 horns, horn-strobes, speakers and speaker-strobes |
| Box required with skirt (horns, horn-strobes) |
449 box or 4 in. square by 2-1/8 in. deep box |
| Box required with skirt (speakers, speaker-strobes) |
74347U box or 4 in. square by 2-1/8 in. deep box |
Compatibility and installation notes
- WG4 appliances are rated for indoor or outdoor use on walls or ceilings.
- When the WG4WTS or WG4RTS skirt is used, a 4 in. square box 2-1/8 in. deep (or the listed outdoor-rated box) is required instead of a 1-1/2 in. deep box.
- For outdoor or wet surface mounting, the data sheets call for the outdoor-rated 449 or 74347U box; the speaker data sheet recommends the trim skirt with the 74347U box.
- WG4WTS is the white version; WG4RTS is the red version.
Related models
Documents
Specifications from Kidde data sheets K85001-0628 Issue 1.1 (03-31-20) and K85001-0626 Issue 1.1. Manufacturer specifications are subject to change.
