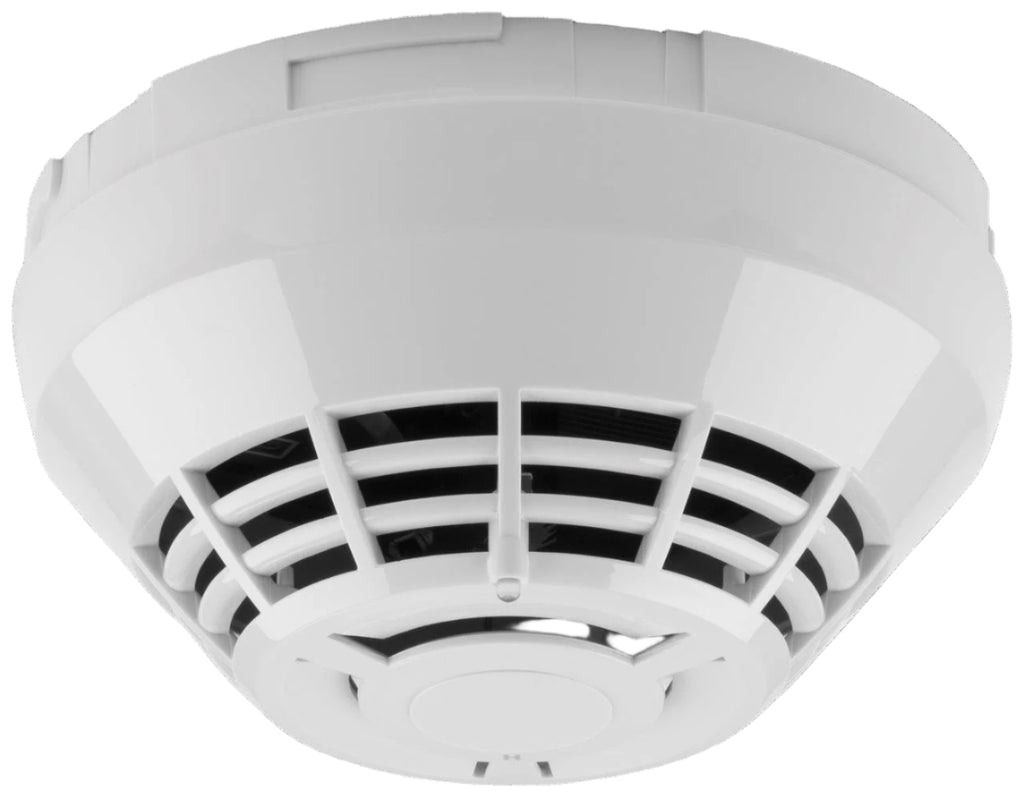

Kidde KC2-H is a conventional 2-wire heat detector with a 135 degree fixed threshold, supplied with S10A compatibility ID. It is the heat-only model in the Kidde KC2 conventional series, a range of interchangeable heads and bases.
The detector head has to be fitted to a compatible KC2 base, which is sold separately. The heat sensor combines the fixed threshold with rate-of-rise compensation, and one tri-color LED on the housing shows alarm, trouble and standby states.
Features
- Heat-only detection with a 135 degree fixed threshold and rate-of-rise compensation
- Head and terminal base design; base sold separately
- Tri-color status LED: solid red for alarm, flashing yellow for trouble, flashing green for standby
- Self-diagnostic function continually monitors operation
- Automatic drift compensation
- Low-profile design that sits close to the ceiling
Specifications
| Detector type |
Heat only, 2-wire conventional |
| Fixed threshold |
135 degrees |
| Color |
White |
| Base |
Sold separately |
