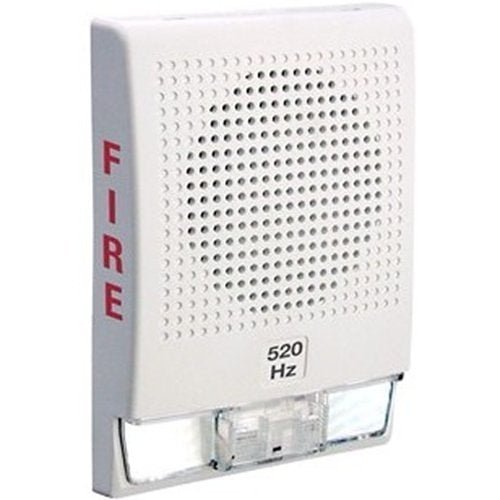

The Kidde G4LFWF-HVM is a Genesis G4LF Series horn strobe in white with "FIRE" marking. It pairs a 520 Hz low-frequency tone with a multi-candela strobe for sleeping rooms and other spaces where codes call for low-frequency audible signals. It installs on the wall for indoor public-mode notification.
Key Features
- 520 Hz low-frequency tone, factory set to Temporal 3 with a jumper option for continuous (coded) output
- High or low dB output (low setting is about 5 dB lower)
- Field-selectable strobe: 15, 30, 75 or 110 cd, with the setting visible through a side window
- Genesis FullLight strobe technology for even light distribution
- Ultra-slim profile, about one inch from the wall, with no visible mounting screws
- Synchronizes with other Genesis audible and visible signals when used with a compatible sync source
Specifications
-
Manufacturer: Kidde
-
Part Number: G4LFWF-HVM
-
Series: Genesis G4LF
-
Color / Marking: White, "FIRE"
-
Audible Frequency: 520 Hz
-
Candela: 15 / 30 / 75 / 110 cd
-
Operating Voltage: 24 VDC or 24 VFWR (16–33 V)
-
Dimensions: 6.5" H x 5" W x 1" D
-
Mounting: 4" square electrical box with supplied spacer, or EG4B surface-mount box
-
Wire Size: 12–18 AWG
-
Operating Environment: 32°F to 120°F (0°C to 49°C), 0–93% RH non-condensing
-
Listings: UL 464 (low-frequency audible), UL 1971 (strobe)
Compatibility
Compatible sync sources include VM and VS Series life safety systems, FX Series fire alarm control panels, GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A and EG1M-RM modules, and MIRBPS6A, MIRBPS10A, APS6A and APS10A power supplies.
