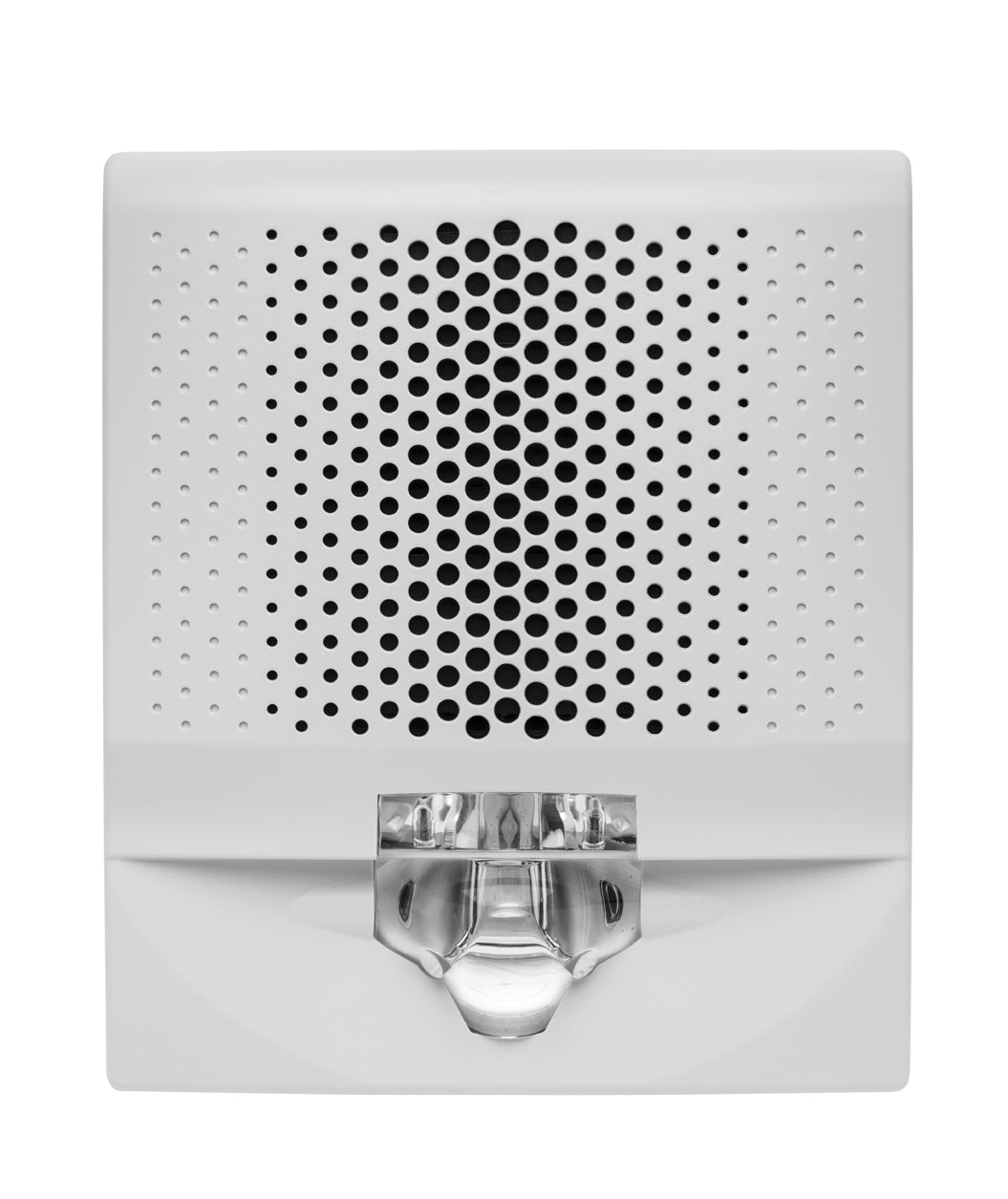

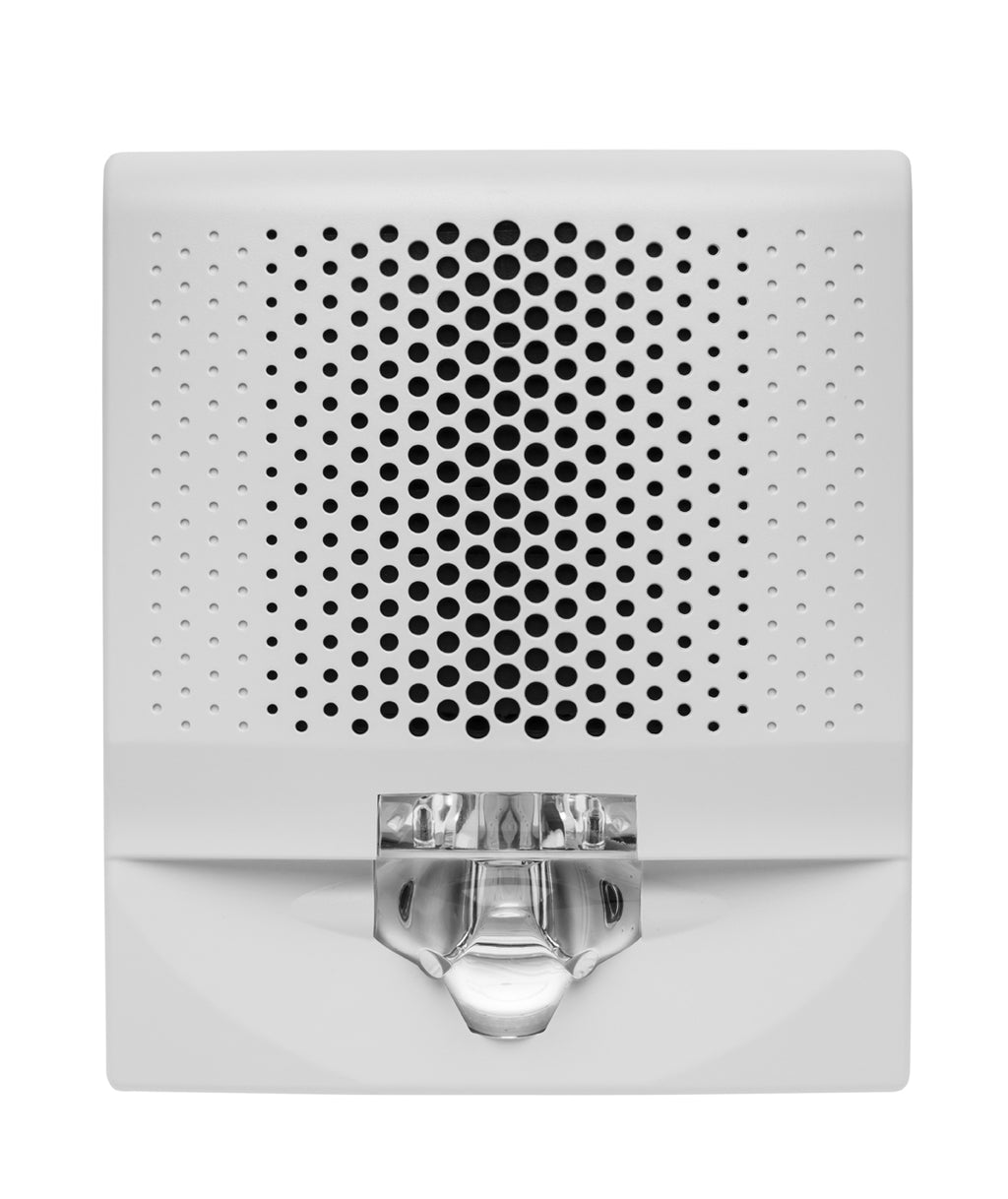

EG4LFVWF is a Kidde Genesis LED EG4LF Series wall-mount low frequency horn-strobe with a white housing and FIRE marking. The horn produces a 520 Hz low frequency tone that meets the UL 464 requirements for sleeping areas, and the LED strobe has field-selectable 15, 30, 75 or 110 candela output. It is used on fire alarm notification appliance circuits in hotel rooms, dormitories and other sleeping spaces.
Specifications
| Part number |
EG4LFVWF |
| Series |
Genesis LED EG4LF, wall mount |
| Housing / marking |
White (RAL 9002) / FIRE |
| Audible |
520 Hz low frequency; temporal or steady; high or low dB |
| Sound output |
78 dBA low, 83 dBA high (continuous/temporal) |
| Light output |
15, 30, 75 or 110 cd, field selectable; about 1 flash per second |
| Operating voltage |
16 to 33 VDC, 16 to 33 VFWR |
| Operating current (all candela settings) |
Low dB: 66 mA DC / 103 mA FWR; High dB: 159 mA DC / 230 mA FWR |
| Wire size |
12 to 18 AWG |
| Dimensions (W x H x D) |
4.95 x 5.78 x 1.62 in. |
| Operating environment |
32 to 122°F (0 to 50°C), 0 to 93% RH noncondensing; indoor, dry |
| Listings |
UL 464 (520 Hz), UL 1971 for indoor wall-mounted public mode use |
Compatibility and installation notes
- Mounts on the GRSW room side wiring plate, which is included and allows pre-wiring and continuity checks.
- Fits 1-gang, 2-gang and 4-inch square boxes at least 1-1/2 in. deep; 4-inch octagon boxes need the GOCT adapter. Surface boxes EG4RSB and EG4WSB are available.
- Synchronization sources include CC1S/MCC1S series signal modules, booster and auxiliary power supplies, and intelligent and conventional control panels; maximum 20 ohms between any two devices.
- Current draw is the same at every candela setting, and the LED strobe can share a circuit and field of view with legacy xenon strobes.
Related models
- EG4LFVRF, red horn-strobe with FIRE marking
- EG4LFVWN, white horn-strobe with no marking
-
Kidde EG4LFWF, white low frequency horn without strobe
-
Kidde EG4TW white trim plate
-
Kidde EG4WSB white surface mount box
Documents
Specifications from Kidde Commercial data sheet K85001-1052 Issue 1.1. Manufacturer specifications are subject to change.
