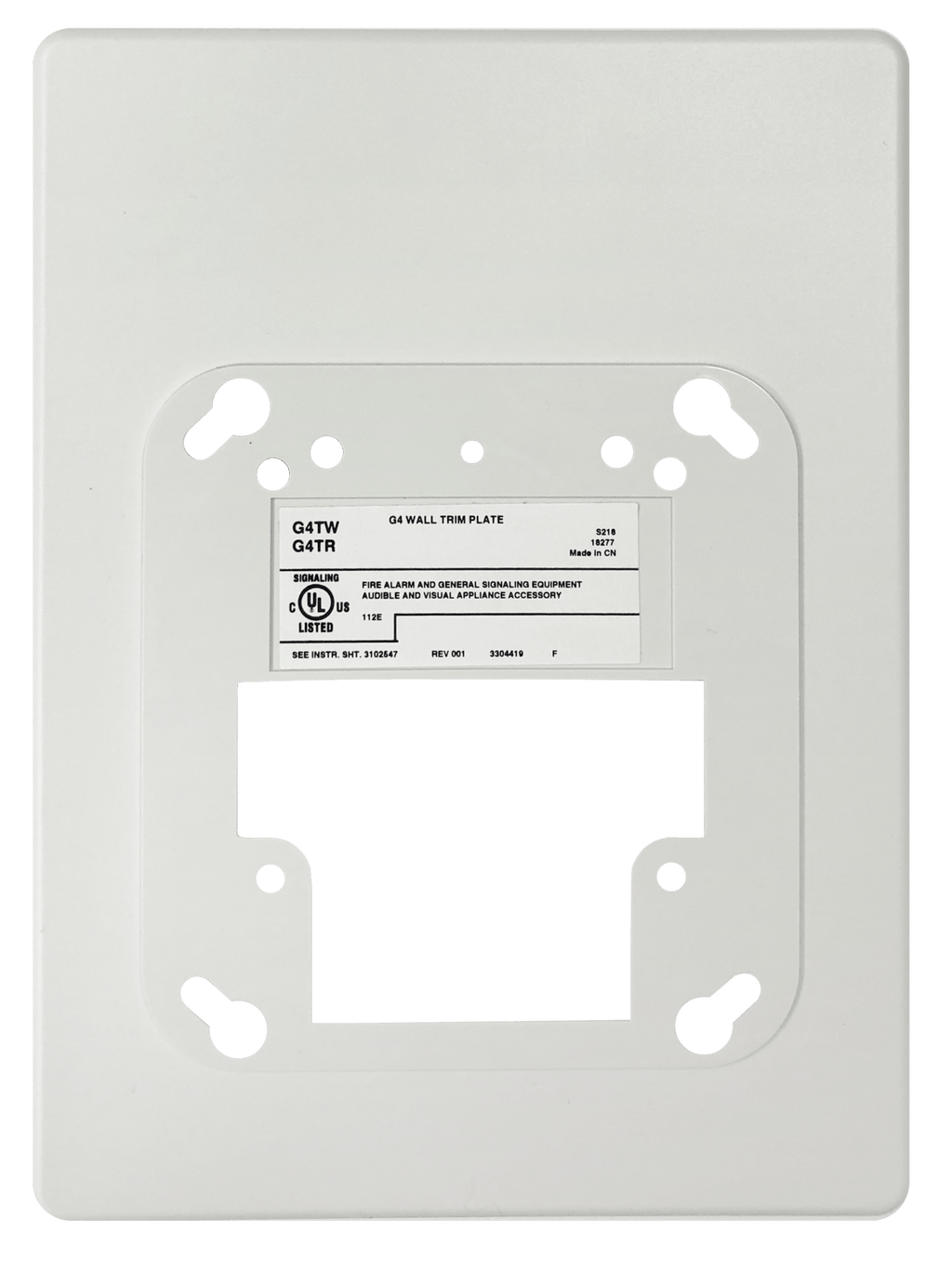

Kidde EG4TW — white trim plate for Genesis LED EG4 Series wall notification appliances.
Genesis LED EG4 horns, strobes and horn-strobes, and the EG4S speakers and speaker-strobes, plug into a room-side wiring plate screwed to a one-gang, two-gang, 3.5 in. octagon or 4 in. square box at least 1-1/2 in. deep. The appliance face is only 4.95 × 5.78 in., so a retrofit over an older, larger signal can leave the wall opening exposed. The EG4T trim plate is the color-matched cure: it is screwed to the box behind the wiring plate and hides the opening. It is optional and ordered separately.
- Kidde ordering description: trim plate, G4 Series, white
- 5.6 × 7.5 × 0.3 in. (14.22 × 19.05 × 0.76 cm)
- Listed as the trim plate for EG4 horns, strobes and horn-strobes and for EG4S speakers and speaker-strobes
- Mounts between the electrical box and the room-side wiring plate
Check color and family before ordering: EG4TR is the same plate in red, and EG1TW is the white trim ring for the smaller EG1 appliances at 5 × 5-7/8 × 9/16 in. — it will not cover an EG4 opening.
