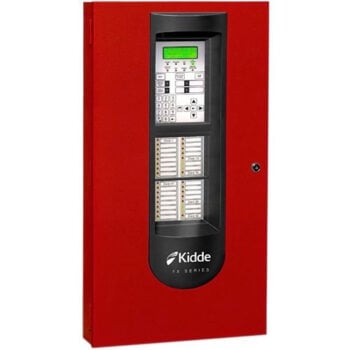

Kidde FX-1000D is a four-loop intelligent fire alarm control panel supplied with one 250-point loop installed and a maximum capacity of 1,000 points. It includes a two-line dialer and four notification appliance circuits, with a red door and surface-mount enclosure. Installers use it for small to mid-sized buildings and for retrofits that reuse existing wiring.
Specifications
| Loops |
One 250-device loop installed; loop modules add 250-point increments to 1,000 points |
| Loop wiring |
Class A or Class B, up to 20,000 ft |
| NACs |
Four, wired Class B or two Class A |
| Dialer |
Two-line, Contact ID |
| Primary power |
120 VAC, 60 Hz, 2.0 A max (230 VAC model: 0.97 A) |
| Standby / alarm current |
172 mA / 267 mA (base panel) |
| Annunciators |
Up to eight RS-485 remote annunciators |
| Relays |
Two Form C, one Form A |
| Display |
4 x 20 backlit LCD |
| Enclosure |
Red door, surface mount; 28.0 in tall x 15.75 in wide |
Features
- Auto-programming and rotary addressing
- Optional Ethernet port; local or remote upload/download
- Genesis horn and strobe synchronization to UL 1971
- RZI16-2RS module adds 16 conventional circuits and two NACs
