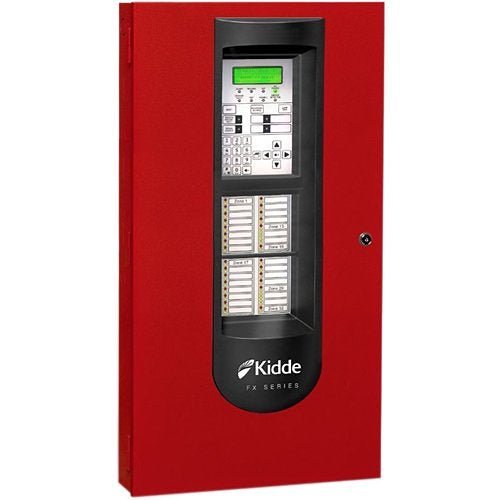

Scalable intelligent detection for small to mid-sized buildings is the job of the Kidde FX-1000. This FX-Series control panel ships with one 250-point loop installed and grows to 1,000 points with loop controller cards. It comes as a complete 120 V system with four NACs and a red surface-mount enclosure.
Key Features
- One 250-point Class A or Class B loop (125 detectors + 125 modules) installed
- Expandable to four loops and 1,000 points with FX-SLC1 or FX-SLC2 loop controller modules
- Four NACs (Class B, or two Class A) individually configurable for continuous, temporal, synchronized or coded output
- 4 x 20 character backlit LCD, two programmable switches and rotary device addressing
- Supports up to eight serial annunciators; optional SA-ETH Ethernet and SA-DACT2 dialer
- Pre-alarm, alarm verification by point and adjustable detector sensitivity
Specifications
-
Manufacturer: Kidde
-
Part Number: FX-1000
-
Capacity: 1,000 points (one 250-point loop installed)
-
NAC Output: 24 VFWR; 6.0 A total, 2.5 A max. per circuit at 120 VAC 60 Hz
-
Primary Power: 120 VAC
-
Batteries: 24 VDC SLA; two 18 Ah batteries fit in cabinet; 26 Ah charging capacity
-
Enclosure: Surface mount, red
-
Operating Environment: 32°F to 120°F (0°C to 49°C), 0–93% RH non-condensing
Compatibility
Supports Kidde intelligent addressable detectors, modules and bases; see the FX-64 and FX-1000 Series Compatibility List (P/N 3102355-EN). The RZI16-2RS module adds up to 16 conventional circuits and two NACs for retrofits.
