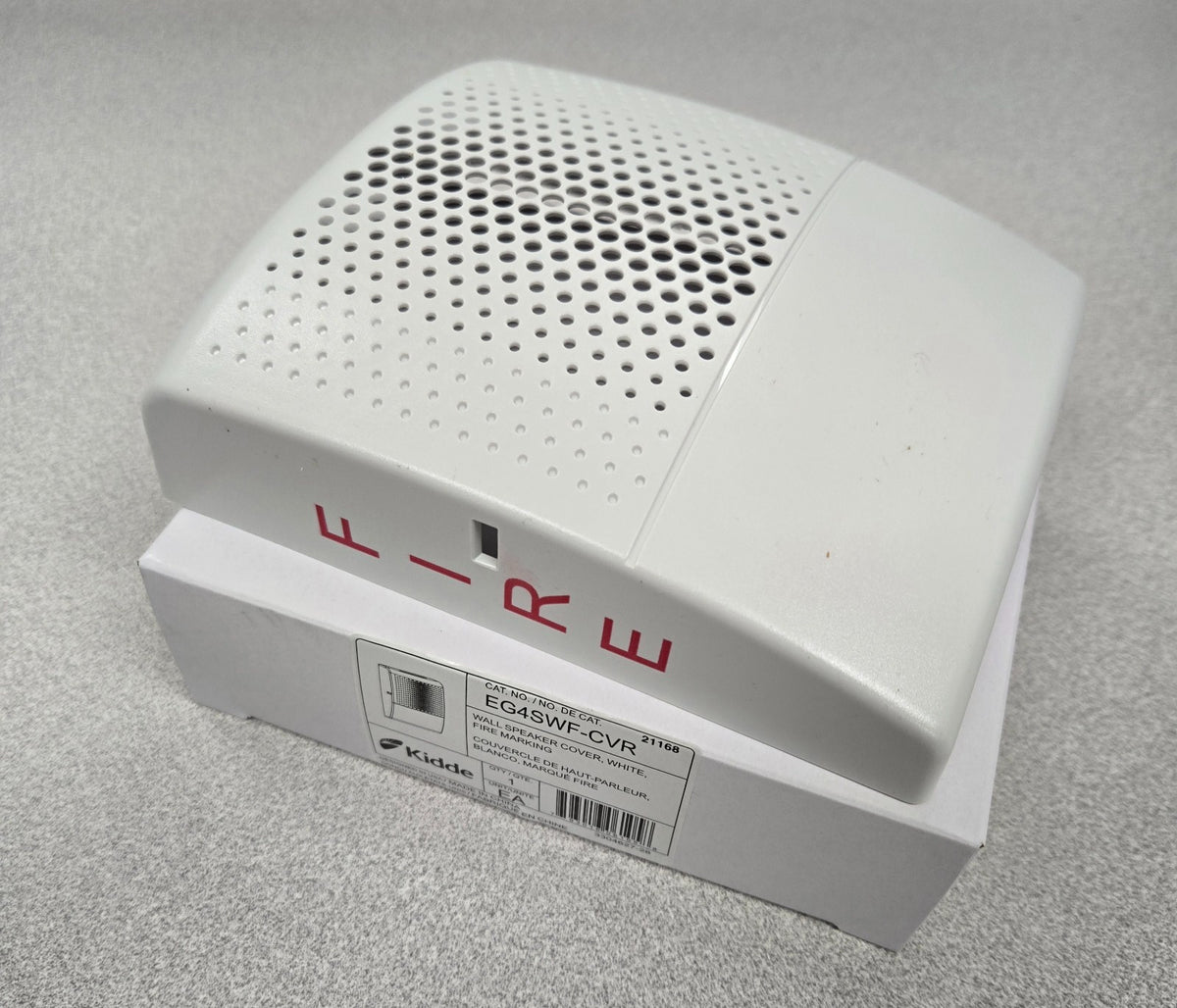

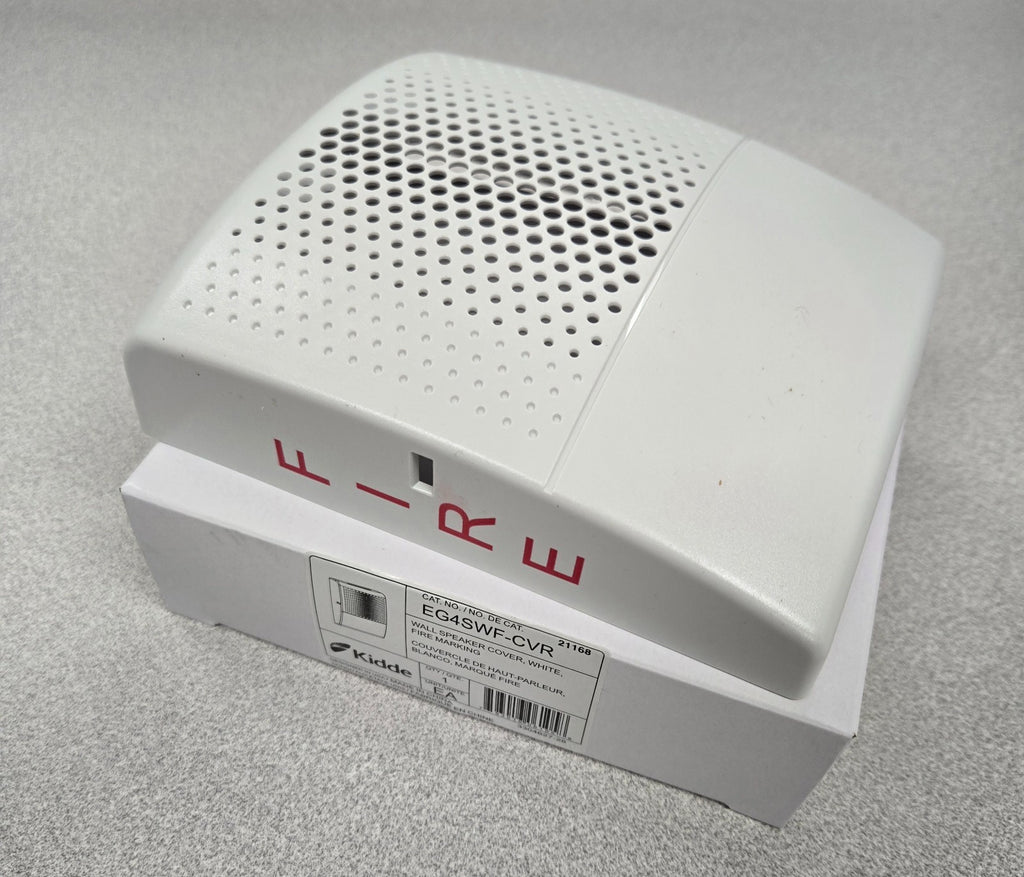

Kidde EG4SWF-CVR is a replacement appliance cover for Kidde Genesis LED EG4S Series wall-mount speakers, white with FIRE marking. Genesis EG4S speakers use quick-swap covers so the marking can be changed at any time, and the cover is removed to reach the voltage and wattage settings and the diagnostic test points.
Specifications
| Model |
EG4SWF-CVR |
| Type |
Replacement appliance cover, speaker |
| Color |
White |
| Marking |
FIRE |
| Series |
Genesis LED EG4S wall-mount speakers |
| Matching speaker |
EG4SWF (white, FIRE) |
Compatibility and installation notes
- Listed in the EG4S Series ordering information under speaker covers; speaker-strobes use separate EG4SV covers.
- The cover can be removed with a screwdriver without removing the speaker from the wall.
- Order the cover matching the housing color and marking required at the site.
Related models
Documents
Specifications from Kidde Commercial data sheet K85001-1026, Issue 1.3. Manufacturer specifications are subject to change.
