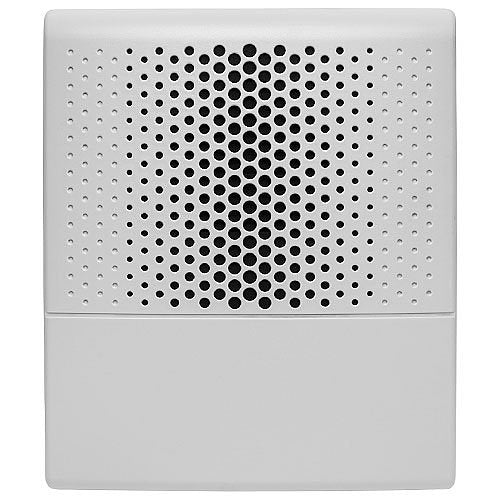

Kidde EG4SWF Genesis EG4 Wall Speaker, White, FIRE Marking
Room Side Wiring Plate Included.
Key Features
- Increased sound fidelity and audio intelligibility with an STI rating of.81 (More than.76 is excellent) Low Frequency (520Hz) capable
- Low frequency output meets NFPA standards for newly constructed commercial sleeping areas High Performance LED Strobe Technology
- More devices per circuit
- Ability to use lower gauge wire
- Longer wire runs
- Fewer booster power supplies
- High efficiency optics
- Selectable 15, 30, 75, or 110 cd light output
- LED devices may be mixed with legacy Xenon strobes on the same circuit and in the same field of view Field flexibility
- Speakers are also capable of both 25V and 70V and voltage in a single model with a field selectable switch
Specifications
| Strobe operating voltage |
16 to 33 VDC, 16 to 33 VFWR |
| Speaker operating voltage |
25VRMS of 70VRMS (selectable) |
| Light output |
15, 30, 75, or 110 candela |
| Strobe flash rate |
1 fps (flash per second) approx. |
| Wire size |
12 to 18 AWG (0.75 to 2.50 mm2) |
| Strobe-to-box center offset |
-1.70 inches (-4.32 cm) |
| Storage T emperature |
-40 to 158 F (-40 to 70 C) |
| Environmental compliance RoHS directive |
2011/65/EU |
