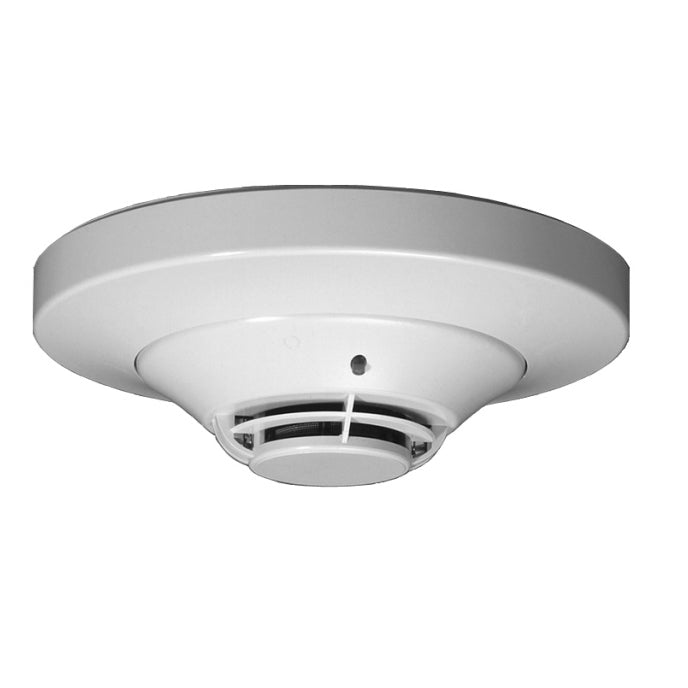

Johnson Controls 2951TMJ Multi-Sensor Low-Profile Intelligent Detector
The 2951TMJ is an intelligent, addressable Acclimate multi-sensor detector in a low-profile housing, made for Johnson Controls intelligent fire alarm control panels in CLIP or FlashScan mode. It combines photoelectric and thermal sensing, and a microprocessor in the detector head adjusts sensitivity to the environment on its own, without operator action or panel programming. It requires a compatible detector base.
Key Features
- Combination photoelectric and thermal sensing, microprocessor-based
- Adjusts its sensitivity level automatically, without operator intervention or programming
- Works in FlashScan and CLIP modes
- Address can be viewed and changed without an electronic programmer
- Dual bi-color LEDs give a 360-degree viewing angle
- Built-in tamper-resistant feature
- Built-in functional test switch activated by an external magnet
Specifications
| Operating voltage |
15 to 32 VDC peak |
| Standby current |
300 uA maximum average |
| Operating temperature |
0 to 38 C |
| Dimensions |
5.3 cm high x 10.4 cm diameter |
| Weight |
147 g |
| Listings |
UL S1948; ULC S1948; FM Approved; CSFM 7272-0554:0145; MEA 225-02-E Vol. 3 |
Compatible With
- Johnson Controls IFC-320
- Johnson Controls IFC2-640
- Johnson Controls IFC2-3030
