Name: Honeywell HW-AV-LTE-M CLSS Pathway Dual-Path LTE-M Communicator with Dialer Capture Interface
Brand: Honeywell
SKU: HW-AV-LTE-M
Price: 158.65 USD
Availability: OutOfStock

Honeywell HW-AV-LTE-M CLSS Pathway Dual-Path LTE Communicator

Roll over image to zoom in Click on image to zoom

Newer model available

This model has been replaced by the newer product below. The original is available while current stock lasts.

This model

HW-AV-LTE-M

$158.65

Discontinued, no longer stocked

Recommended replacement

Honeywell HW-AV-LTE-M-2 Commercial Fire CLSS Dual-Path

Honeywell HW-AV-LTE-M-2 CLSS Pathway Dual-Path Fire Alarm Communicator, LTE CAT-M1 dual SIM and LAN, antenna included

$144.05$172.86

● 112 units in stock

View details

Category: Communicators
Brand: Honeywell
SKU: HW-AV-LTE-M
UPC: 020103135676
Weight: 0.5 lb

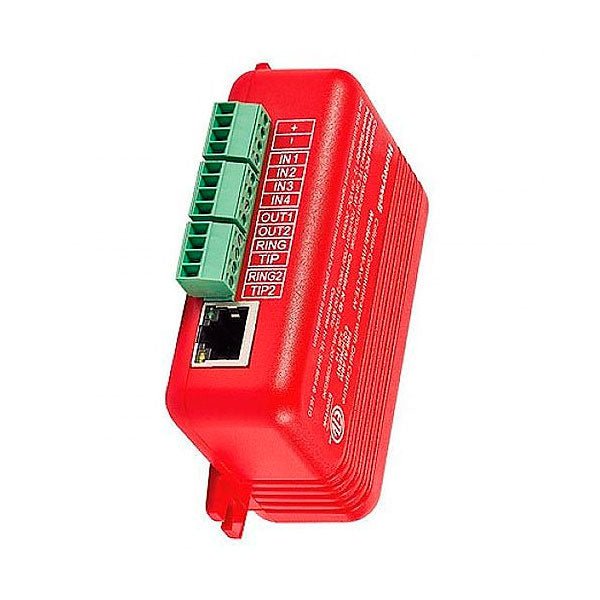

Honeywell HW-AV-LTE-M — the CLSS Pathway, a UL 864 listed dual-path communicator carrying fire panel events over LTE CAT-M1 cellular and Ethernet to a central station and the Honeywell CLSS Cloud.

The dialer capture interface makes it panel-agnostic: it recognises Contact ID, SIA and 4x2 automatically at power-up, so only the central-station account number need be programmed. Four supervised inputs cover panels with no dialer, and dual SIMs fail over from Verizon to AT&T.

+12 to +29 VDC; 60 mA standby, 200 mA peak
LTE CAT-M1 at 700, 850, 1700, 1900 and 2100 MHz; 3 ft antenna in the carton
3.54 × 2.48 × 1.26 in., 2.56 oz less antenna
32 to 120 °F, 0 to 93% humidity, dry indoor locations
UL 864 file S35608; ETL to UL 864 and UL 1610, file 5013005
Must be mounted in a metal enclosure, ordered separately

HW-AV-ENC is the matching enclosure, HW-AV-ENC2-PS the optional 12 V supply. The current Honeywell data sheet, HON-62123 Rev F, gives HW-AV-LTE-M-2 as the CLSS Pathway ordering code while still naming HW-AV-LTE-M as the device, and states no replacement either way.
