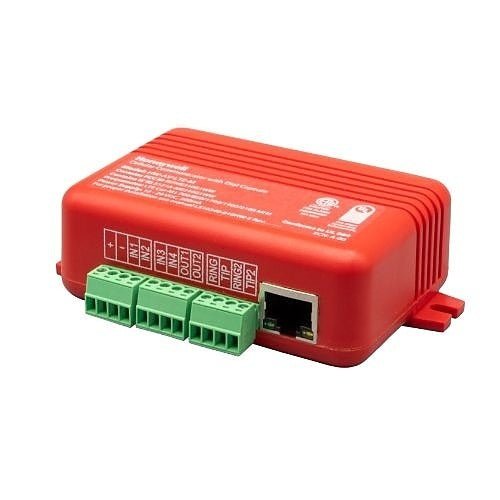

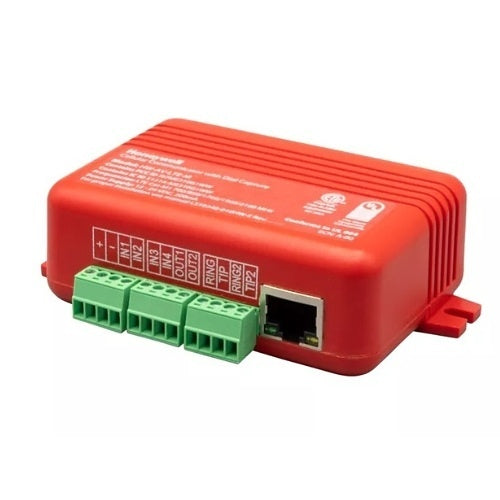

Honeywell HW-AV-LTE-M-2 — ordering number for the CLSS Pathway dual-path fire alarm communicator, the HW-AV-LTE-M module with antenna.
CLSS Pathway captures the dialer output of a fire alarm control panel and forwards events to a central monitoring station and to the Honeywell CLSS Cloud over an LTE CAT-M1 cellular link and a wired LAN, so an existing panel can leave copper telephone lines without being replaced. Two SIM cards stay active at once, Verizon being the default primary network.
- Dialer capture: Contact ID, SIA (SIA8, SIA20, SIA2000) and 4x2 at 1400 Hz or 2300 Hz, recognized automatically at power-up
- Four supervised inputs monitor dry-contact panel relays on non-dialer panels
- Supply 12 to 29 VDC; 60 mA standby, 200 mA peak
- 3.54" L × 2.48" W × 1.26" D, 2.56 oz without antenna
- 32°F to 120°F, 0 to 93 percent RH, non-condensing
- UL 864 certified S35608; ETL to UL 864 and UL 1610
No enclosure is included and UL installations require one: order HW-AV-ENC or an Altronix BC300R. HW-AV-ENC2-PS is the separate power supply, HON-CGW-MBB the CLSS Gateway.
Documents
FAQ
Which fire alarm panels does it work with?
Any panel dialer using Contact ID, SIA (SIA8, SIA20, SIA2000) or 4x2 at 1400 or 2300 Hz; the format is recognized automatically at power-up. Four supervised inputs cover non-dialer panels.
Which cellular networks does it use?
It has dual SIM cards for AT&T and Verizon. Verizon is the default primary network, and the primary can be changed to AT&T in the CLSS Mobile App or CLSS Site Manager.
Is an enclosure required?
For UL installations the communicator must be installed in the Honeywell HW-AV-ENC or an Altronix BC300R metal enclosure.
How is it powered?
From 12 to 29 VDC, directly from a 24 VDC fire alarm power supply or from the optional HW-AV-ENC2-PS power supply.
