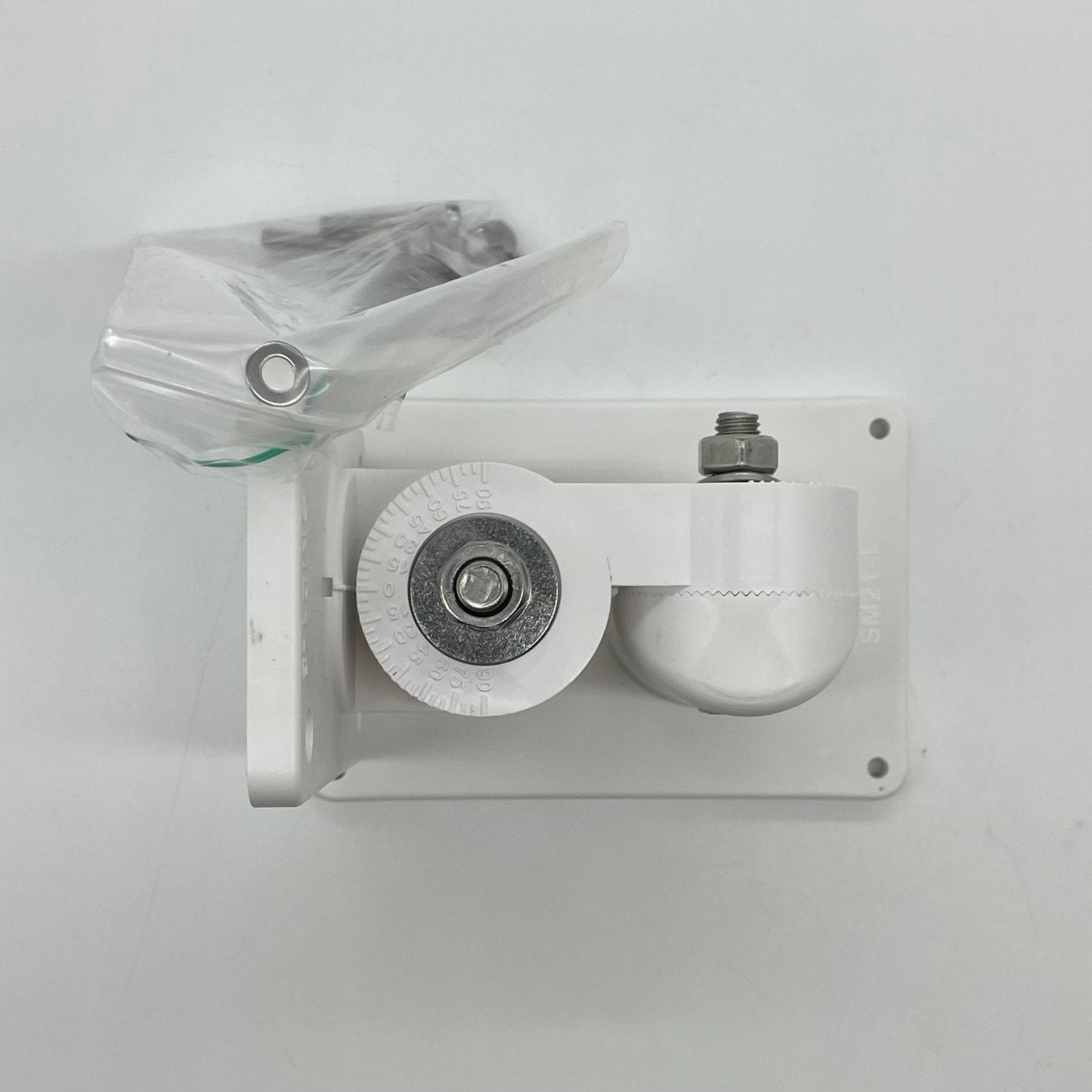

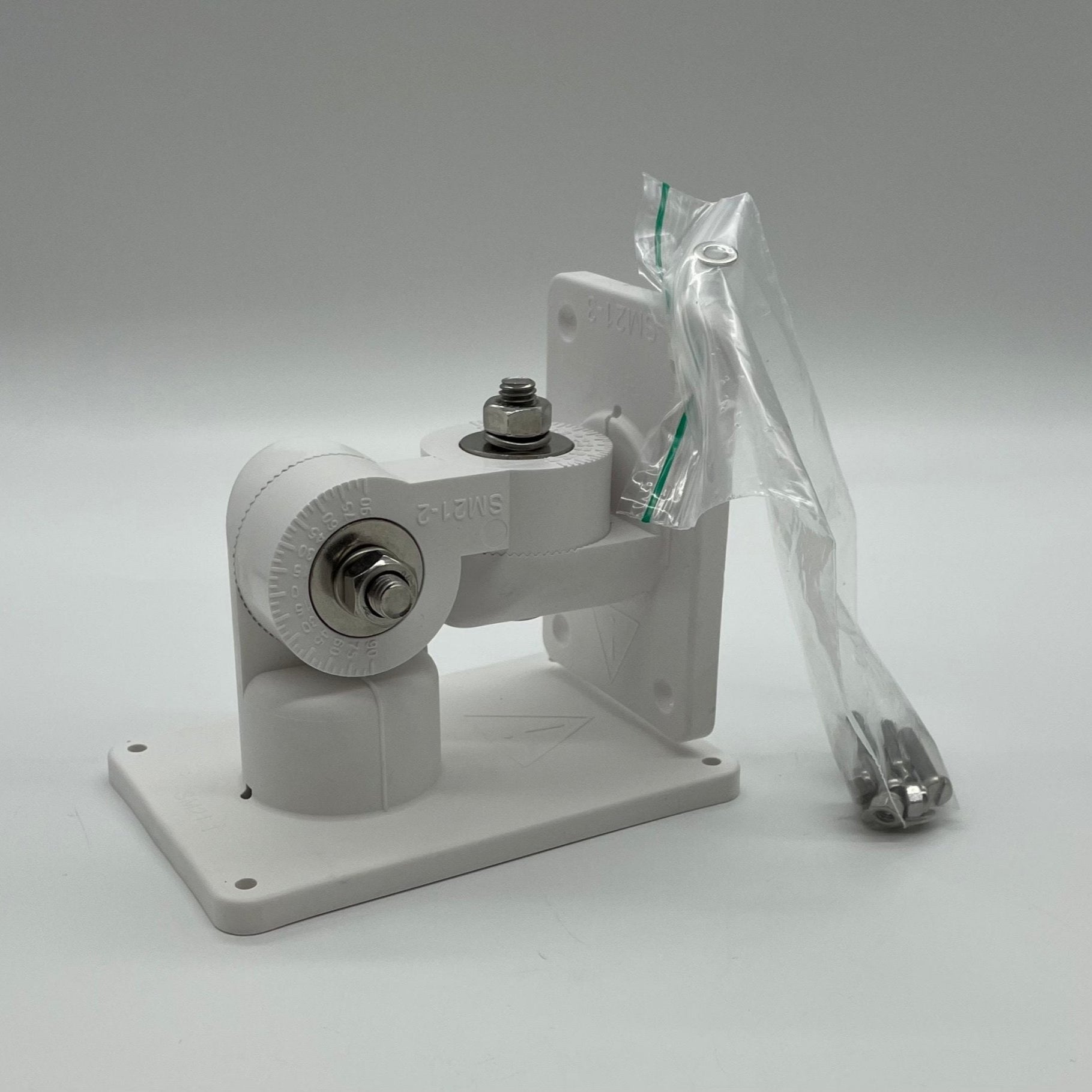

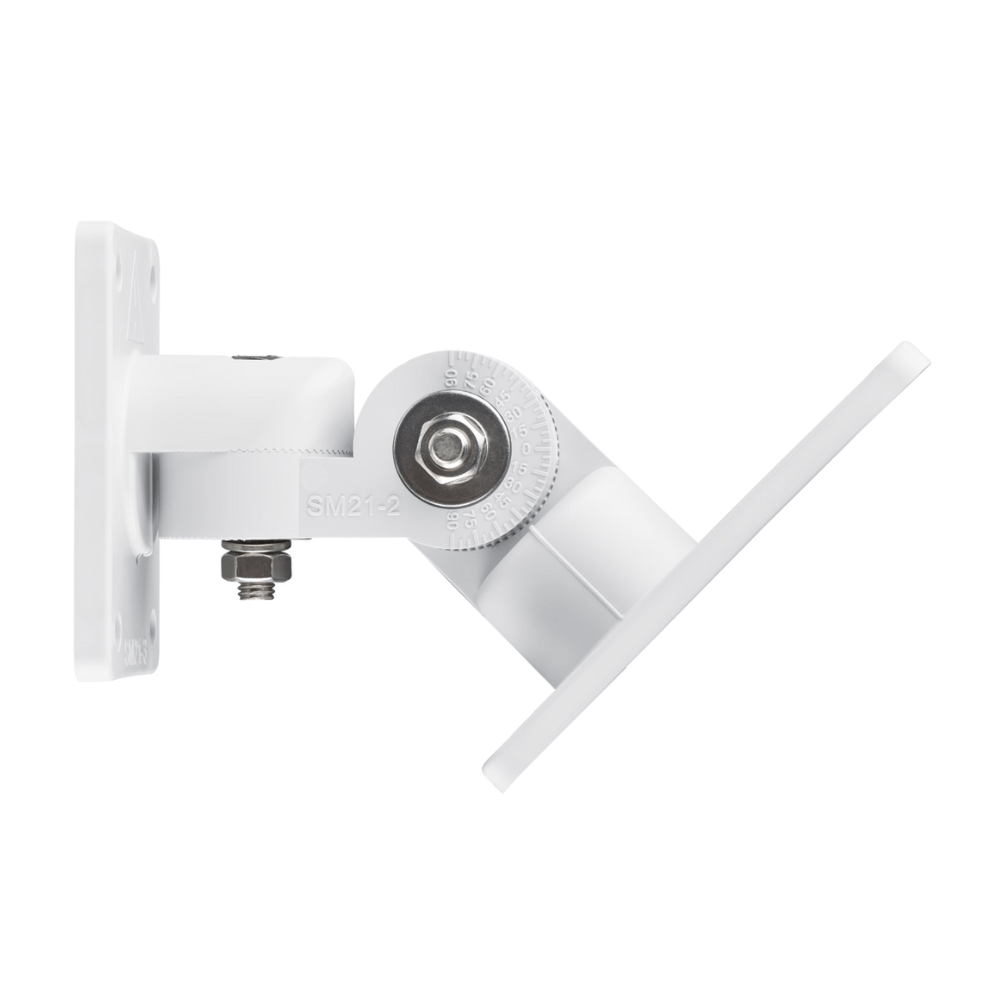

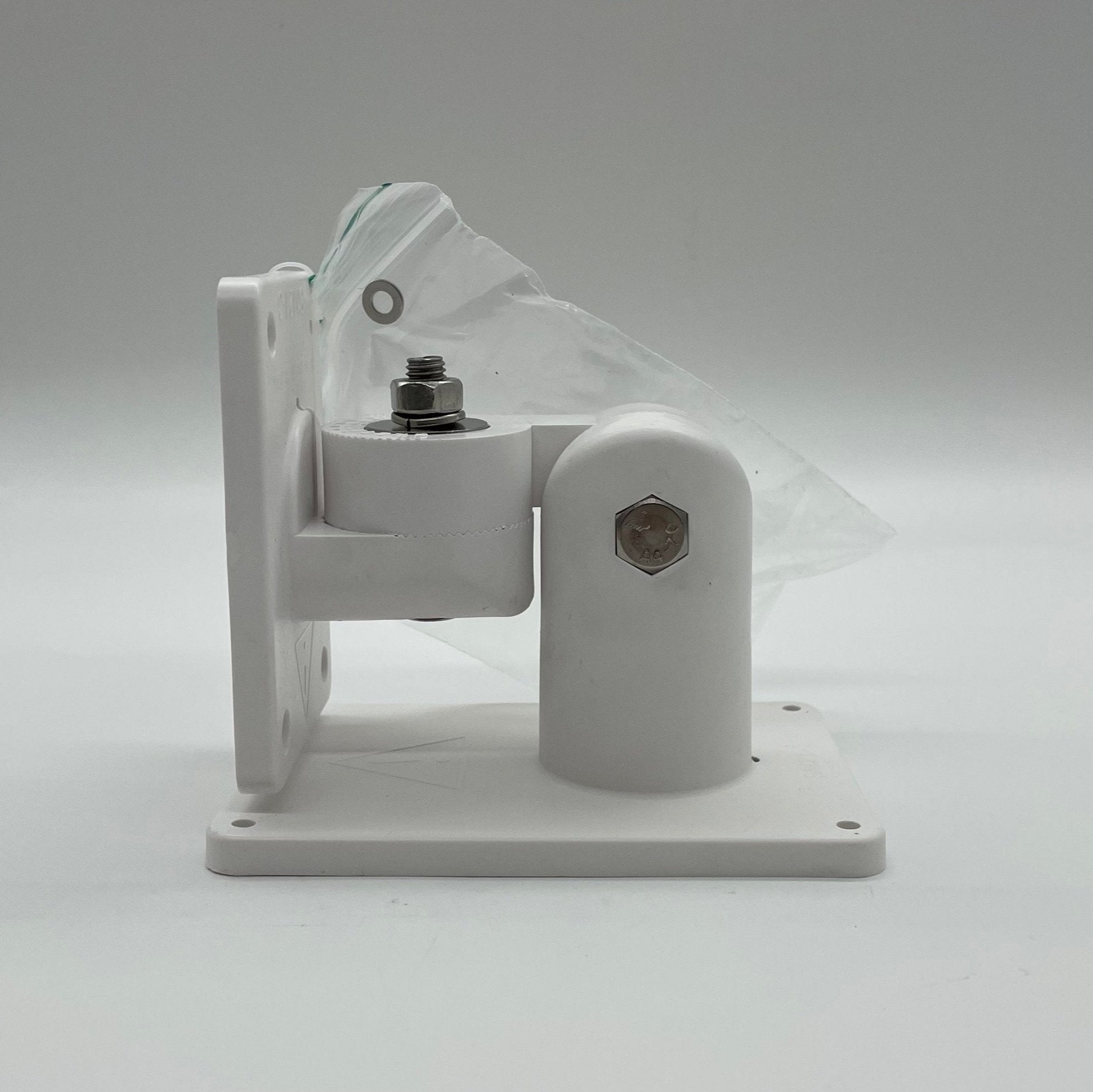

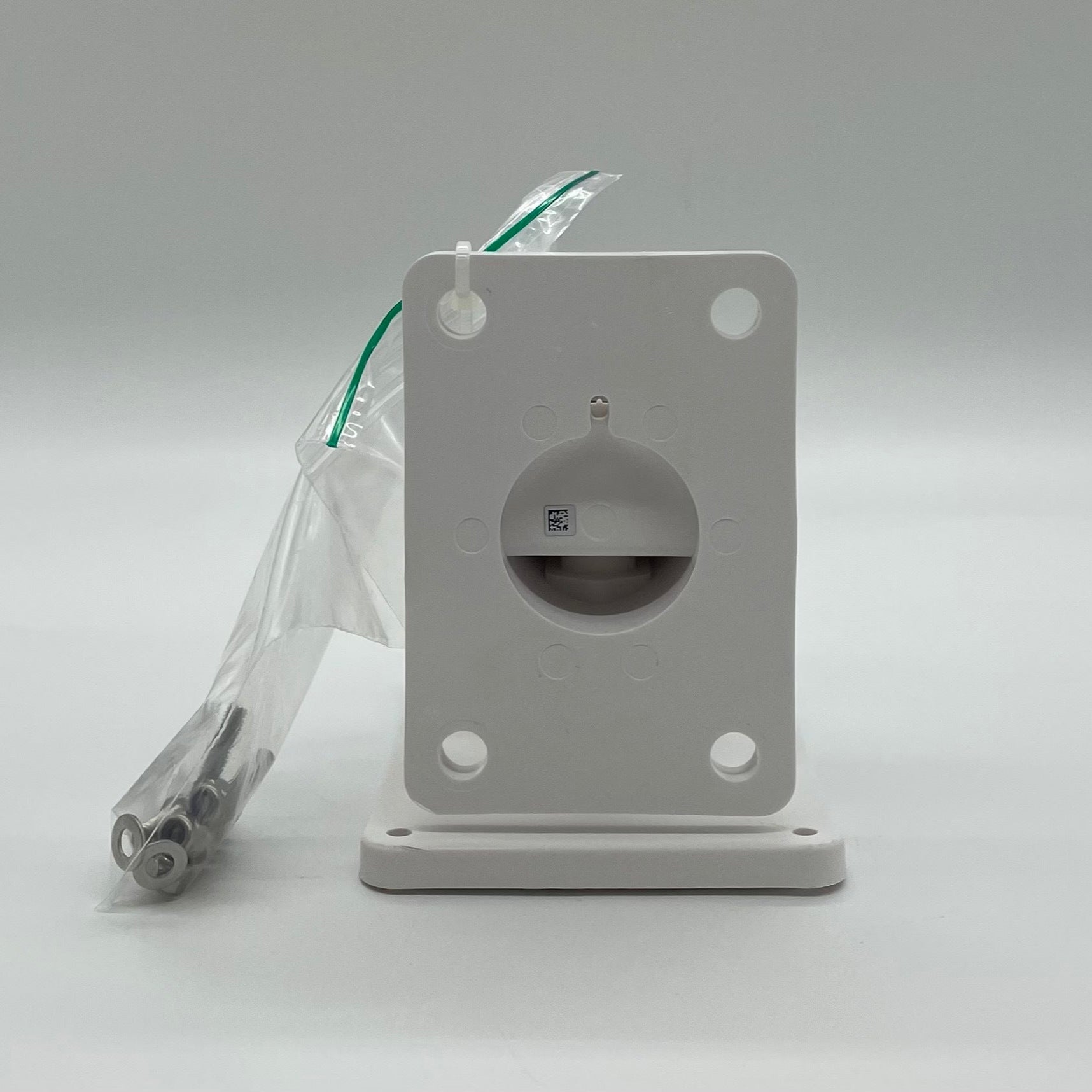

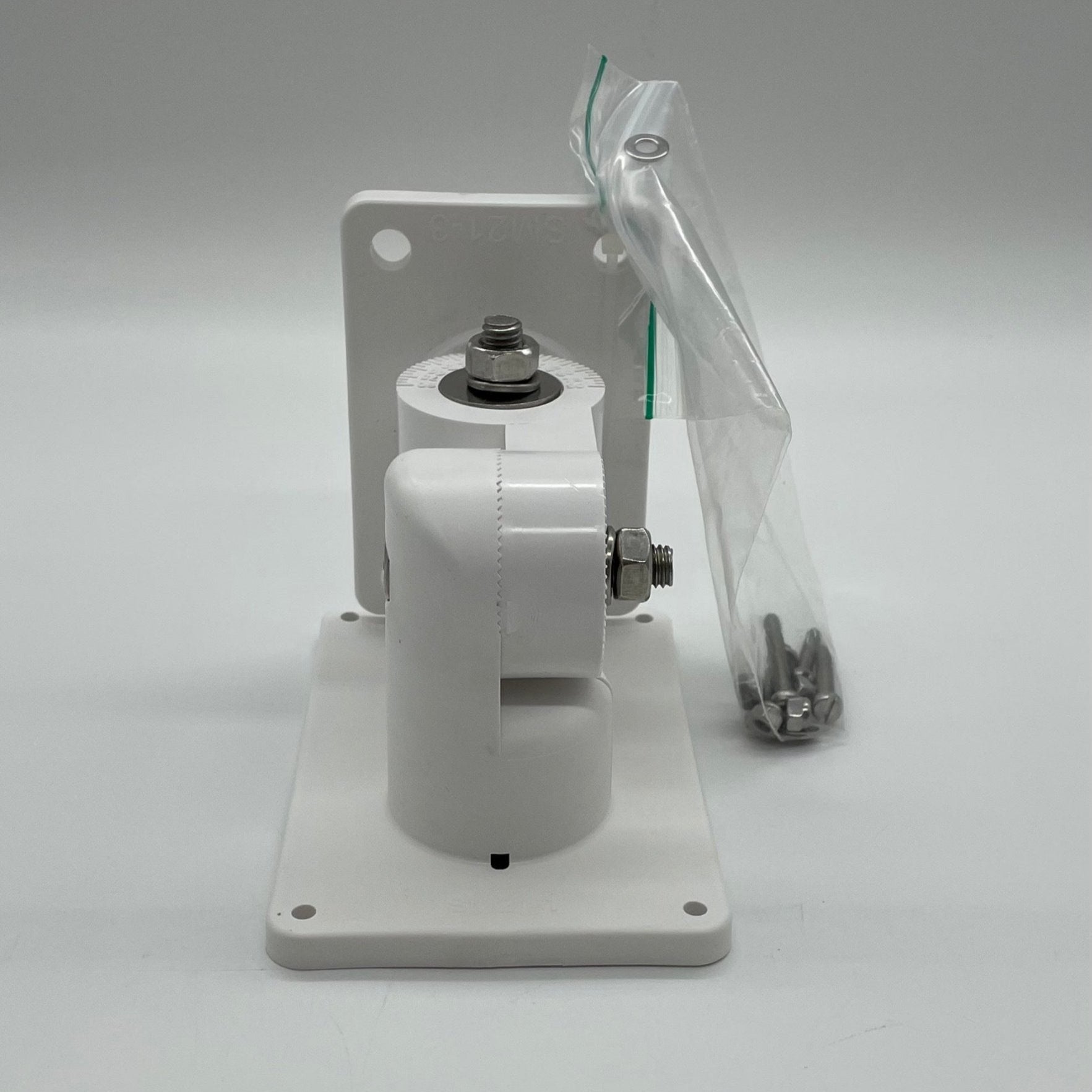

Honeywell FSL100-SM21 — swivel mounting bracket for the Honeywell FSL100 Series of UV, UV/IR and IR3 flame detectors.
The FSL100 detectors do not include a swivel mount, so the FSL100-SM21 is ordered separately when the detector has to be installed and aimed at the area it covers. The bracket is molded from UV-resistant PA66 and uses stainless steel fixings, so it suits the same indoor and outdoor locations as the detector.
Specifications
| Model |
FSL100-SM21 |
| Type |
Swivel mount for FSL100 flame detectors |
| Material |
PA66, UV resistant |
| Fixings |
Stainless steel |
| Weight |
280 g (0.62 lb) |
| Compatible detectors |
FSL100-UV, FSL100-UVIR, FSL100-IR3 |
Installation notes
- Swivel mount brackets are ordered separately from the detector
- The FSL100 detectors have a 90° minimum cone of vision horizontally and vertically, so aim the bracket to cover the protected area
- The FSL100-TL test lamp is available for long-range testing after installation
Related models
- FSL100-UVIR: UV/IR flame detector
- FSL100-IR3: triple IR flame detector
Documents
FAQ
Is the swivel mount included with FSL100 detectors?
No. Swivel mount brackets need to be ordered separately from the FSL100-UV, FSL100-UVIR and FSL100-IR3 detectors.
What is it made of?
The mount is UV-resistant PA66 with stainless steel fixings and weighs 280 g (0.62 lb).
How wide is the detector view it aims?
FSL100 detectors have a 90° minimum cone of vision horizontally and vertically, with a range of up to 110 ft for IR3 and 80 ft for UV and UV/IR models.
