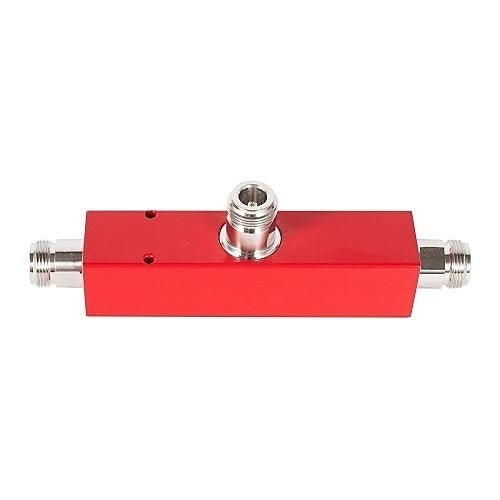

Honeywell BDA BDA-TP30-L2 High Power Tapper, 136-960 MHz, Rectangle Symbol
The BDA-TP30-L2 is a 30 dB high power RF tapper for passive distributed antenna systems, covering 136-960 MHz. It splits the input unequally between a through port and a branch port (nominal ratio 1000:1), which lets a designer balance signal levels along a coaxial run. It covers the VHF, UHF, 700 and 800 MHz public safety bands and is rated IP65 for indoor or outdoor use.
Key Features
- Unequal power split for passive DAS / ERCES antenna distribution
- Covers VHF, UHF, 700 and 800 MHz public safety bands (136-960 MHz)
- Low insertion loss and low VSWR
- IP65, indoor/outdoor use
- Type N connectors
- Label carries a rectangle symbol to identify the tap value
Specifications
| Frequency range |
136-960 MHz |
| Nominal ratio |
1000:1 / 30 dB |
| Output split (through / branch) |
-0.3 / -30.1 dB |
| Branch level at 698-960 MHz |
30.1 +/-1.8 dB |
| Input VSWR, max |
1.25:1 |
| Average power |
300 W |
| Humidity |
5-95% |
| Label symbol |
Rectangle |
Compatible With
- Fiplex by Honeywell BDA and fiber DAS (ERCES) passive antenna networks
