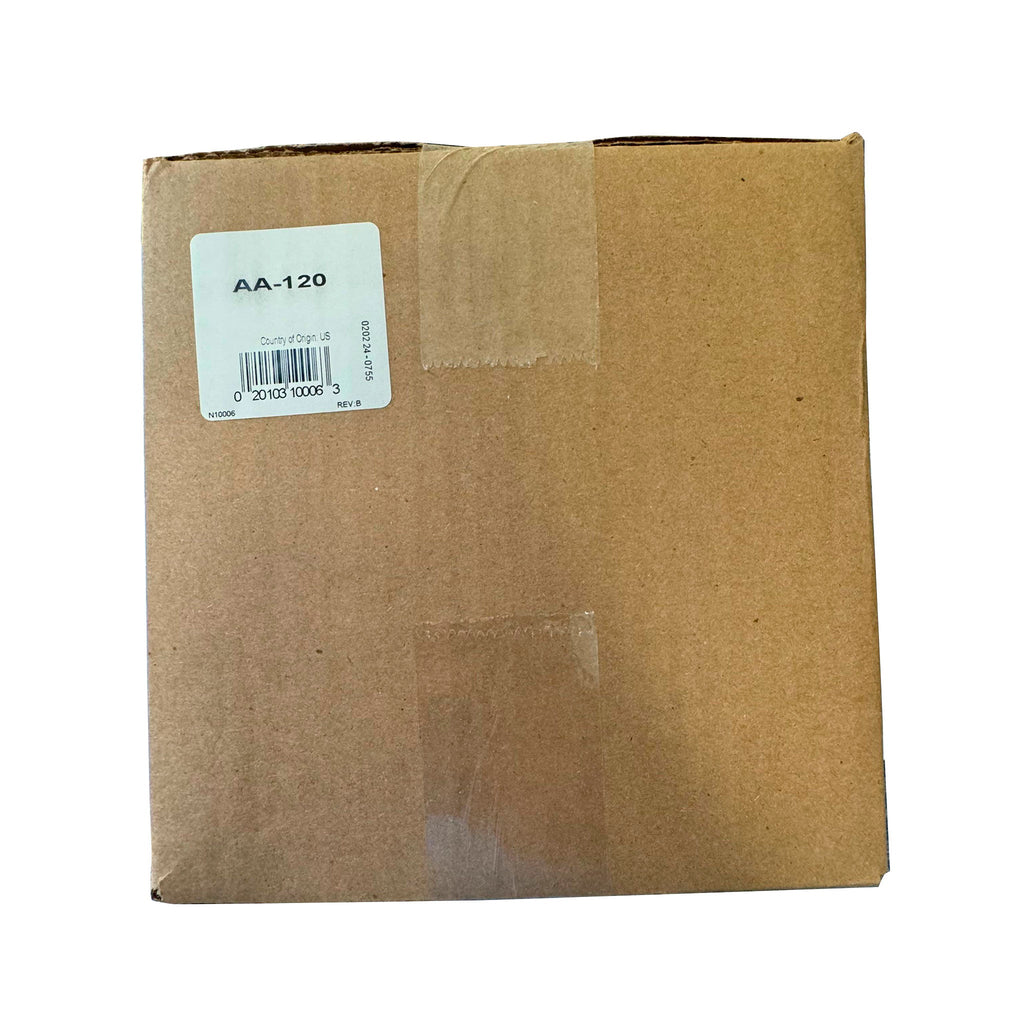

Honeywell AA-120 audio amplifier: up to 120 watts for 25 Vrms speaker circuits
The Honeywell AA-120 (also searched as AA 120 or AA120) is a Notifier AA Series audio amplifier that provides up to 120 watts RMS of power for driving 25 Vrms speaker circuits in fire alarm voice evacuation systems. One 25 Vrms output is provided.
Features
- 120 watts RMS at 25 Vrms output
- Low-power standby mode for low battery drain
- Grouped or one-to-one backup amplifier switching bus
- Battery input and brownout switch-over control, with battery supervision and overload protection
- Built-in automatic backup tone generator (slow whoop or high/low)
- 10-position level adjust with LEDs for normal level, incorrect level, amplifier, speaker, brownout and battery trouble
- High-efficiency switched regulation and plug-in terminal strips
- Power-limited per UL requirements and NFPA as dictated by NEC Article 760
Specifications
| Model |
AA-120 |
| Output |
120 watts RMS, 25 Vrms |
| Input power |
120 VAC, 60 Hz (the AA-120E is the 220/240 VAC, 50 Hz version) |
| 120 VAC current |
306 mA standby, 1.85 A alarm |
| 24 VDC battery current |
51 mA standby, 7.3 A alarm |
| Frequency response (+3, -1 dB) |
170 to 7,500 Hz |
| Distortion at 1 kHz |
4.0% THD |
| Dimensions |
7.0 in. H x 19.0 in. W x 4.5 in. D |
| Weight |
16.0 lbs. |
| Listings |
UL S624, ULC, FM Approved, CSFM, MEA |
Compatibility
The AA-120 mounts in a 19 in. rack or in Notifier CAB-3/CAB-4 Series and EQ Series cabinets; its integral chassis means a separate mounting chassis is not required. It works with classic audio systems such as the AMG-1, and with the Digital Voice Command (DVC) series when used with the DVC-AO analog audio option.
AA-120 or AA-100?
The AA-120 gives 120 watts at 25 Vrms on a single output. The AA-100 delivers up to 100 watts RMS at 70.7 Vrms on dual outputs, with combined output not to exceed 100 watts. Choose by the speaker circuit voltage in the design. The AA-30 is a 30-watt, 25 Vrms model.
Specifications taken from the Honeywell data sheet "AA Series Audio Amplifiers." Manufacturer specifications are subject to change without notice.
