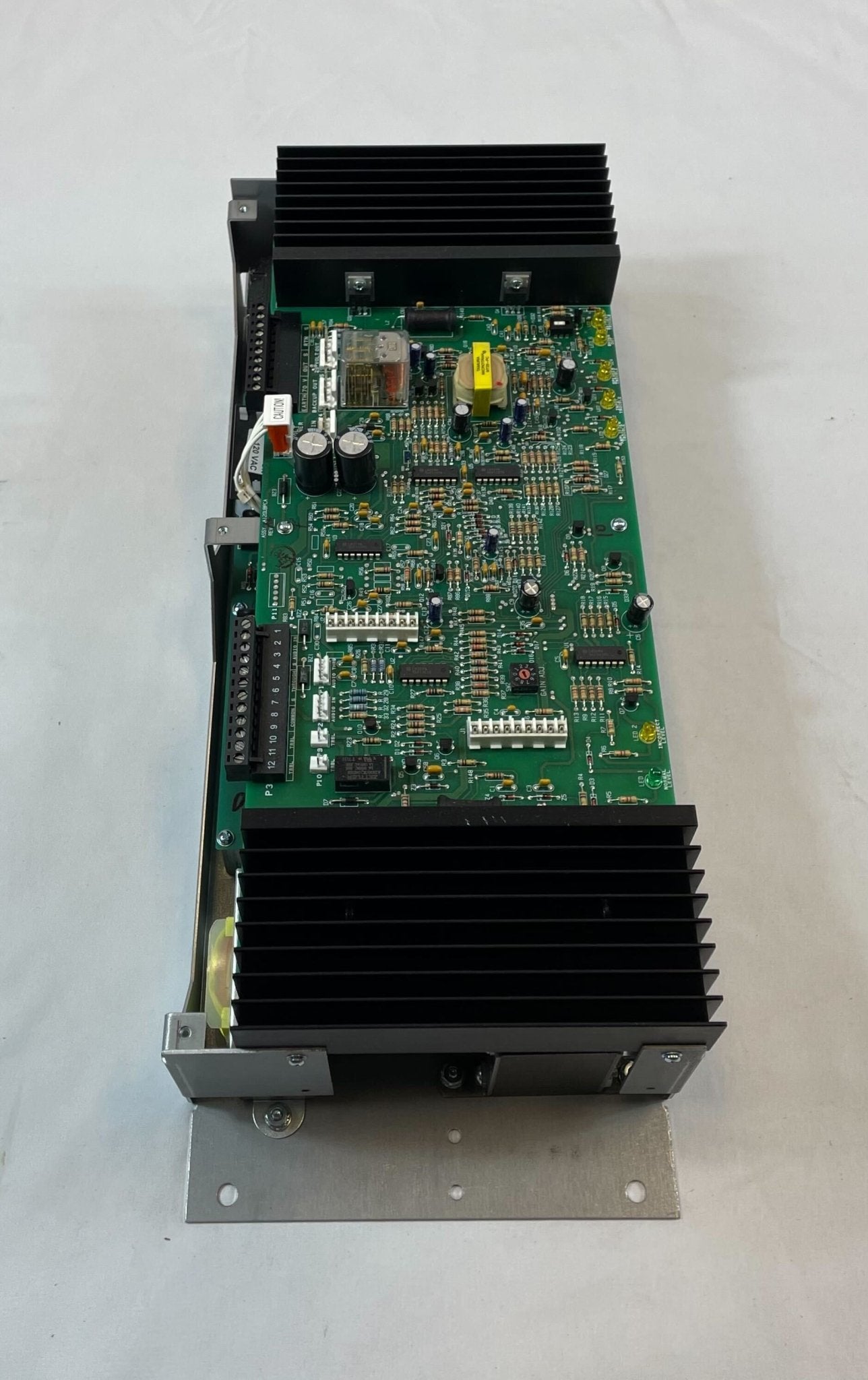

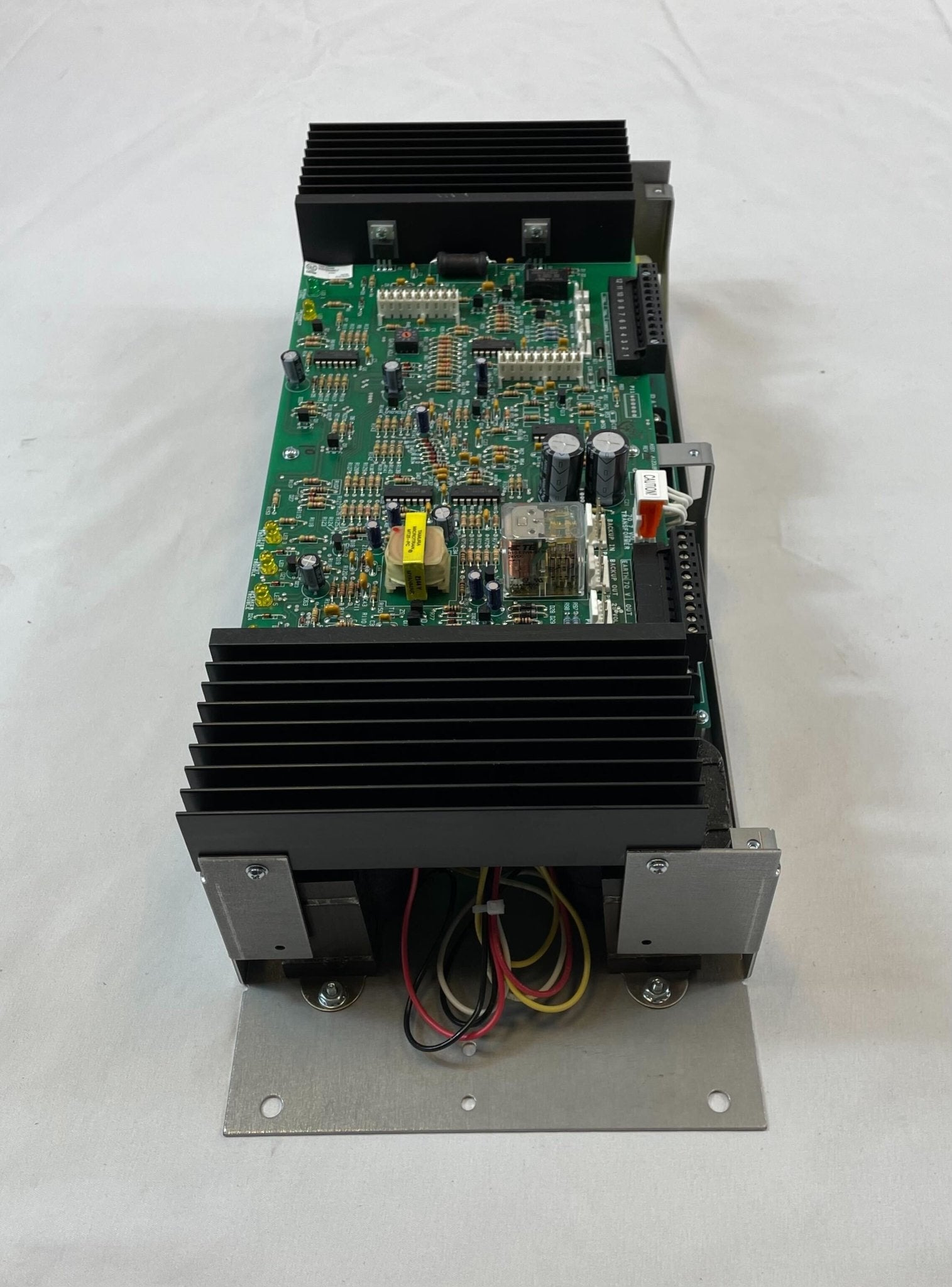

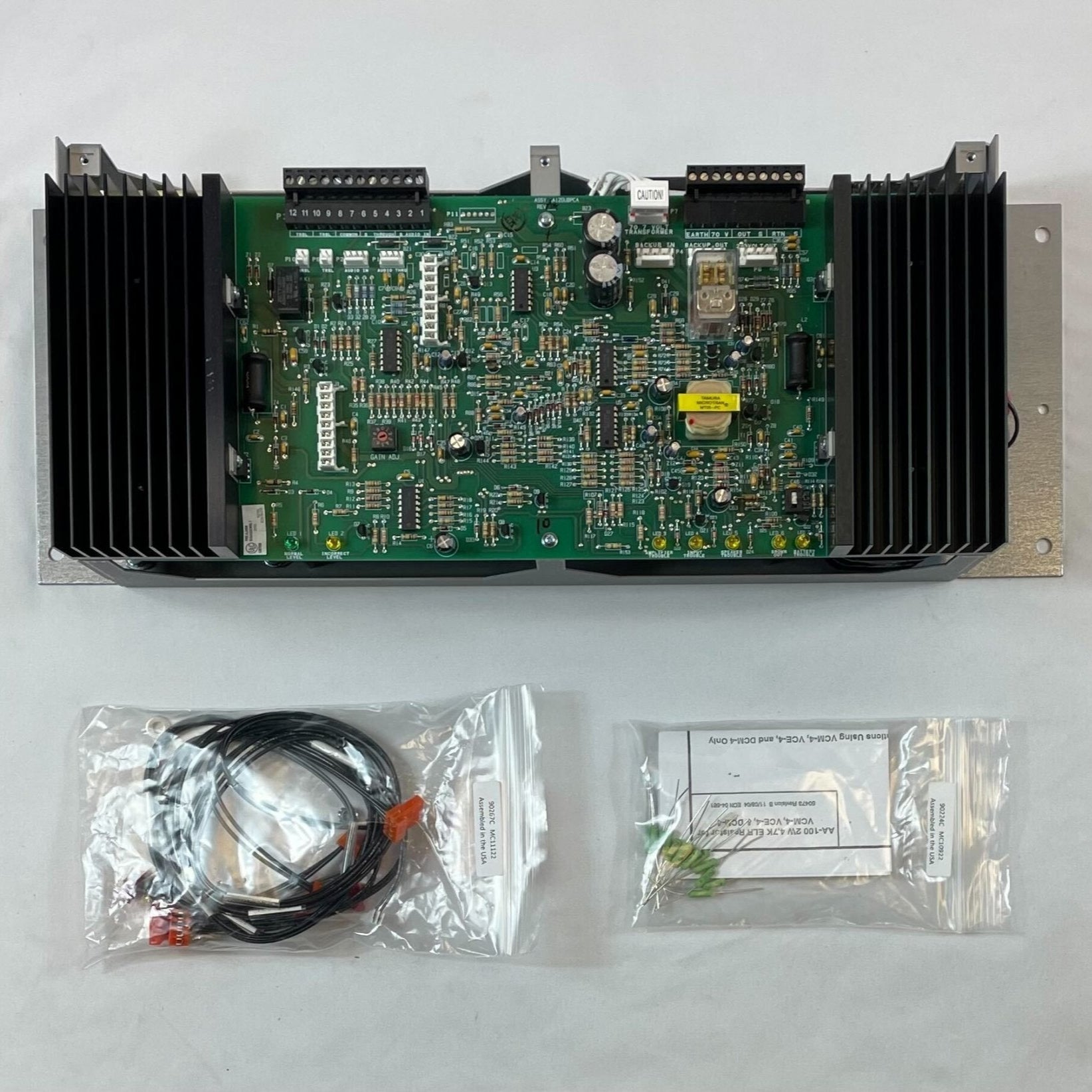

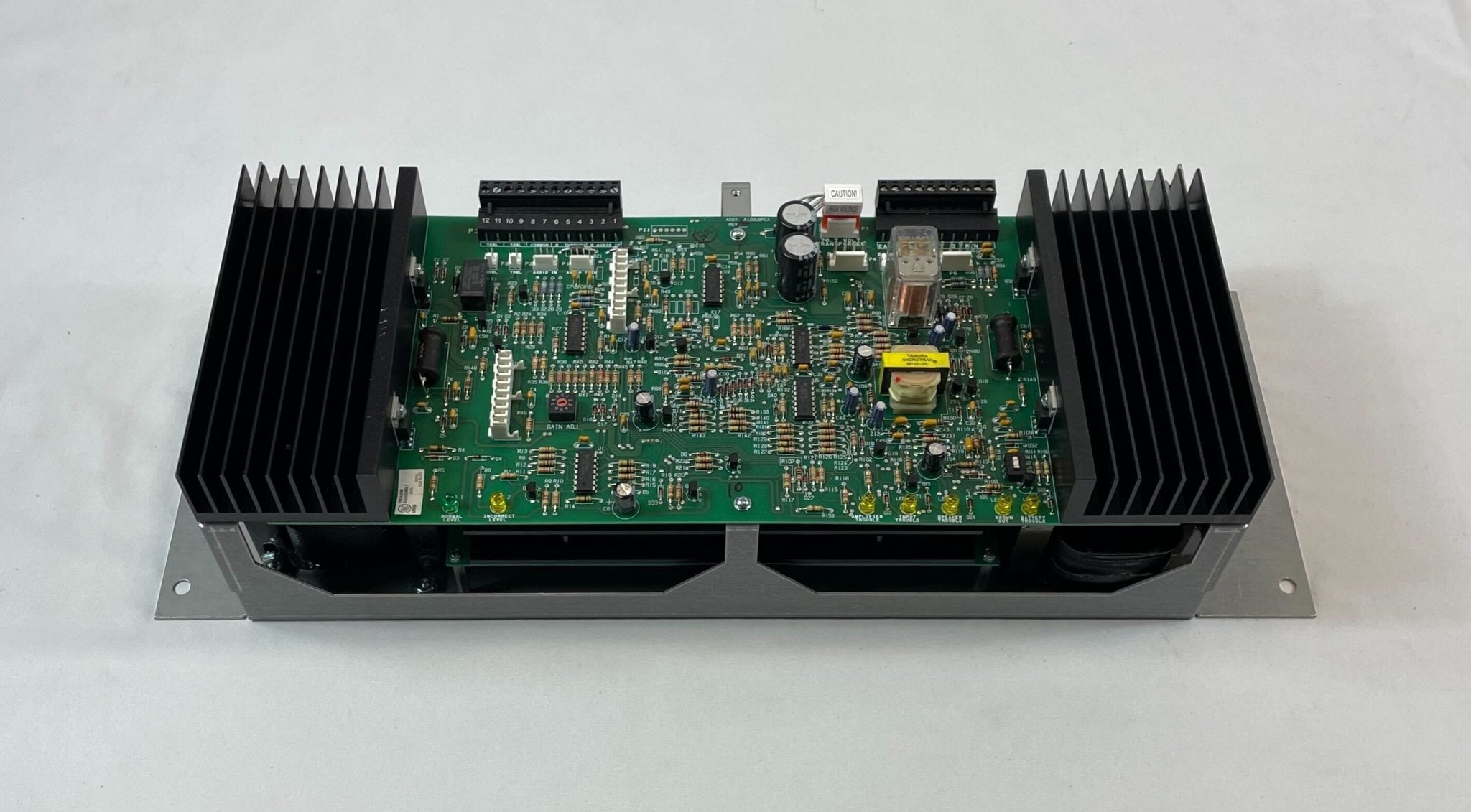

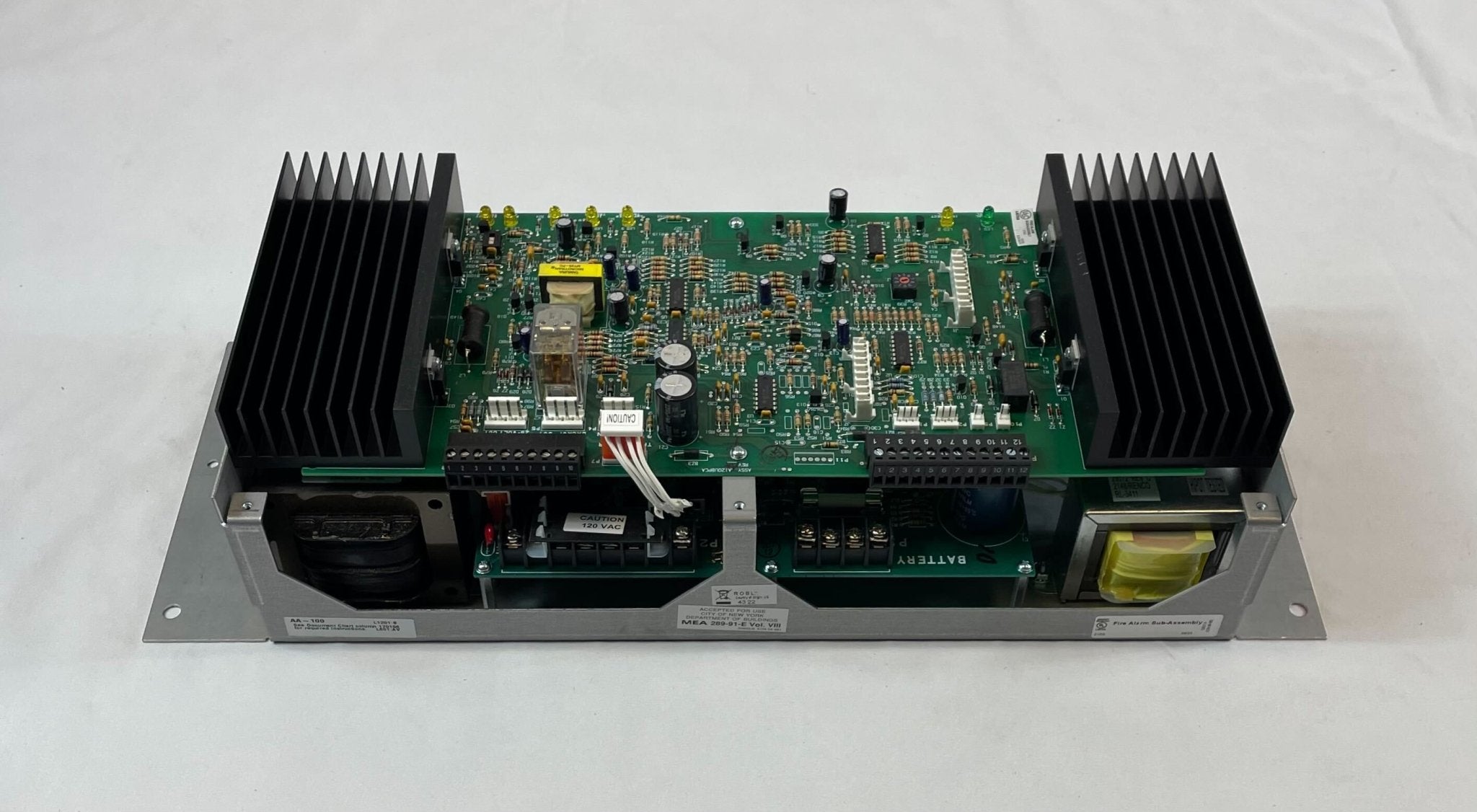

Honeywell Notifier AA-100 — AA Series analog audio amplifier, 100 W RMS at 70.7 Vrms, 120 VAC, for Notifier voice evacuation systems.
A high-level amplifier for classic Notifier audio such as the AMG-1, or for DVC Digital Voice Command with the DVC-AO analog audio option. It carries its own power supply, battery switch-over, amplifier supervision, backup amplifier switching and a built-in backup tone generator, slow whoop or high/low.
- Dual outputs, combined not to exceed 100 W at 70.7 Vrms
- Frequency response 170–7,500 Hz; THD 4.0% at 1 kHz
- 120 VAC, 60 Hz: 306 mA standby, 1.85 A alarm
- 24 VDC battery: 51 mA standby, 6.5 A alarm

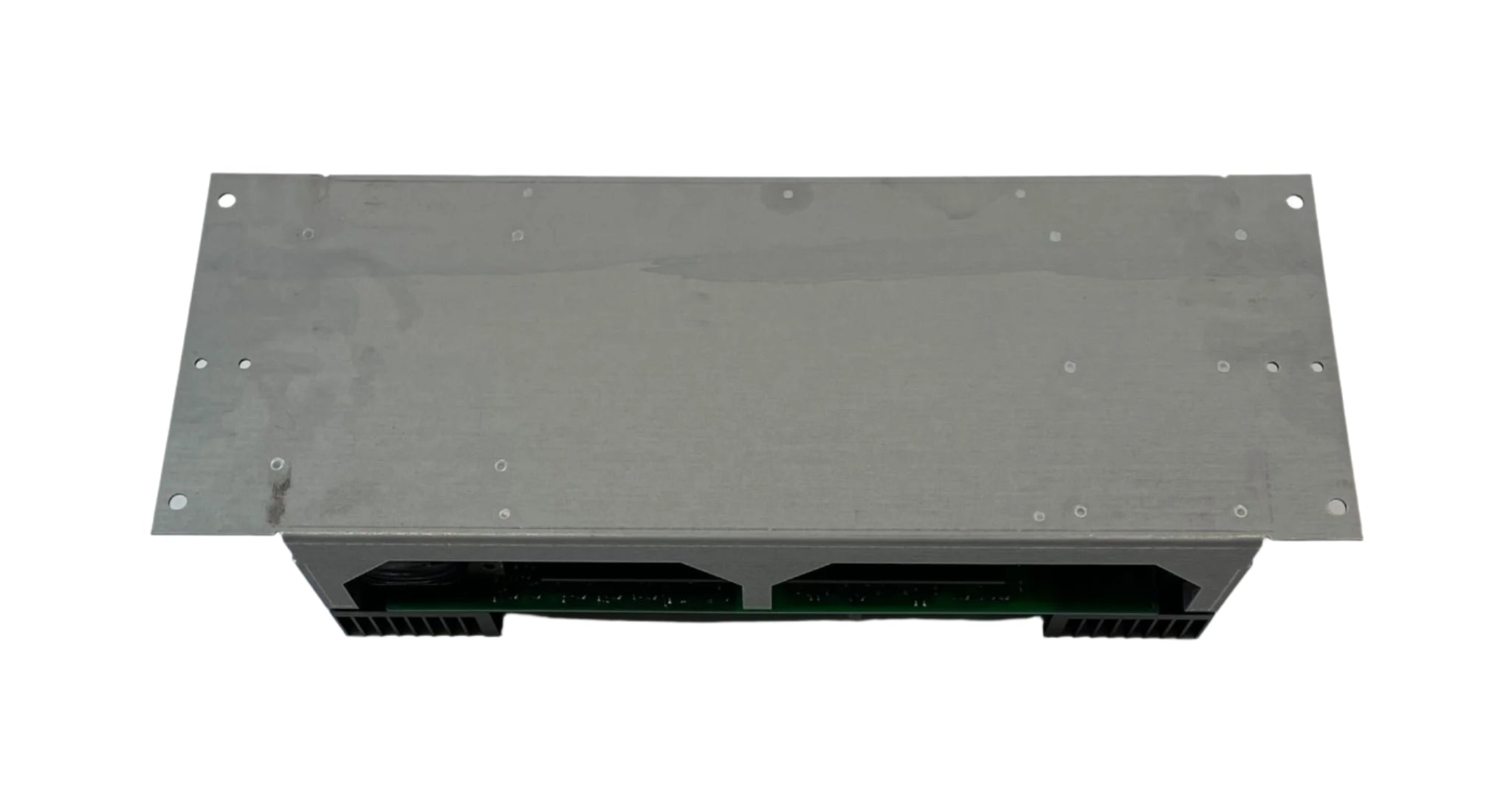

- 7.0 × 19.0 × 4.5 in., 16 lb; integral chassis for CAB-3/CAB-4 or EQ cabinets, or a 19 in. rack
- AA Series agency block: UL S624, ULC, CSFM, FM
The AA-120 (120 W) and AA-30 (30 W) are the 25 Vrms models, and the AA-100E is the 220/240 VAC, 50 Hz version of this amplifier.
Documents
FAQ
Which voice systems is the AA-100 compatible with?
It works with classic Notifier audio systems such as the AMG-1, and with the DVC Digital Voice Command when the DVC-AO analog audio option is used.
How much power does it deliver?
The AA-100 provides dual outputs of up to 100 W at 70.7 Vrms, with the combined outputs not to exceed 100 W.
Where can it be mounted?
It has an integral chassis for CAB-3/CAB-4 Series or EQ Cabinet Series enclosures, and it can also mount in a 19 in. rack.
Does it have a backup tone?
Yes. It includes a built-in automatic backup tone generator (slow whoop or high/low) and a backup amplifier switching bus.
