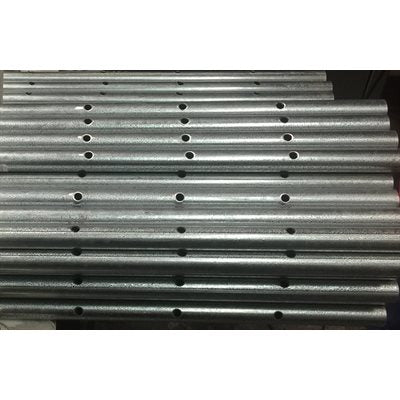

Hochiki STS-10 is the model designation (STS-10.0) of the 10 ft sampling tube used as the air intake tube on the Hochiki DH-100-A analog duct smoke detector. Two tubes protrude into the duct: a 7.5 in exhaust tube supplied with the detector, and an intake tube sized to the duct. The 10 ft length covers the widest ducts and is cut to size during installation.
Specifications
| Model |
STS-10 (STS-10.0) |
| Hochiki part number |
0400-01570 |
| Length |
10 ft |
| Compatible detector |
DH-100-A analog duct smoke detector |
Notes
- Intake tube for the DH-100-A analog duct smoke detector; the detector kit supplies the 7.5 in exhaust tube
- Cut to length to fit the measured duct width
- Sampling tubes come in 2.5 ft (STS-2.5, 0400-01580), 5 ft (STS-5.0, 0400-01590) and 10 ft (STS-10.0, 0400-01570) lengths
- Order the intake tube after the duct width is known; install per NFPA 90A and NFPA 72
Shorter 2.5 ft and 5 ft tubes are used on narrower ducts.
