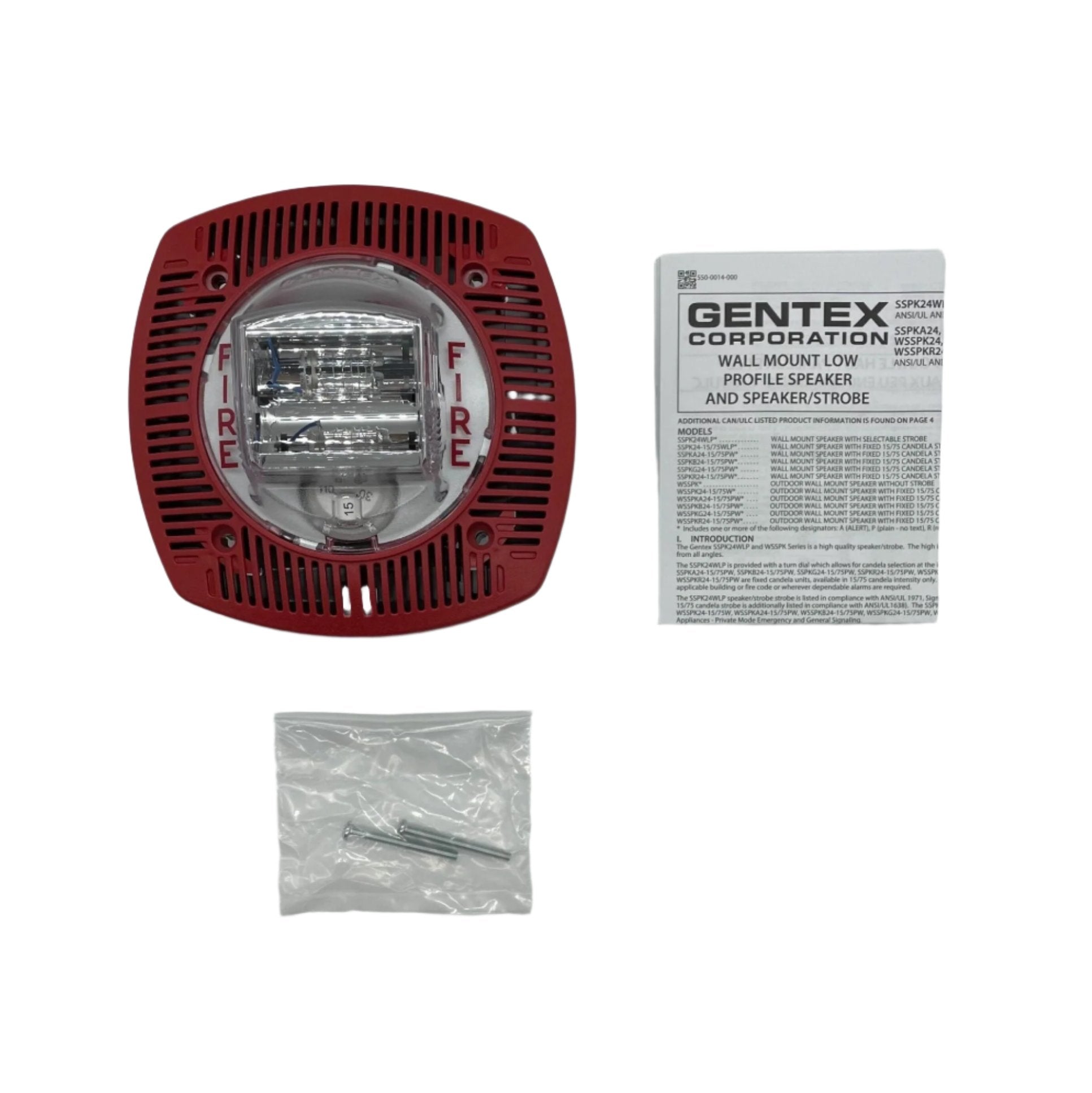

Gentex SSPK24WLPR (part no. 904-1413-002) is a low profile wall mount speaker strobe with a red faceplate and FIRE lettering. It combines a 25 or 70.7 VRMS speaker with field-selectable power taps and a 24 VDC strobe with tamperproof candela settings of 15, 30, 60, 75 and 110 cd. It mounts to a standard 4 in. square, 2-1/8 in. deep back box without an extension ring.
This model is discontinued. The replacement offered for it is the Gentex GSSR speaker strobe.
Specifications
| Model / part no. |
SSPK24WLPR / 904-1413-002 |
| Mounting |
Wall, indoor |
| Faceplate / lettering |
Red, FIRE |
| Strobe voltage |
24 VDC nominal (16 to 33 V DC or FWR) |
| Candela |
15, 30, 60, 75, 110 cd selectable |
| Strobe current at 24 VDC |
15 cd 55 mA; 30 cd 63 mA; 60 cd 88 mA; 75 cd 112 mA; 110 cd 136 mA |
| Speaker voltage |
25 or 70.7 VRMS, field selectable |
| Power taps |
1/8, 1/4, 1/2, 1, 2, 4 W |
| Sound output at 10 ft (70.7 V) |
73.7 dBA at 1/8 W to 87.9 dBA at 4 W |
| Frequency range |
400 to 4000 Hz |
| Wiring |

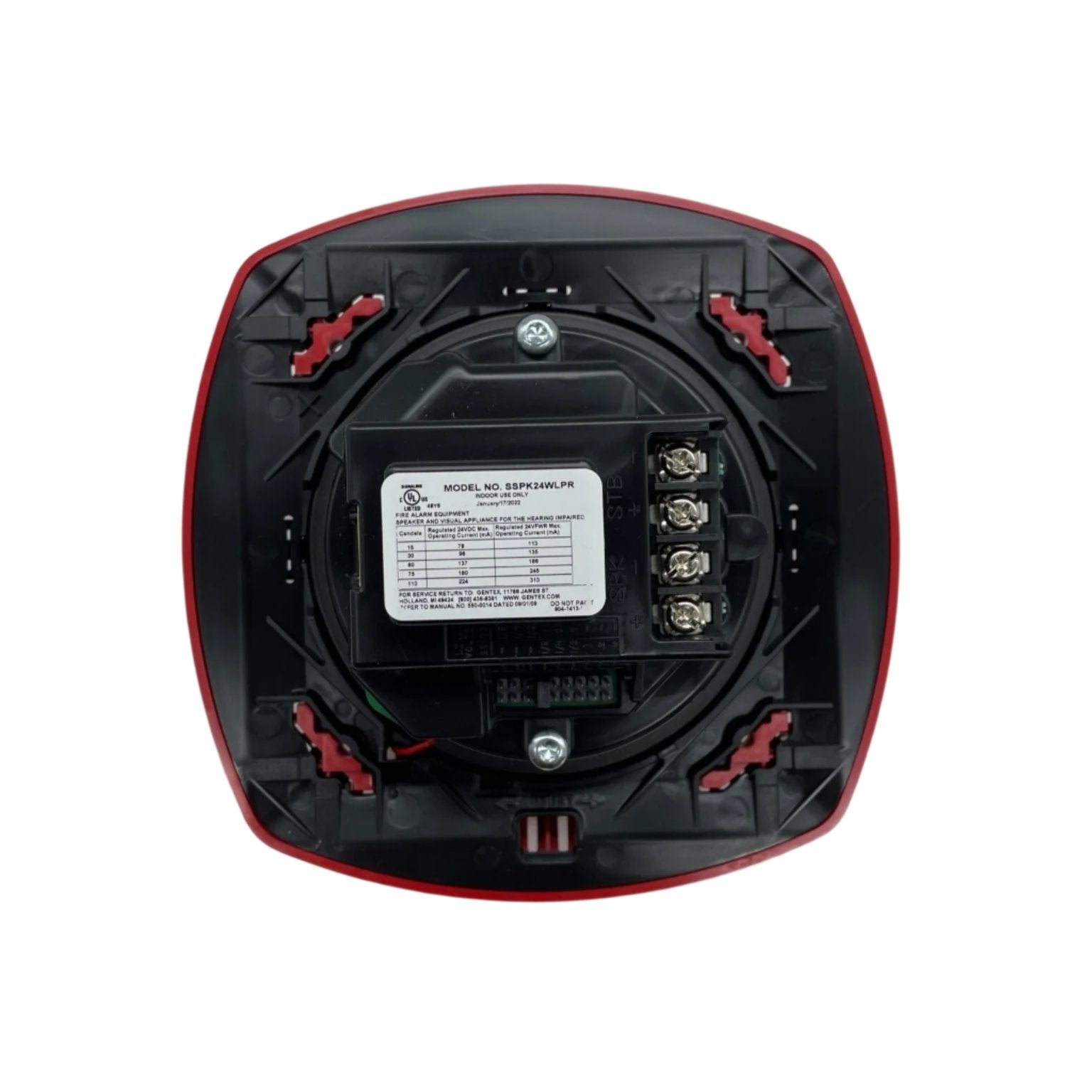

Screw terminals, separate in/out, 12 to 18 AWG |
| Dimensions |
6.1 in. square x 3.89 in. deep |
| Operating temperature |
32°F to 120°F (0°C to 49°C); not for outdoor use |
| Certifications |
ANSI/UL 1480, ANSI/UL 1971, CAN/ULC S526 and/or S541; CSFM 7320-0569:140; MEA 580-06-E |
Features
- Strobe synchronizes with the Gentex AVSM control module
- Tamperproof grill
- No extension ring needed on a 4 in. square box
- Not recommended for coded or pulsing signaling circuits
Related models
- GSSR: replacement speaker strobe
- SSPK24WLPW: white faceplate version
- SSPK24WLPAR: red faceplate with ALERT text
- SSPK24-15/75WLPR: fixed 15/75 cd version
Documents
FAQ
Is the SSPK24WLPR still available?
It is discontinued. The replacement offered for it is the Gentex GSSR speaker strobe.
Which candela settings does it have?
Tamperproof selectable 15, 30, 60, 75 and 110 cd. Strobe current at 24 VDC ranges from 55 mA at 15 cd to 136 mA at 110 cd.
Does it need an extension ring?
No. It mounts to a standard 4 in. square, 2-1/8 in. deep back box without an extension ring.
Can the strobes be synchronized?
Yes, with the Gentex AVSM control module.
