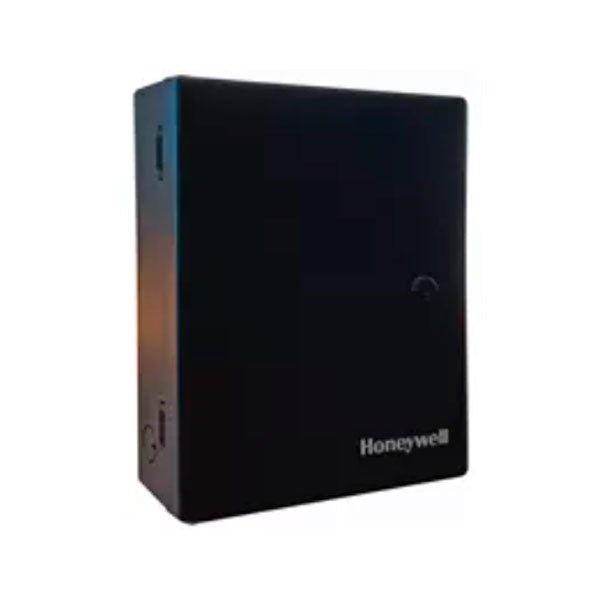

The Gamewell-FCI S3B-CLSS-KIT-V is a bundle of three parts: an SLP-BLK S3 Series addressable fire alarm control panel, a CLSS Gateway and a Verizon module. The S3 Series is a microprocessor-based panel for small to mid-sized buildings. The CLSS Gateway connects the system to Honeywell's Connected Life Safety Services (CLSS) cloud.
Key Features
- SLP-BLK: SLP addressable control panel in a black S3 SLP-BB enclosure
- 4.3 in color touchscreen display with five programmable function buttons
- One SLC loop, expandable to two. Each loop supports up to 318 System Sensor protocol devices or 126 Apollo protocol devices
- Four Class B or two Class A NACs, with System Sensor, Cooper-Wheelock or Gentex strobe synchronization
- The CLSS Gateway reads device inventory from one panel or a network of panels and sends it to the CLSS Cloud
- With the cellular module and feature activation, the gateway can also act as a fire alarm communicator to a central station
Specifications
-
Manufacturer: Gamewell-FCI (Honeywell)
-
Part Number: S3B-CLSS-KIT-V
-
Kit Contents: SLP-BLK panel, CLSS Gateway, Verizon module
-
Panel Power Supply: 7.0 A (120 VAC or 240 VAC)
-
Device Capacity: Up to 636 System Sensor devices or 252 Apollo devices per panel with the second loop
-
Networking: Up to 122 nodes with S3/E3 Series panels, or 64 nodes with 7100 Series
-
Connectivity: Built-in Ethernet port for programming, reports and FocalPoint workstation connection
-
Listing: ANSI/UL 864, 9th Edition (S3 Series)
Compatibility
The S3 Series datasheet says the SLP-BLK needs an SLC-PM or SLC95-PM loop personality module for its SLC loops. The S3 Series is designed as an upgrade path for legacy FCI 7100 and Gamewell 602 Series panels.
