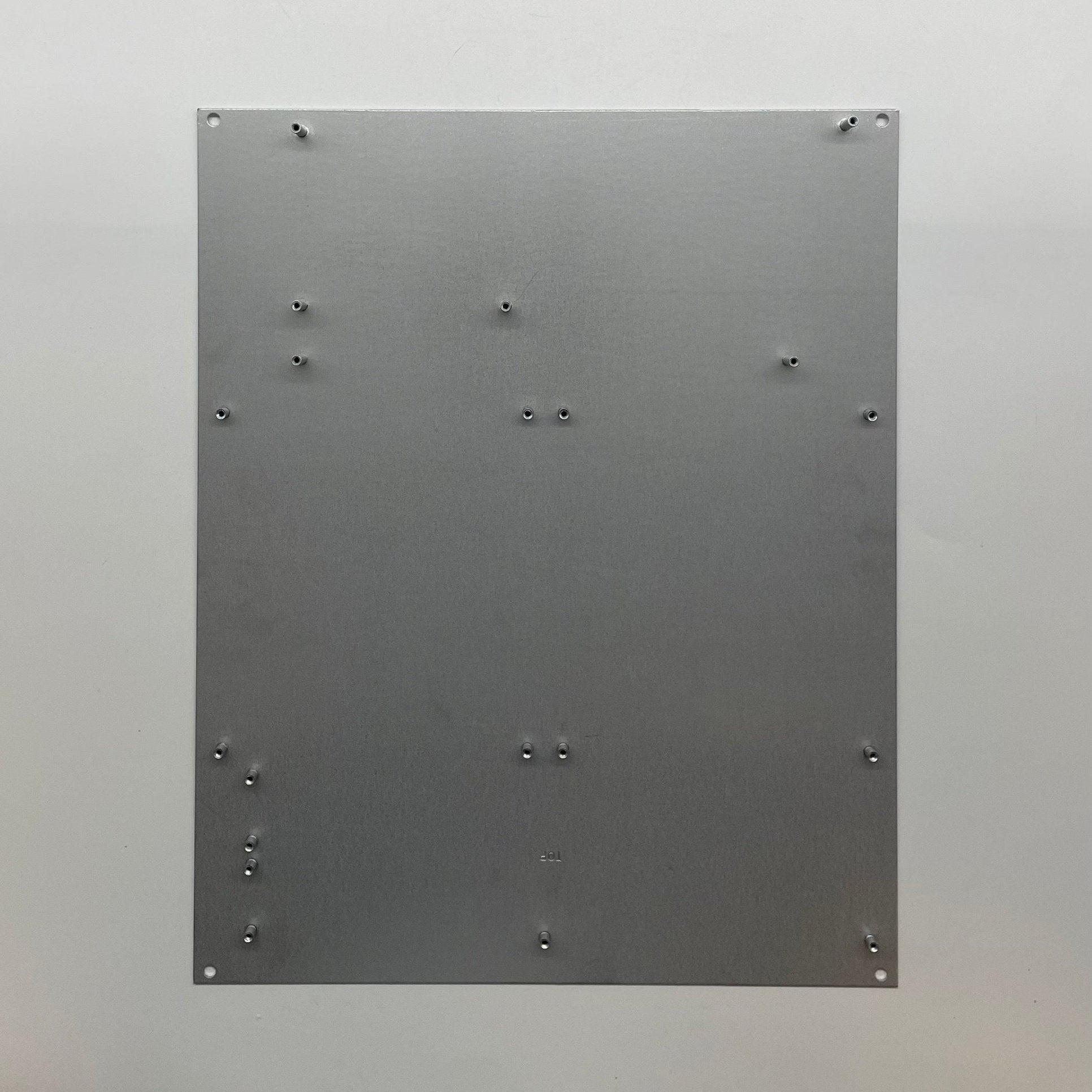

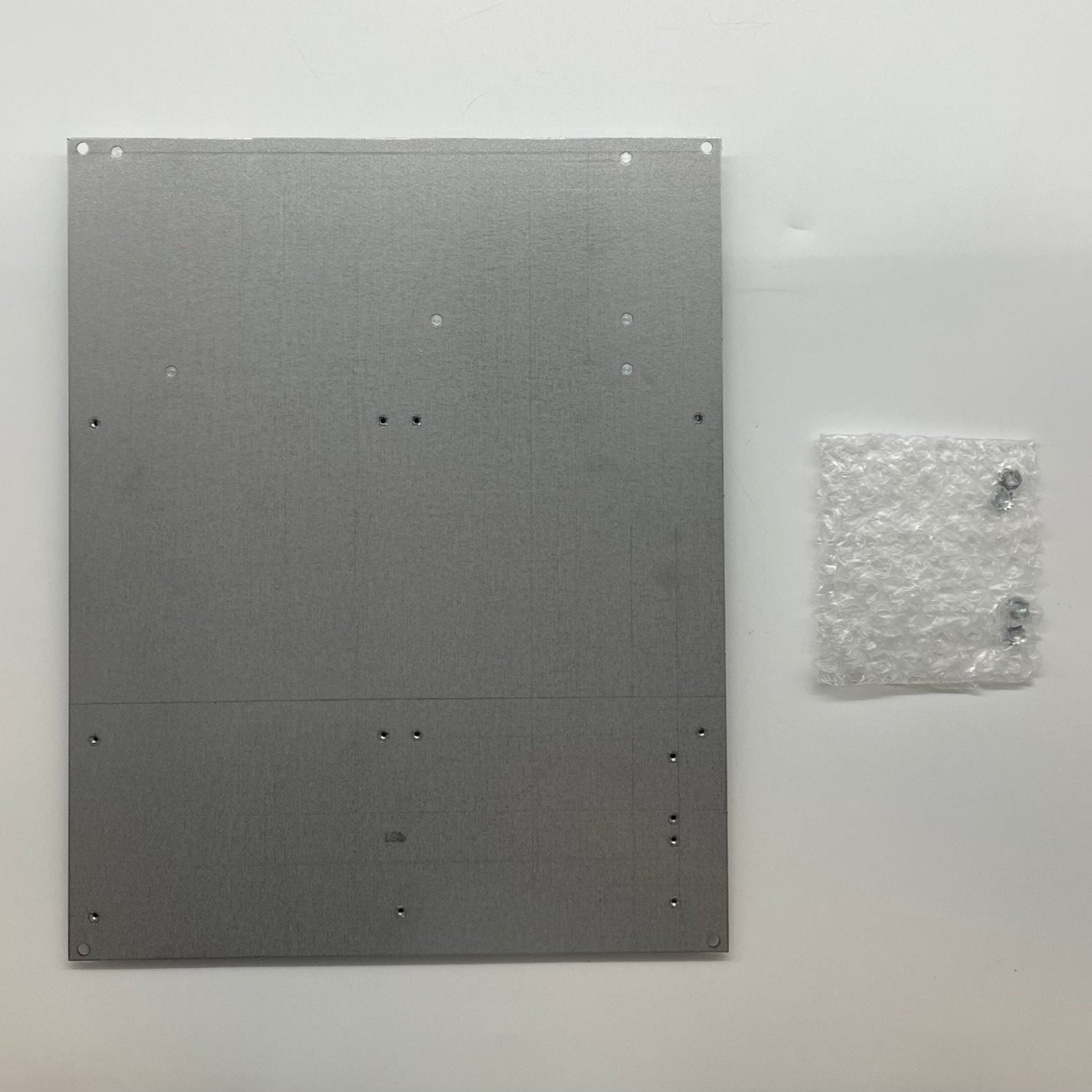

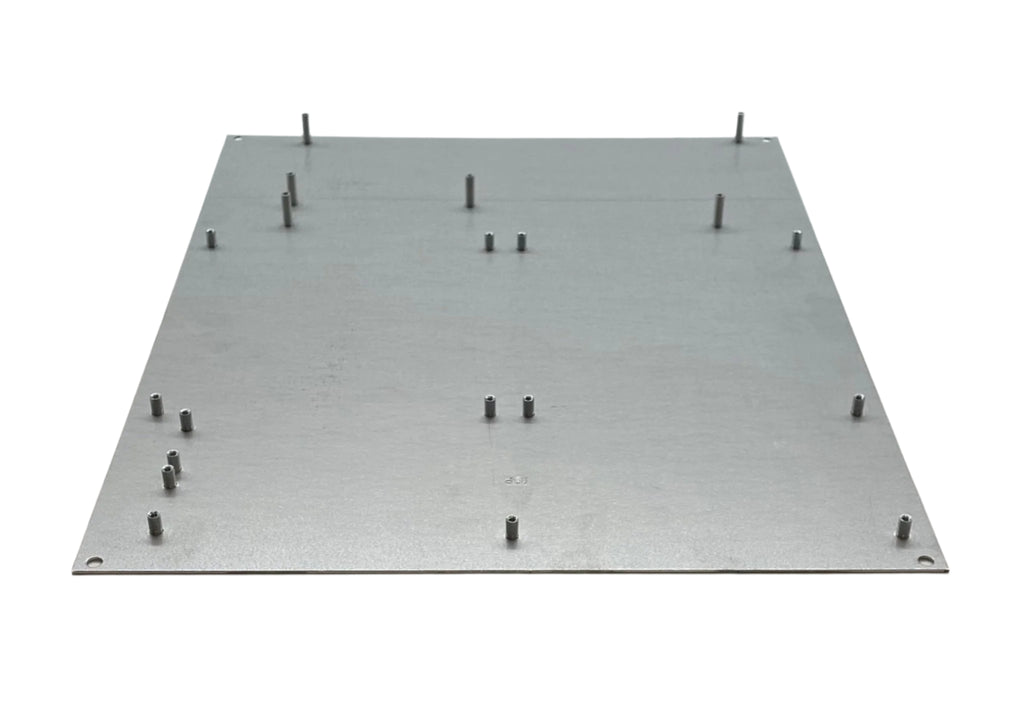

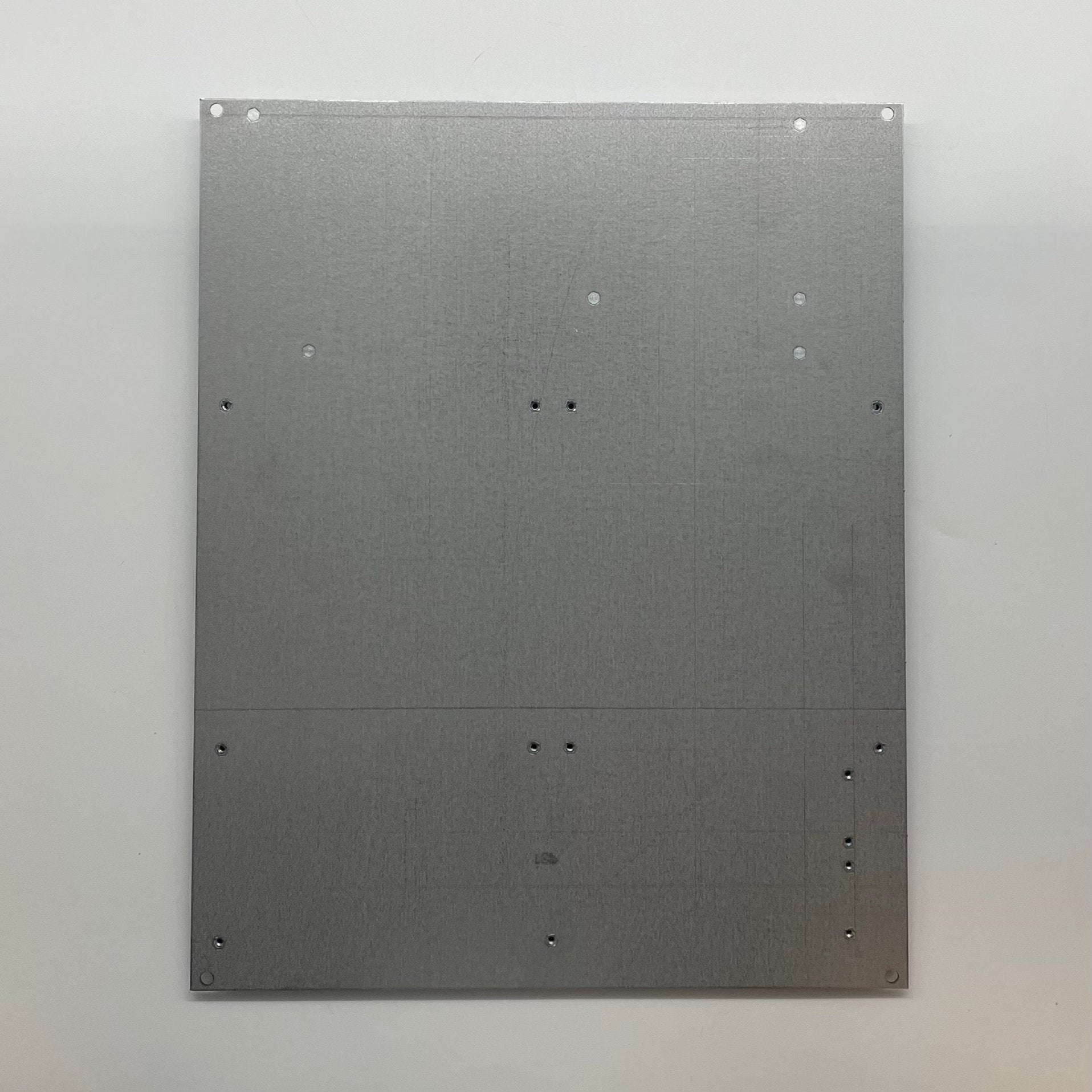

Gamewell-FCI S3-B-PLATE — module mounting plate for the S3 Series B-size cabinet.
Gamewell-FCI punches every cabinet backbox with mounting patterns so the installer can arrange and secure sub-assemblies, and it catalogs the plates that carry them by panel family and cabinet letter. B size is the 19-3/8 in square enclosure the S3 Series takes where the slim SLP-BB box is too small. Gamewell-FCI publishes no standalone datasheet for this plate, so no gauge, finish or weight is claimed.
- For the S3 Series B-size cabinet, 19-3/8 in W × 19-3/8 in H × 4-1/2 in D
- Ordered as S3BB-BB (black) or S3BB-RB (red)
- Cabinet houses the SLP main board, FLPS-7 supply, SLC-PM or SLC95-PM loop card, LCD-SLP, batteries, plus optional DACT-E3, RPT-E3-UTP, ASM-16 and ANU-48
Plates do not cross cabinet sizes or panel families. The C-size plates are E3-ILI-CPLATE, E3-INCC-CPLATE and E3-INX-CPLATE, the D-size are E3-INCC-D-PLATE and E3-INX-D-PLATE, and the B-Slim retrofit enclosure carries its own backplate.
