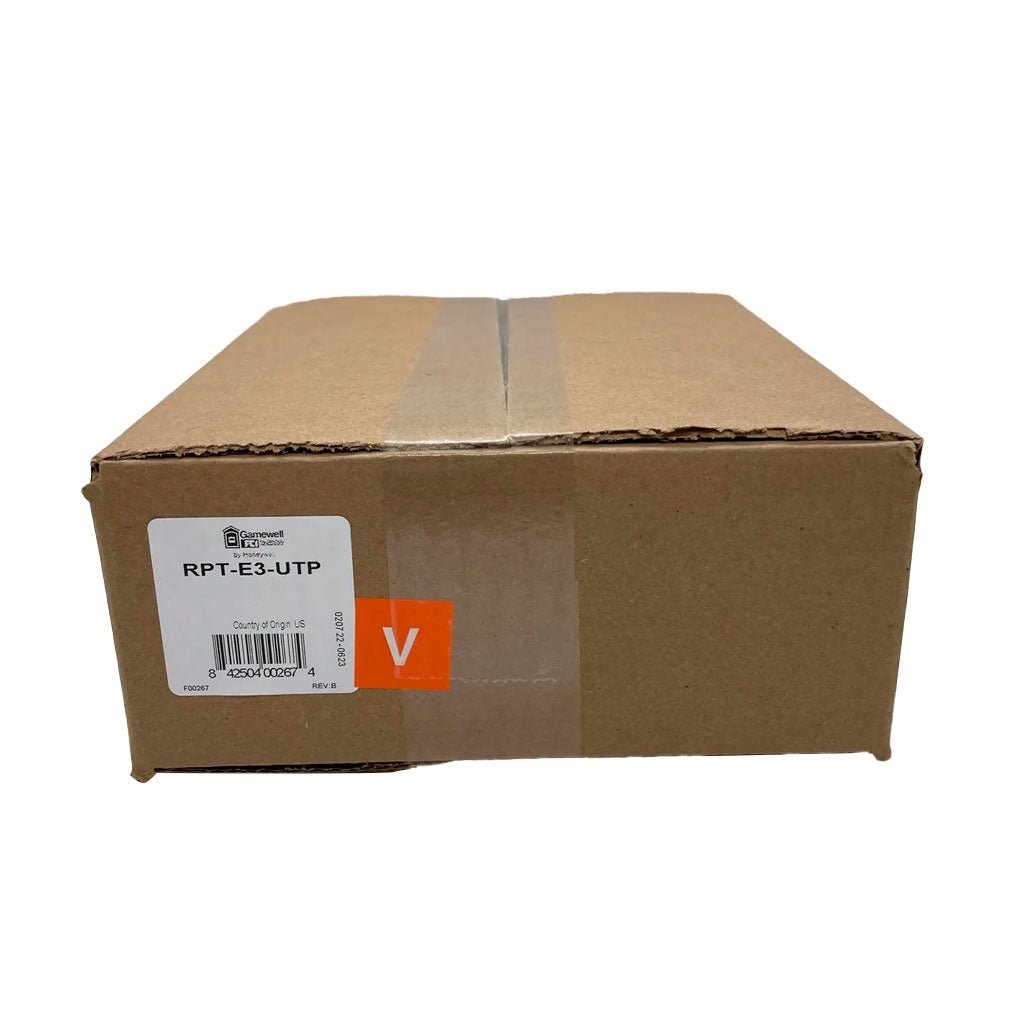

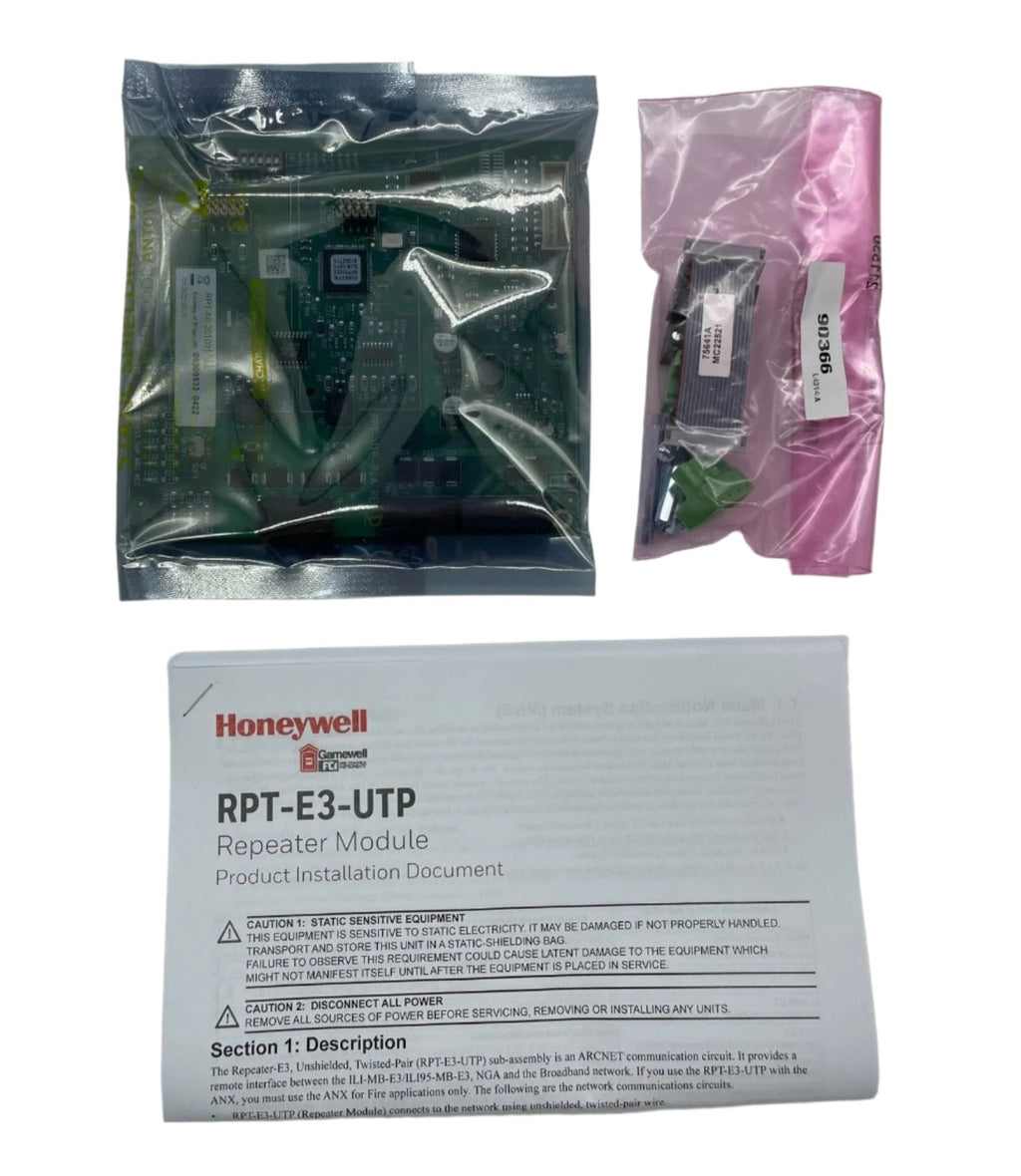

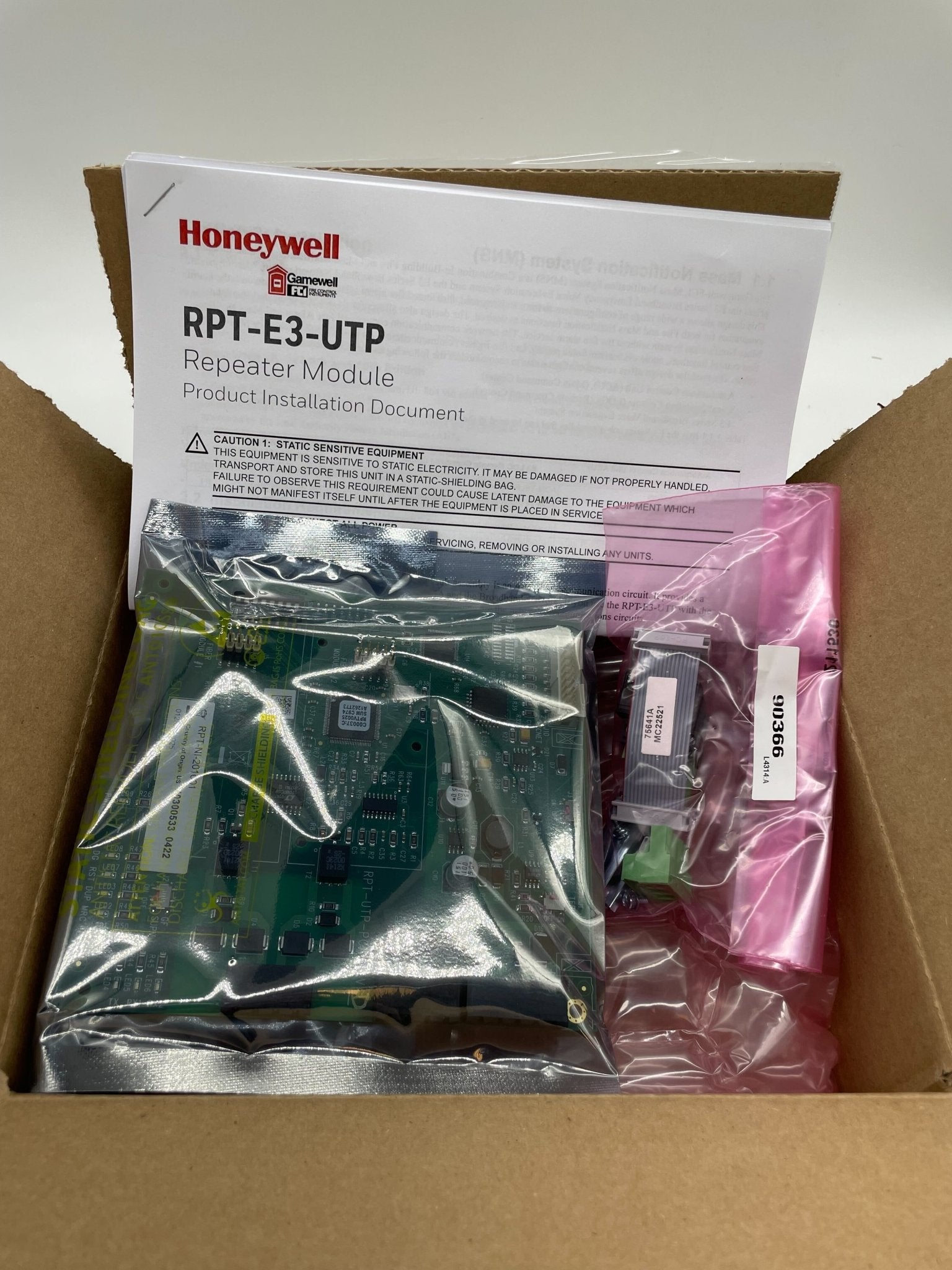

Gamewell-FCI RPT-E3-UTP — ARCNET network repeater module that lets remote E3 Series® and S3 Series sub-assemblies join the Broadband network over unshielded twisted-pair copper wire.
The RPT-E3 is an optional component of the E3 Series and S3 Series fire alarm control panels and serves as the network communication circuit used with the E3 Series system. It connects remote ILI-MB-E3 / ILI95-E3 Series boards, the S3 Series SLP (Smart Loop Panel) main board, ANX-SR / ANX-MR-UTP / ANX-MR-FO node expanders and NGA modules into the network, in Class B or Class X configurations, at 625K baud. It also provides valuable signal boosting and transient protection on long runs. The standard product is a twisted-pair copper sub-assembly; fiber-optic connectivity is added with plug-in modules. The module is adaptable for installation in standard E3 Series and S3 Series cabinets and typically mounts on standoffs at the top right of the ILI-MB-E3 / ILI95-MB-E3 / ANX modules or the SLP motherboard.
Specifications
| Type |
ARCNET network repeater, unshielded twisted-pair |
| Network speed |
625K baud ARCNET |
| Network configurations |
Class B or Class X |
| Operating voltage |
24 VDC FWR |
| Operating current |
0.016 A |
| Alarm current |
0.017 A |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Relative humidity |
0 to 93% non-condensing at 90°F (32°C) |
| Copper wiring |
16 to 18 AWG twisted-pair, unshielded; up to 3,000 ft. (914.4 m) between each node |
| Fiber, multi-mode (FML-E3 only) |
Up to 200 microns, optimized for 62.5/125 microns; up to 8 dB loss between nodes |
| Fiber, single-mode (FSL-E3 only) |
Optimized for 9/125 micrometer cable @ 1310 nm; up to 30 dB loss between nodes |
| Standard |
UL 864 10th Edition |
| Listings |
UL S1869 (UL 864 10th Ed.); FM 3025415; MEA FDNY COA# 6077; CSFM 7165-1703-0125; City of Chicago Class 1, Class 2 and High Rise; City of Denver |
| Country of origin |
U.S.A. |
Installation notes
-
Fiber modules are add-ons: the RPT-E3-UTP ships as the twisted-pair repeater. Fiber runs require the FML-E3 (multi-mode) or FSL-E3 (single-mode) module, each covering one channel — order the fiber module with the repeater.
-
Node distance: 3,000 ft. (914.4 m) maximum between nodes on 16–18 AWG unshielded twisted pair; go to fiber beyond that, within the 8 dB (multi-mode) or 30 dB (single-mode) loss budget.
-
Mounting position: typically mounted on standoffs on the top of the right side of the ILI-MB-E3 / ILI95-MB-E3 / ANX modules and the SLP motherboard, inside standard E3 or S3 Series cabinets.
-
What it connects: ILI-MB-E3 / ILI95-E3 Series, the S3 Series SLP main board, ANX-SR / ANX-MR-UTP / ANX-MR-FO, and NGA modules — including remotely mounted NGA modules.
-
Installation documents: RPT-E3-UTP Installation Instructions P/N 9000-0580, and FML-E3/FSL-E3 Installation Instructions P/N LS10046-000GF-E; UL listing documents LS10080-051GF-E (E3 Series) and LS10005-051GF-E (S3 Series).
Related models
-
FML-E3 — multi-mode fiber-optic module for the RPT-E3-UTP, one channel
-
FSL-E3 — single-mode fiber-optic module for the RPT-E3-UTP, one channel
-
ILI-MB-E3 — E3 Series intelligent loop interface main board, one of the sub-assemblies this repeater brings onto the network
Specifications taken from the Gamewell-FCI data sheet "RPT-E3 Network Repeater," document 9020-0609 Rev. P (06/20). Manufacturer specifications are subject to change without notice.
