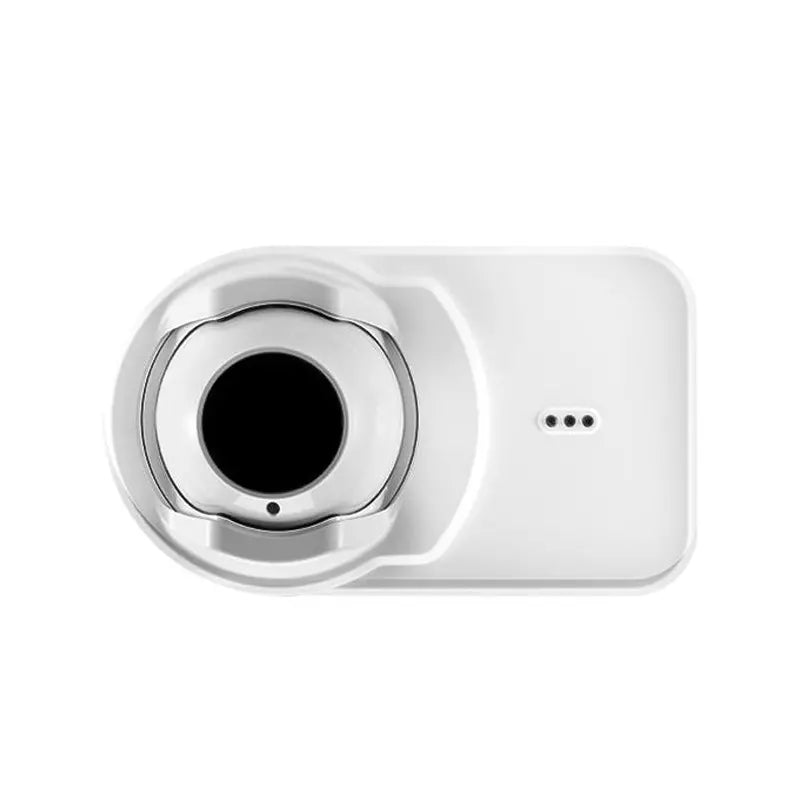

Gamewell-FCI OSI-RI-GW is an intelligent addressable, single-ended reflective imaging beam smoke detector for large open areas with high ceilings, such as malls, aircraft hangars, arenas and concert halls. The detector is a combined transmitter/receiver aimed at a reflector, operating on infrared light obscuration. It is compatible with 7075 Series, S3 Series and E3 Series panels in Velociti mode.
A CMOS imager in a movable "eyeball" is aligned using four LED arrows, then locked with a slide lever under a paintable cover. The imager tracks the reflector to tolerate building movement, sets its sensitivity automatically from the reflector size, and compensates for long-term dust contamination.
Specifications
| Protection range |
16 to 328 ft (5 to 100 m) |
| Field of view / adjustment |
12°; 50° horizontal, 20° vertical |
| Movement tolerance |
±1° |
| Sensitivity levels |
25%, 30%, 40%, 50% |
| Operating voltage |
15 to 32 VDC (24 VDC nominal) |
| Max. standby current |
14 mA @ 24 VDC (20 mA @ 15 VDC) |
| Max. alarm current |
15 mA @ 24 VDC (22 mA @ 15 or 32 VDC) |
| Operating temperature |
UL certified 32°F to 100°F; application range -4°F to 131°F |
| Humidity |
0 to 95% RH non-condensing |
| Detector dimensions |
6 in. H x 10 in. W x 4.5 in. D |
| Reflector dimensions |
9.06 in. H x 7.87 in. W |
| Weight |
2.48 lb installed |
| Terminal wire gauge |
14 AWG |
| Certifications |
UL S911; FM PR449231; CSFM 7260-1703:0506 |
Installation notes
- Spacing on smooth ceilings: 30 to 60 ft between beams, not more than half that to a sidewall (see NFPA 72).
- The built-in imager heater requires an external power supply.
- Remote test and reset from ground level with the RTS151 or RTS151KEY test station.
- Optional BEAMHKR reflector heater kit and 6500-MMK multi-mount bracket are available.
Related models
-
RTS151KEY — key-lock remote test and reset station.
-
OSP-002 — laser alignment tool; OSP-004 — test filter, 10 pack.
-
BEAMHKR — reflector heater kit.
Documents
FAQ
Which panels is it compatible with?
Gamewell-FCI lists the OSI-RI-GW as compatible with 7075 Series, S3 Series and E3 Series fire alarm control panels in Velociti mode.
Is a reflector included?

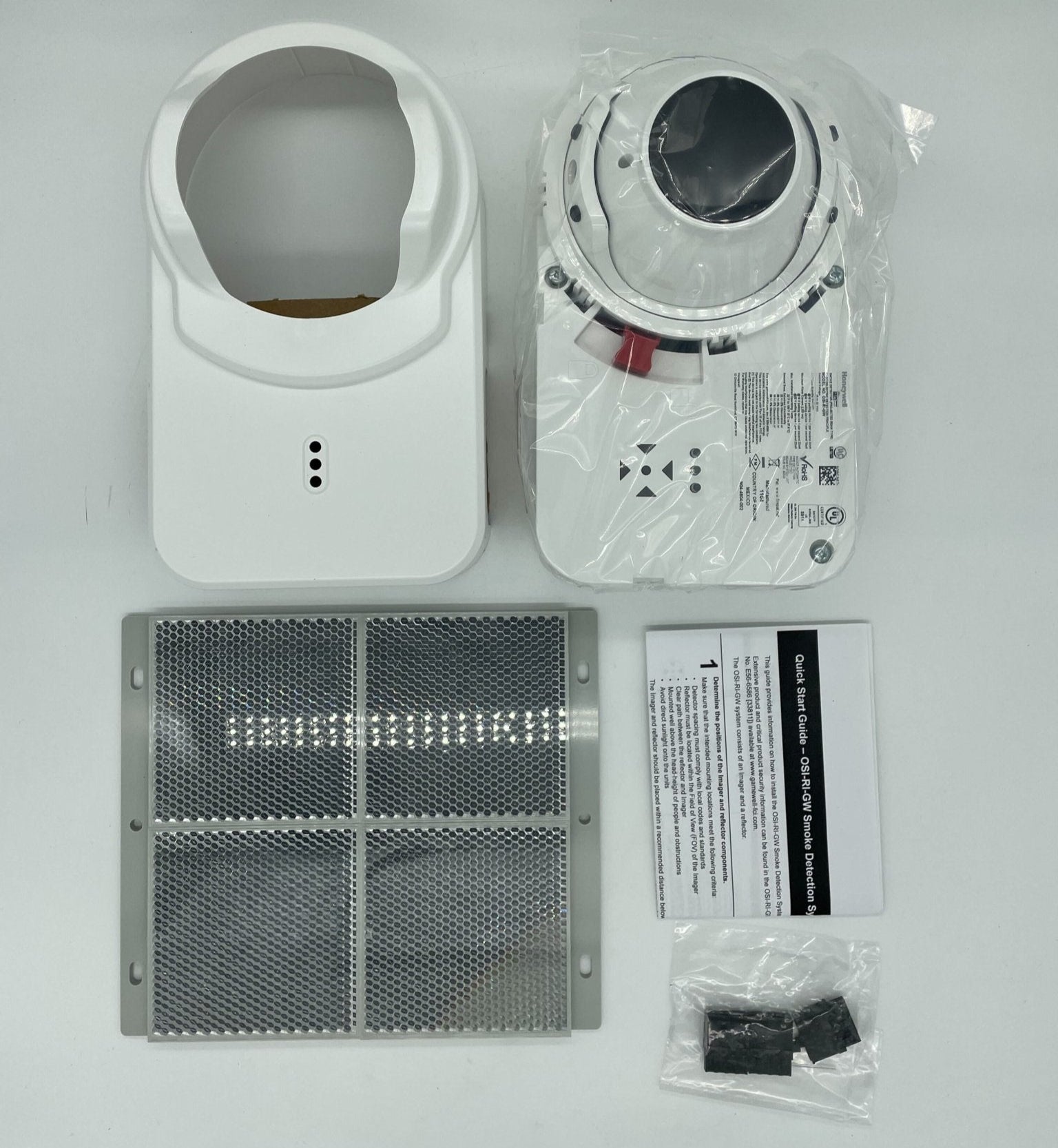

Yes. The OSI-RI-GW is supplied as the intelligent imaging beam detector including the reflector. Only the head unit needs to be wired.
What range does it cover?
16 ft to 328 ft (5 m to 100 m) as standard; no separate long-range kit is required.
How many can go on one SLC loop?
Because of SLC current draw, Gamewell-FCI states this generally limits the detector to up to 4 per loop on a dedicated circuit on Gamewell-FCI panels.
