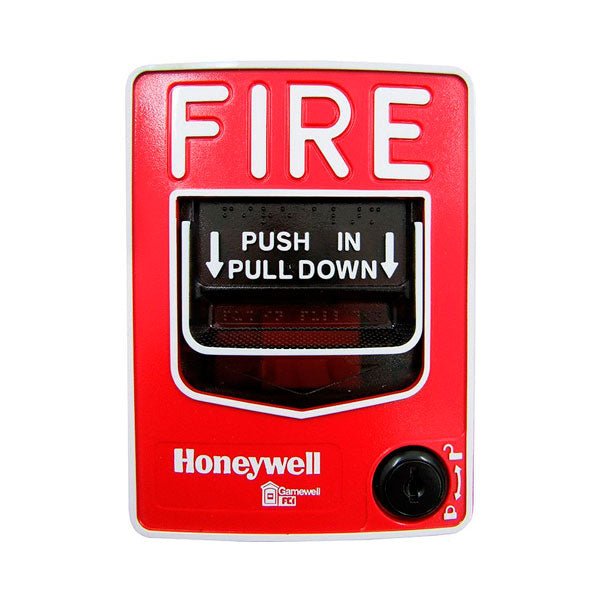

Gamewell-FCI MS-7LOB — double action manual pull station for conventional initiating circuits, UL certified for outdoor applications.

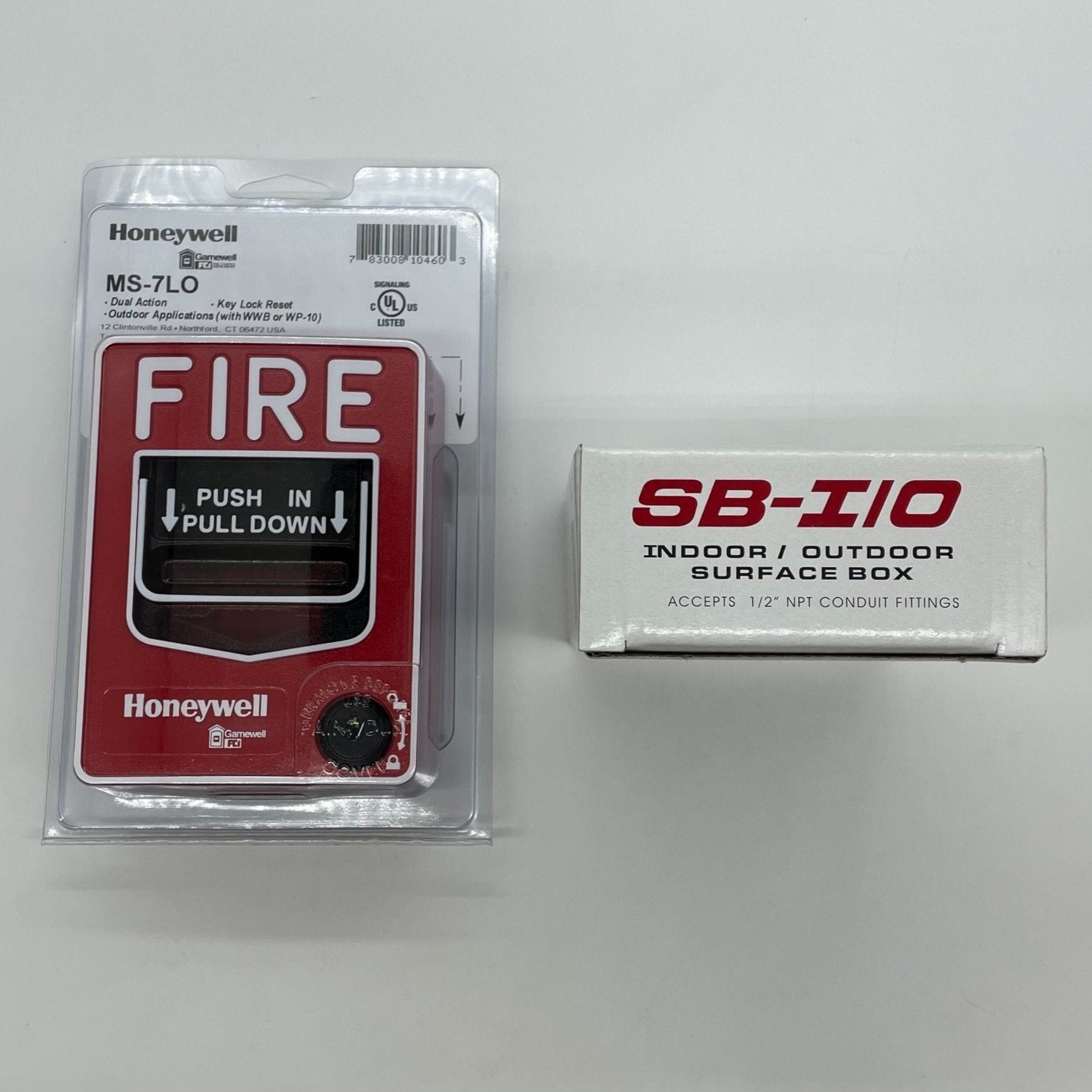

Most manual stations are certified for indoor use only. The MS-7LOB is the weather-rated member of the MS-7 family, for conventional panels in parking structures, loading docks and other exposed locations. It mounts on the SB-I/O indoor and outdoor backbox, supplied with the station, and is also UL certified for the WP-10 backbox in retrofit work.
- Double action; meets the ADA 5 lb maximum pull force requirement
- One set of single pole contacts with screw terminals
- Contact rating 0.25 A at 30 VAC/VDC, resistive
- Operating temperature –30° to 150° F (–35° to 66° C)
- Dimensions 5 5/8" H × 4 1/4" W × 1 1/4" D
- Lexan housing; Braille engraved in the handle
- Tumbler lock keyed alike with Gamewell-FCI controls
Not the indoor MS-7, the same double action station without the outdoor certification or the SB-I/O box. MS-7S is single action with wire leads and MS-7LR is an agent release station.
Documents
FAQ
Is the backbox included?

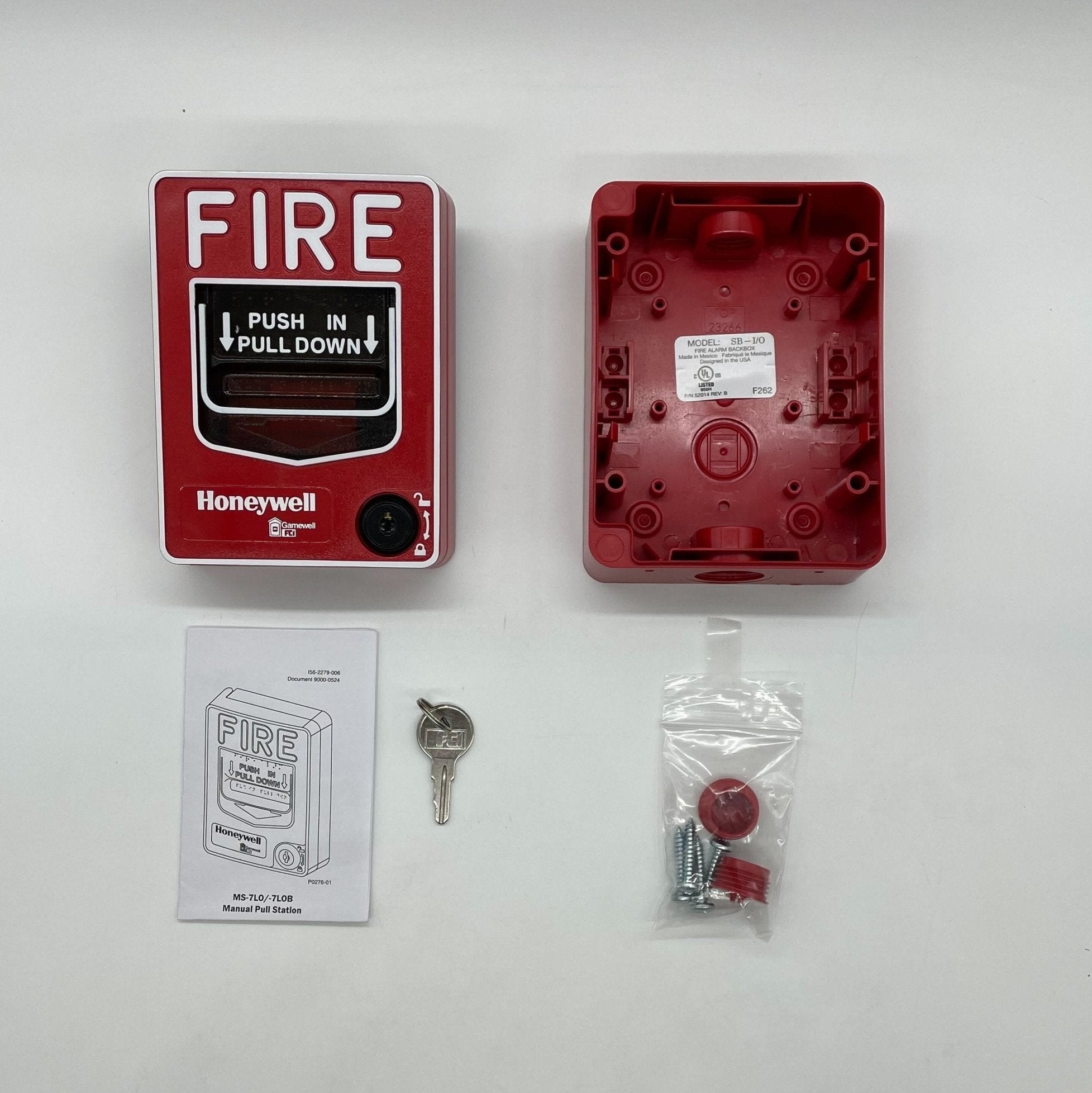

Yes. The MS-7LOB includes the SB-I/O indoor/outdoor backbox, and the station must be mounted on it. In retrofit applications it is also UL certified for use with the WP-10 backbox.
What temperature range is it rated for?
The MS-7LOB operates from -30 °F to 150 °F (-35 °C to 66 °C).
Which panels does it work with?
It is a conventional station with one set of single pole contacts, rated 0.25 A at 30 VAC/VDC resistive, for use with any UL certified control panel.
How is it reset?
It has a key lock for test and reset that is keyed alike with Gamewell-FCI controls.
