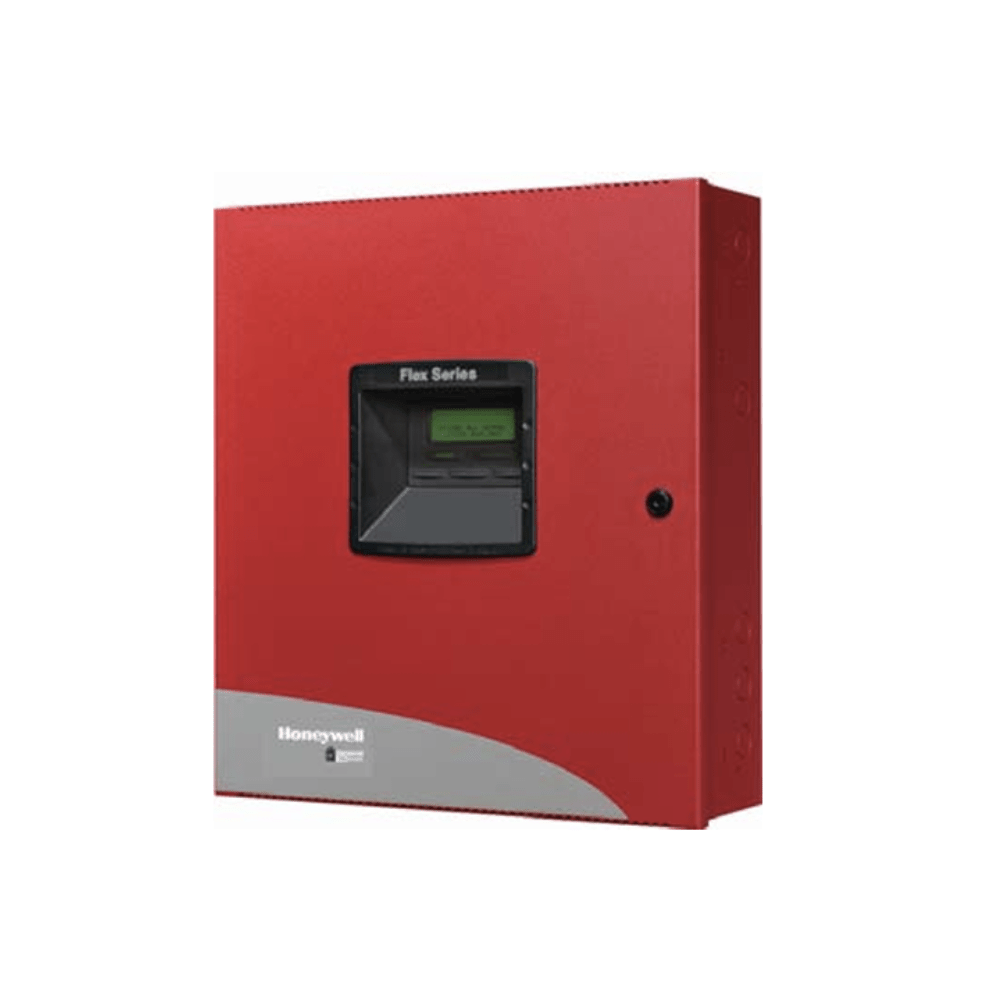

Gamewell-FCI GF510 is the Flex 510, a ten-zone conventional fire alarm control panel with a built-in digital alarm communicator, 120 VAC, with the FLPS-7 power supply in a red cabinet. It provides fire signaling for medium-sized commercial, industrial and institutional buildings.
The ten programmable Class B initiating circuits accept two- and four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally open devices. Outputs include four NACs, three programmable Form-C relays (factory set for alarm, trouble and supervisory) and resettable and non-resettable 24 VDC power. An ANN-BUS connects remote annunciators, printer, LED and relay modules.
Specifications
| Zones |
10 IDCs, Class B (Style B) |
| NACs |
4, Class B (Style Y), 3.0 A max each |
| Power supply |
Built-in FLPS-7, 7.0 A total |
| AC power |
120 VAC, 60 Hz, 3.8 A |
| Battery charger |
27.6 VDC at 1.4 A, 26 Ah max; two 18 Ah fit inside |
| Relays |
3 Form-C, 2 A at 30 VDC |
| Display |
80-character backlit LCD |
| Event history |
256 events |
| Backbox |
19 x 16.6 x 5.2 in. |
| Standard |
UL 864, 9th Edition |
Features
- Built-in DACT
- ADA strobe synchronization, selective silence, temporal or steady signal
- Alarm verification and positive alarm sequence
- Silent or audible walk test
- Two password-protected programming levels from the front keypad
- IBC seismic certified
Related models
- GF505: Flex 505, five-zone version
- CAC-5X: Class A converter for IDCs and NACs (two required for the GF510)
- 4XTMF: municipal box and reverse polarity transmitter module
Documents
FAQ
Does the GF510 have a built-in communicator?
Yes. The Flex 505 and Flex 510 are combination control and digital communicator panels with a built-in DACT.
Can it be converted to Class A?
Yes, with the CAC-5X Class A converter. Two are required for the GF510.
What batteries does it take?
The charger supports up to 26 Ah, and two 18 Ah batteries fit inside the cabinet.
Is there a remote annunciator?
The GFANN-80 remote annunciator has an 80-character backlit LCD that mirrors the panel display and connects on the ANN-BUS.
