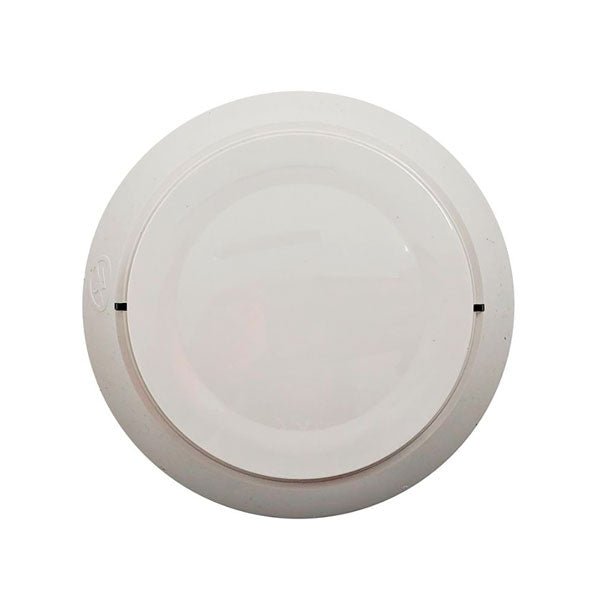

Gamewell-FCI ASD-PTL3-IV is a Velociti Series 3 intelligent addressable plug-in multi-sensor detector in ivory, combining photoelectric smoke sensing with thermal sensing through dual electronic thermistors at a 135°F fixed temperature. The ivory -IV service models run both Velociti and CLIP protocols for backward compatibility with existing installations. Rotary address switches give each detector a point ID, and the detector reports its sensed temperature to the panel.
Specifications
| Model |
ASD-PTL3-IV (ivory, Velociti/CLIP) |
| Sensing |
Photoelectric smoke plus 135°F fixed thermal |
| Rate-of-rise response |
Greater than 15°F/min or 135°F |
| Addressing |
Rotary switches, 01 to 159 |
| Voltage range |
15 to 32 VDC |
| Standby current |
200 µA at 24 VDC |
| Maximum alarm current |
2 mA at 24 VDC |
| Operating temperature (photo with thermal) |
32°F to 100°F (0°C to 38°C) |
| Humidity |
10% to 93% non-condensing |
| Air velocity |
0 to 4,000 ft/min |
| Height |
2.0 in. installed in B300-6 base |
| Diameter |
6.1 in. in B300-6 base; 4 in. in B501 base |
| Standard |
UL 268 |
| Certifications |
UL S2332, FM 3023594, CSFM 7272-1703:0501, MEA |
Installation notes
- Plugs into a separate base: B300-6-IV 6 in. flanged, B501-IV 4 in. flangeless, or relay, isolator and sounder bases.
- E3 Series and S3 Series panels support both Velociti and CLIP; the GWF-7075 panel does not support CLIP.
- Built-in functional test switch activated by an external magnet.
- Dual LEDs give 360° visibility.
Related models
- ASD-PTL3: bright white version, Velociti protocol
- ASD-PL3-IV: photoelectric-only detector, ivory
- ASD-PL3R-IV: remote-test photoelectric detector for DNR/DNRW duct housings, ivory
Documents
FAQ
Which protocol does the ASD-PTL3-IV use?
The ivory -IV models run both Velociti and CLIP. E3 Series and S3 Series panels support both protocols; the GWF-7075 panel does not support CLIP.
Is a base included?
No. The detector plugs into a separate base, such as the B300-6-IV 6 in. flanged base or the B501-IV 4 in. base; relay, isolator and sounder bases are also available.
What does the thermal sensor do?
It uses dual electronic thermistors at a 135°F fixed temperature and responds to a rise greater than 15°F per minute.
What is the operating temperature range?
The photoelectric/thermal model is rated 32°F to 100°F (0°C to 38°C) at 10% to 93% non-condensing humidity.
