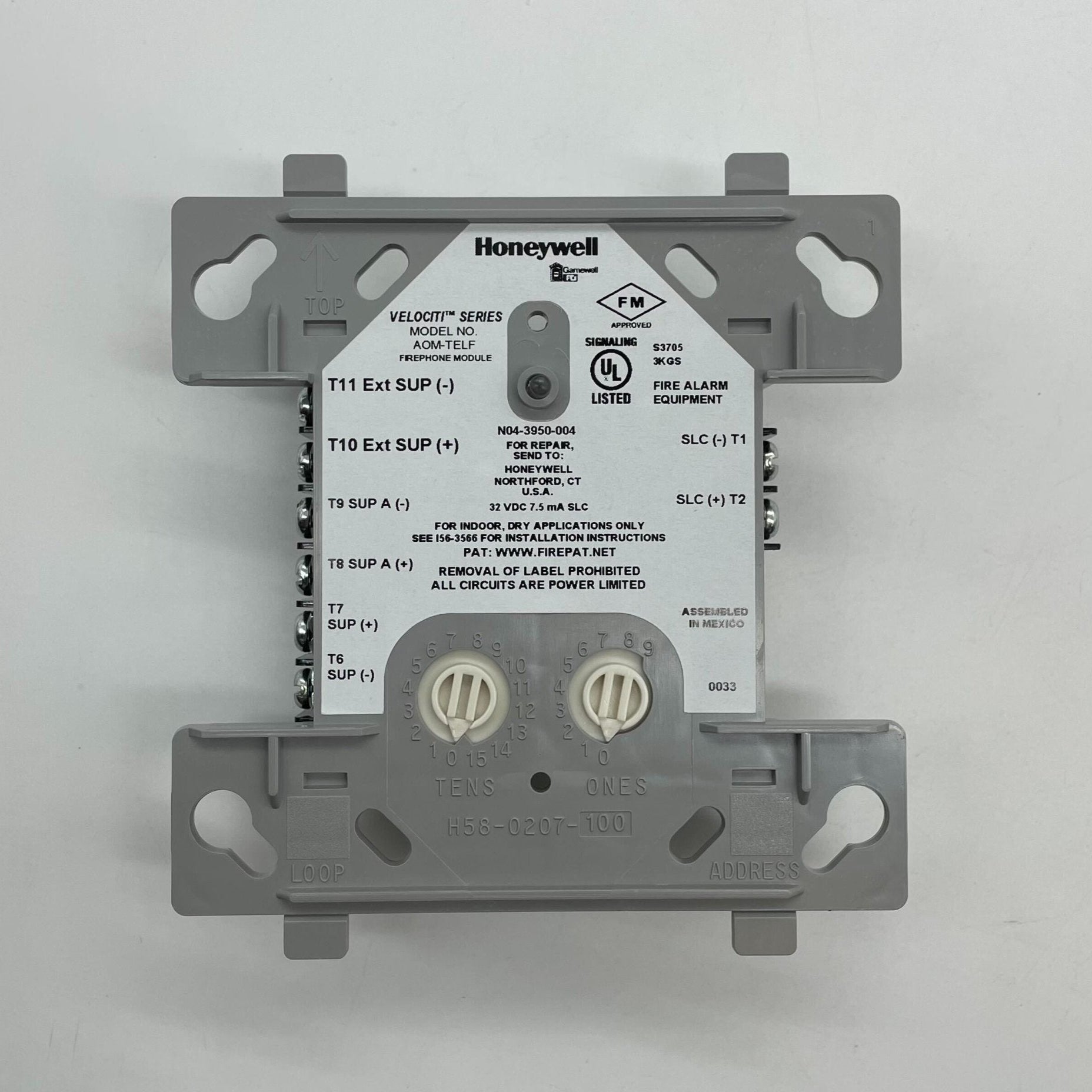

The Gamewell-FCI Velociti® Series, Telephone Monitor Module (AOM-TELF) controls the communications between the command center and the telephone jacks/warden stations
Wiring to individual telephone jacks and handsets is supervised and may be configured as two-wire (Class B) or fault-tolerant (Class A).
Status is reported to the panel as NORMAL, TROUBLE or TELEPHONE. The module contains a panel-controlled LED indicator. The AOM-TELF is installed in the signaling line circuit of the Gamewell-FCI Emergency Voice Evacuation Systems.
The AOM-TELF is designed to fit into a 4" (10.16 cm) square junction box 2 1/8" (5.5 cm) deep.
The Velociti® Series uses a communication protocol that substantially increases the speed of communication between the SLC devices and certain Gamewell-FCI analog addressable fire alarm controls.
These devices operate in a grouped fashion. If one of the devices in the group has a status change, the panel’s microprocessor stops the group poll and concentrates on the single device. The net result is a superior response speed up to five times greater than earlier designs.
Documents
FAQ
What does the AOM-TELF do?
It controls communications between the command center and fire fighter telephone jacks or warden stations, and supervises the wiring to the jacks and handsets.
Can the telephone circuit be wired Class A?
Yes. Wiring may be configured as two-wire Class B or fault-tolerant Class A.
What box does it mount in?
A 4 in. (10.16 cm) square junction box 2-1/8 in. (5.5 cm) deep.
What does the LED show?
A bi-color LED flashes green when the module is addressed and lights steady red on activation; only the red LED works on panels not running in Velociti mode.
