The Gamewell-FCI 1100-0503 ANU-48 is an LED driver module that turns a remote UL-certified annunciator enclosure into a custom status and control point for Gamewell-FCI systems. It works with the E3 Series Expandable Emergency Evacuation System, the E3 Series Combined Fire and Mass Notification System and the E3 Series Broadband Voice Evacuation system. Gamewell-FCI documentation also lists the S3 Series panel.
Key Features
- Outputs for up to 48 remote LEDs or driver circuits
- Inputs for eight software-programmable switches
- Switches can serve as speaker circuit, firefighter phone or auxiliary On-Off-Auto control functions
- Can be installed up to 3,000 ft (914.4 m) from the control panel
- Up to 16 ANU-48 or ASM-16 modules per INI-VG, ILI-MB-E3/ILI95-MB-E3 or SLP (128 switches, 768 LEDs)
- Mounts in any remotely located UL-certified annunciator enclosure
Specifications
-
Manufacturer: Gamewell-FCI
-

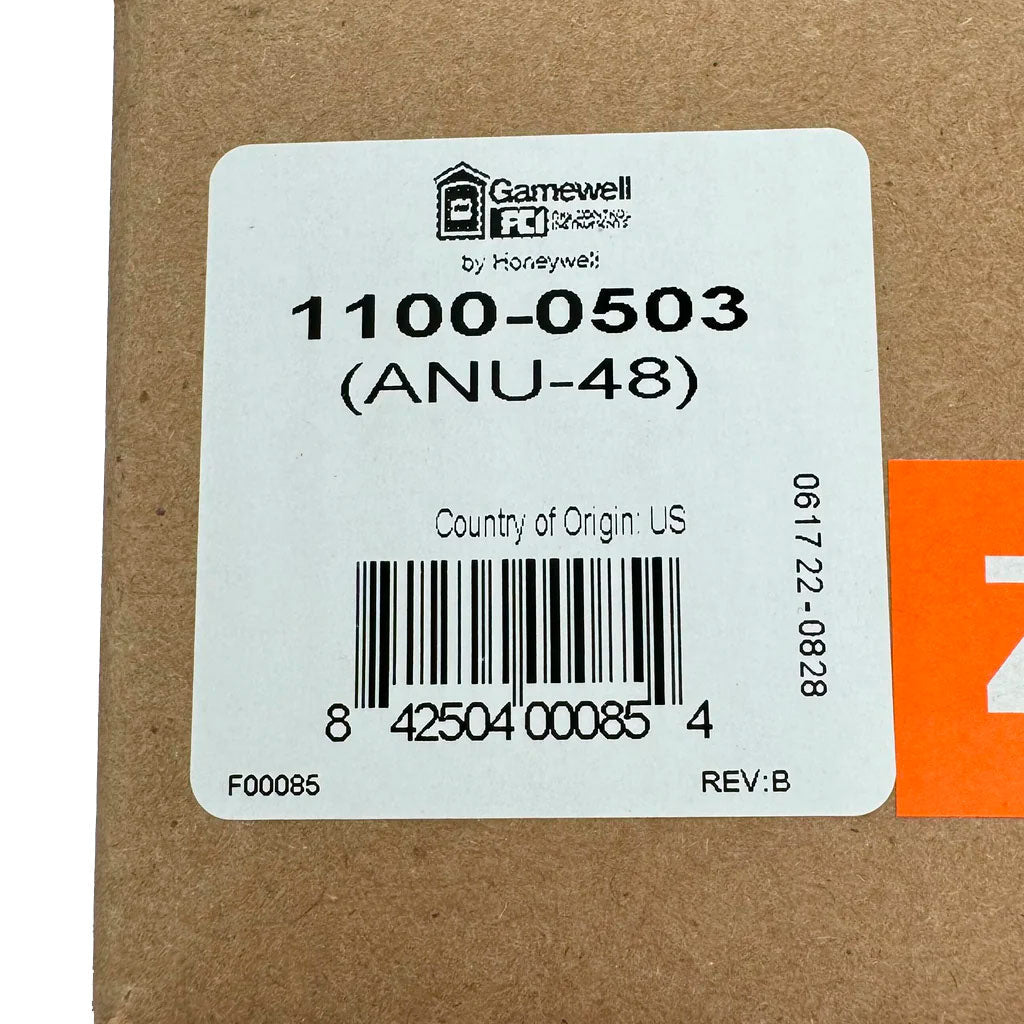

Part Number: 1100-0503 (ANU-48)
-
Operating Voltage: 24 VDC resettable
-
Operating Current: 0.011 A (add 0.003 A per lit LED when powered internally)
-
External Power Driver Output: 0.050 A max. per circuit; 2.4 A max. per module
-
Operating Temperature: 32°F to 120°F (0°C to 49°C)
-
Relative Humidity: 0–93% non-condensing at 90°F
-
Certifications: UL 864 10th Edition (S1869); UL 2572 2nd Edition for Mass Notification
Compatibility
Used with Gamewell-FCI E3 Series (fire, mass notification and broadband voice evacuation) and S3 Series systems. Installations with more than four ANU-48 modules require an external regulated, Class 2 power-limited power supply certified for fire protective signaling.
Documents
FAQ
Which systems does the ANU-48 work with?
The E3 Series Expandable Emergency Evacuation, Combined Fire and Mass Notification and Broadband Voice Evacuation systems, and the S3 Series panel.
How many modules can one system support?
An INI-VG Series, ILI-MB-E3/ILI95-MB-E3 or SLP supports up to 16 ANU-48 or ASM-16 modules, for 128 switches and 768 LEDs.
How far from the panel can it be installed?
Up to 3,000 ft (914.4 m) from the control panel.
When is an external power supply needed?
When more than four ANU-48 modules are installed, a regulated, Class 2 power-limited supply certified for fire protective signaling is required.
