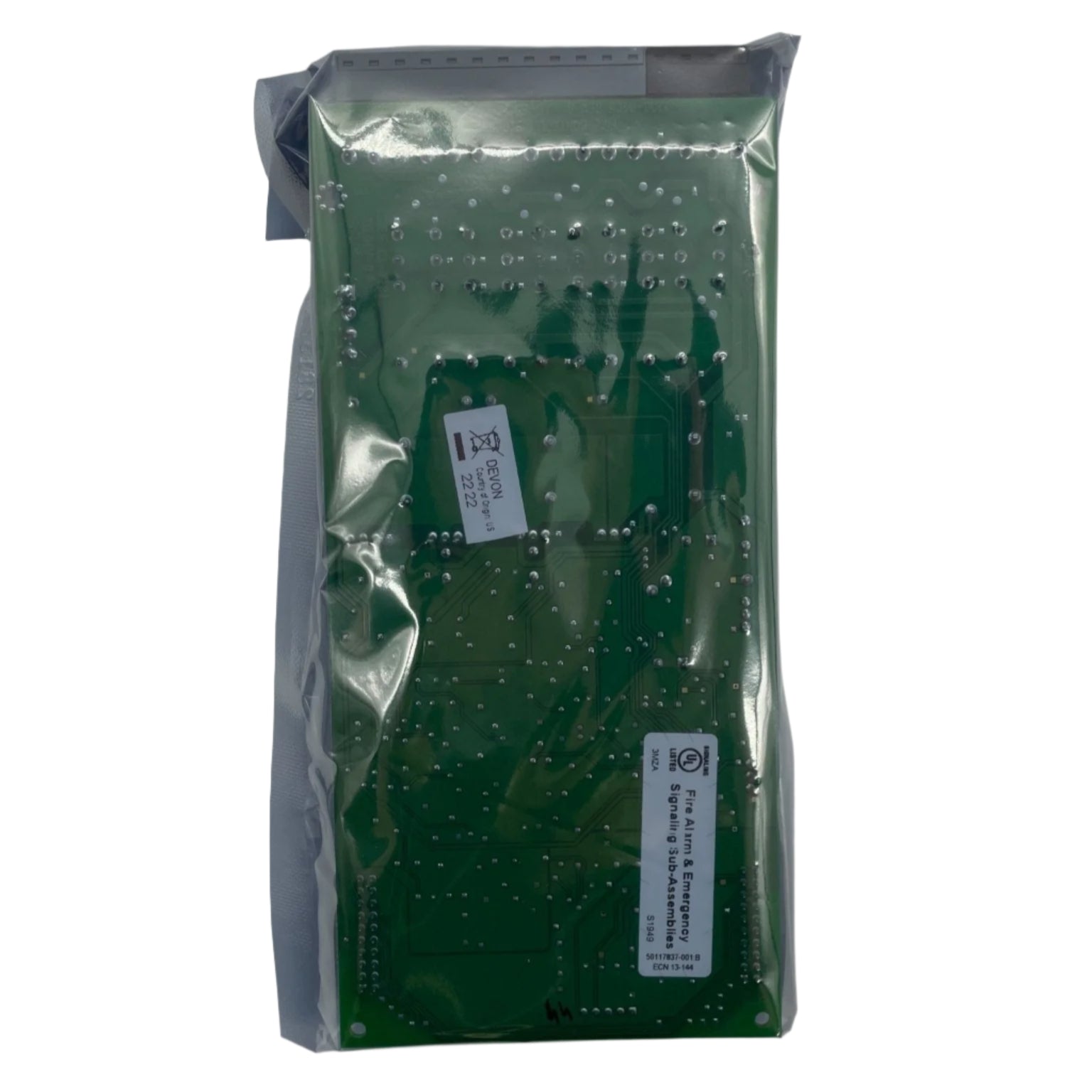

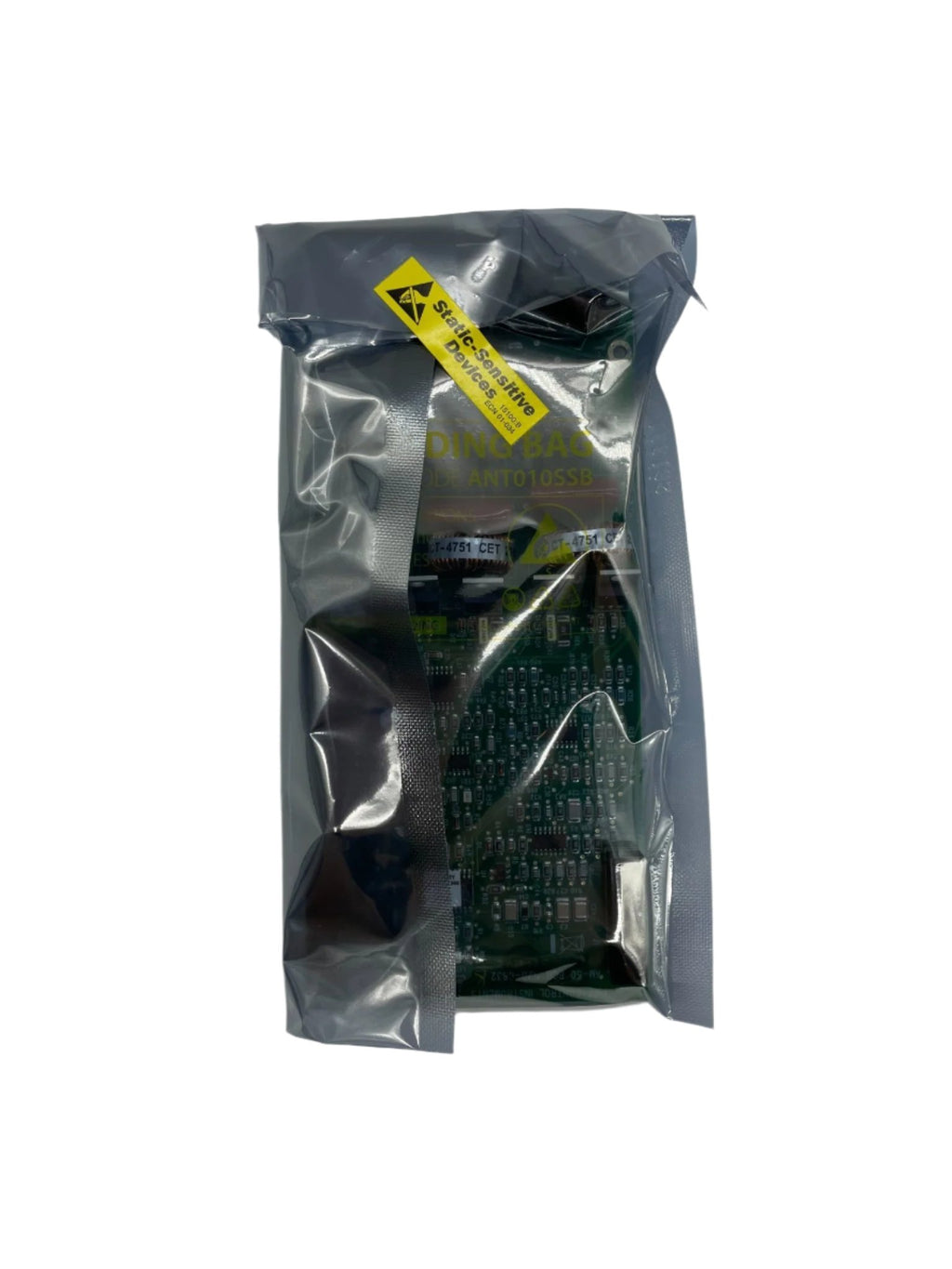

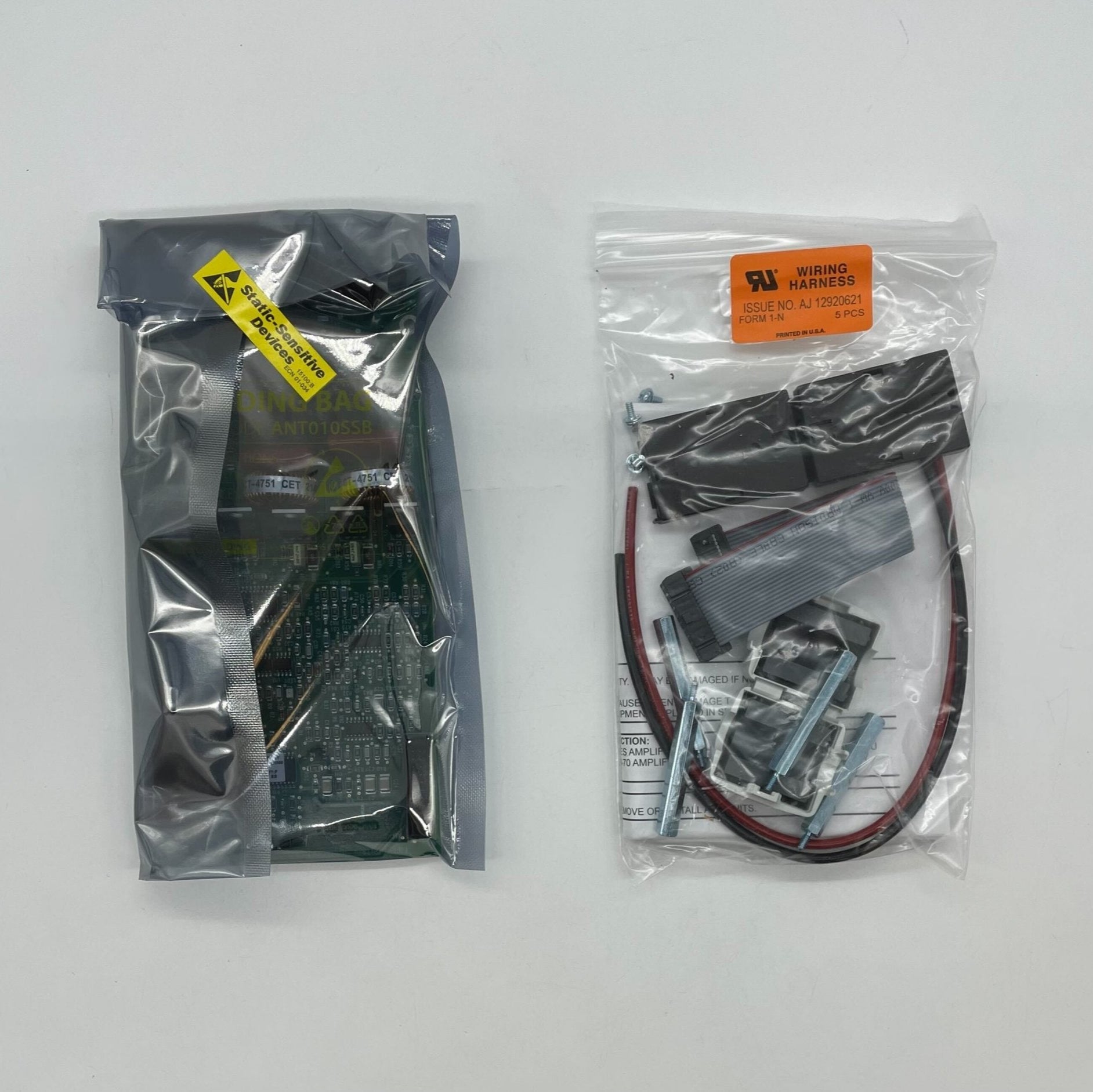

Gamewell-FCI 1100-0456 is the AM-50-25 amplifier: a 50 watt digital switching power amplifier with 25 VRMS audio output for the E3 Series Expandable Emergency Evacuation, Combined Fire and Mass Notification, and Broadband Voice Evacuation systems.
Each amplifier has two speaker circuits, wired Style Y (Class B) or Style Z (Class A), that share the 50 W total. The circuits are individually activated and supervised by an INI-VGX transponder voice gateway, and the amplifier can broadcast sixteen messages from its local INI-VGX.
Specifications
| Audio output |
50 W maximum at 25 VRMS |
| Operating voltage |
20.4 to 27.3 VDC |
| Standby current |
0.086 A |
| Alarm current |
2.206 A maximum at 50 W |
| Speaker circuits |
Two, Style Y (Class B) or Style Z (Class A); up to 12 AWG twisted-pair shielded wire |
| Operating temperature |
32 to 120 °F (0 to 49 °C) |
| Humidity |
0 to 93% non-condensing at 90 °F |
| Dimensions |
7-1/2 in. W x 3-1/2 in. H x 1-1/4 in. D |
| Standards |
UL 864 9th Ed., UL 2572 mass notification, UL 464 low frequency |
| Certifications |
UL S1869; FM 3017416; FDNY COA 6077; CSFM 7165-1703-0125 |
Installation notes
- Up to four AM-50 Series amplifiers with the same output voltage per INI-VGX, 150 W maximum between the four.
- An AM-50-25 and an AM-50-70 cannot be wired to the same INI-VGX voice gateway node.
- Mounts in INX CAB-B, INX-CAB-C or INX-CAB-D cabinets; use the AM-50 extender plate with the ACU of the Combined Fire and Mass Notification System.
Related models
- AM-50-70: same amplifier with 70.7 VRMS output
- INI-VGX transponder voice gateway
Documents
FAQ
Is the 1100-0456 the 25 V or 70 V model?
It is the AM-50-25, with 25 VRMS output; the AM-50-70 is the 70.7 VRMS version.
What controls the amplifier?
An INI-VGX transponder voice gateway activates and supervises its two speaker circuits.
Can I mix 25 V and 70 V amplifiers?
Not on the same INI-VGX node. Up to four amplifiers with the same output voltage, 150 W maximum in total, can be used per INI-VGX.
How much current does it draw?
0.086 A in normal standby and 2.206 A maximum in alarm at 50 W.
