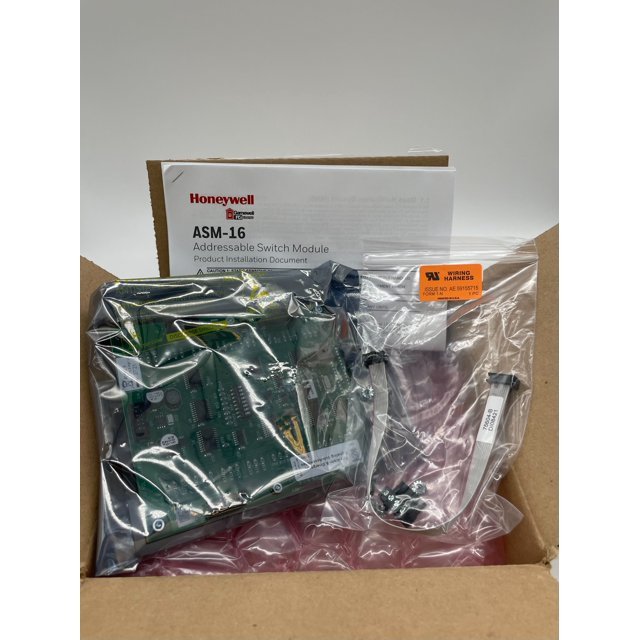

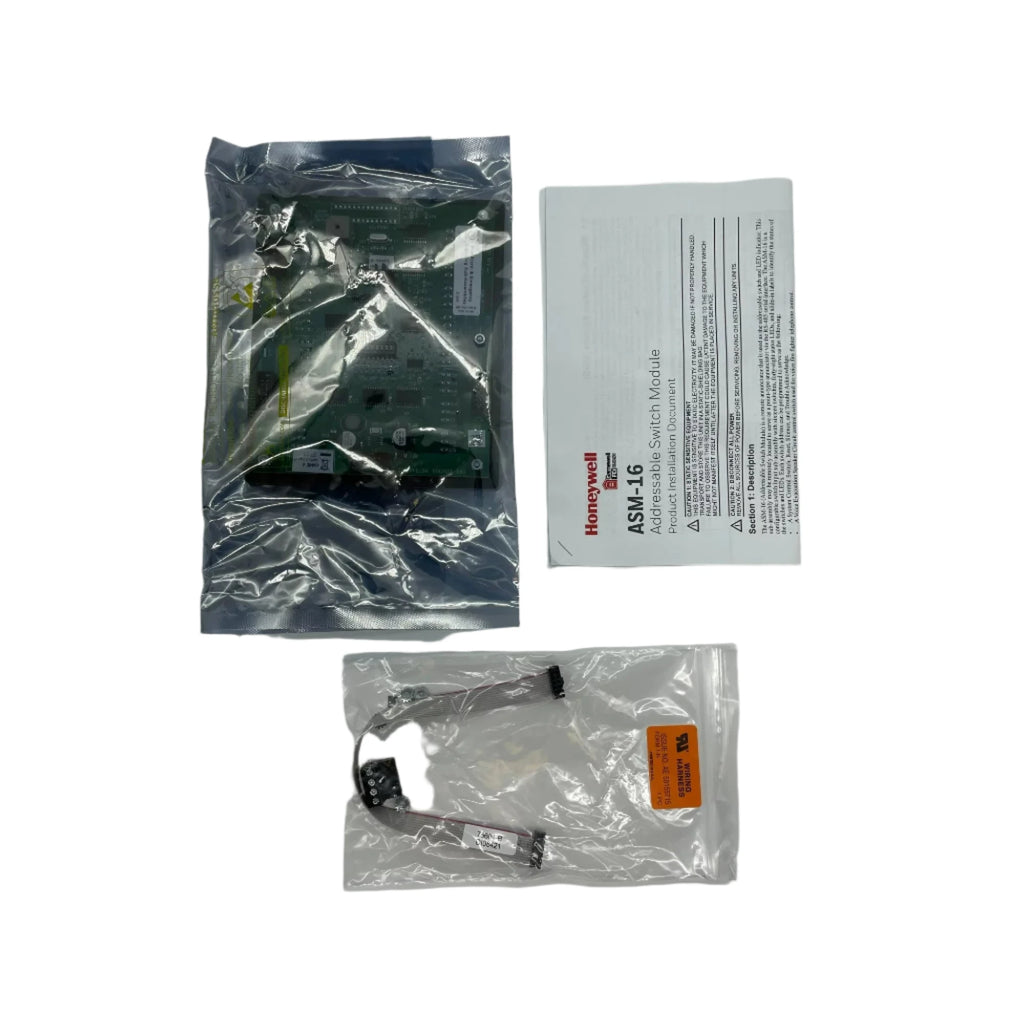

Gamewell-FCI 1100-0455 (ASM-16) Addressable Switch Module is the interface point between an operator and the system’s audio evacuation, firefighter intercom, and building control circuits
It is a component of the following systems:
- E3 Series® Expandable Emergency Evacuation System.
- E3 Series Combined Fire and Mass Notification System.
- E3 Series Broadband Voice Evacuation System.
- Net Solo® System.
- The ASM-16 is configurable.
Features
- Certified under UL® Standard UL2572 for Mass Notification.
- Each INI-VGC supports up to 16 ASM-16 switch modules for 256 switches.
- Each ILI-MB-E3/ILI95-MB-E3 supports up to 16 ASM-16 switch modules for 256 switches.
- Each ASM-16 switch has 3 fully programmable status, indicating LEDS: red, yellow, and green.
- All switch functions are fully software-programmable.
- Slip-in label inserts allow easily modified switch designations.
Specifications
- Operating Voltage: 24 VDC (nominal) (from the PM-9/PM-9G power supply).
- Operating Current: 0.011 amp. (with no LEDs lit).
- Operating Temperature: 32° to 120° F (0° to 49° C).
- Relative Humidity: 0 to 93% (non-condensing) at 90° F (32° C).
Documents
FAQ
What can each switch be programmed to do?
Each switch can act as a speaker circuit switch, auxiliary control switch (using a bank of 2 switches for on-off-auto), firefighter phone switch, or a custom function such as system reset, all-call, system silence, lamp test or acknowledge.
How many ASM-16 modules can a system use?
An INI-VGC assembly or ILI-MB-E3/ILI95-MB-E3 supports up to 16 ASM-16 modules, for 256 switches and 768 LEDs.
What current does it draw?
0.011 A at 24 VDC with no LEDs lit; each LED draws 3 mA, and with all 48 LEDs on the module draws 155 mA.
Can it be mounted away from the panel?
Yes. The data sheet states it may be remotely located via its RS-485 serial interface.
