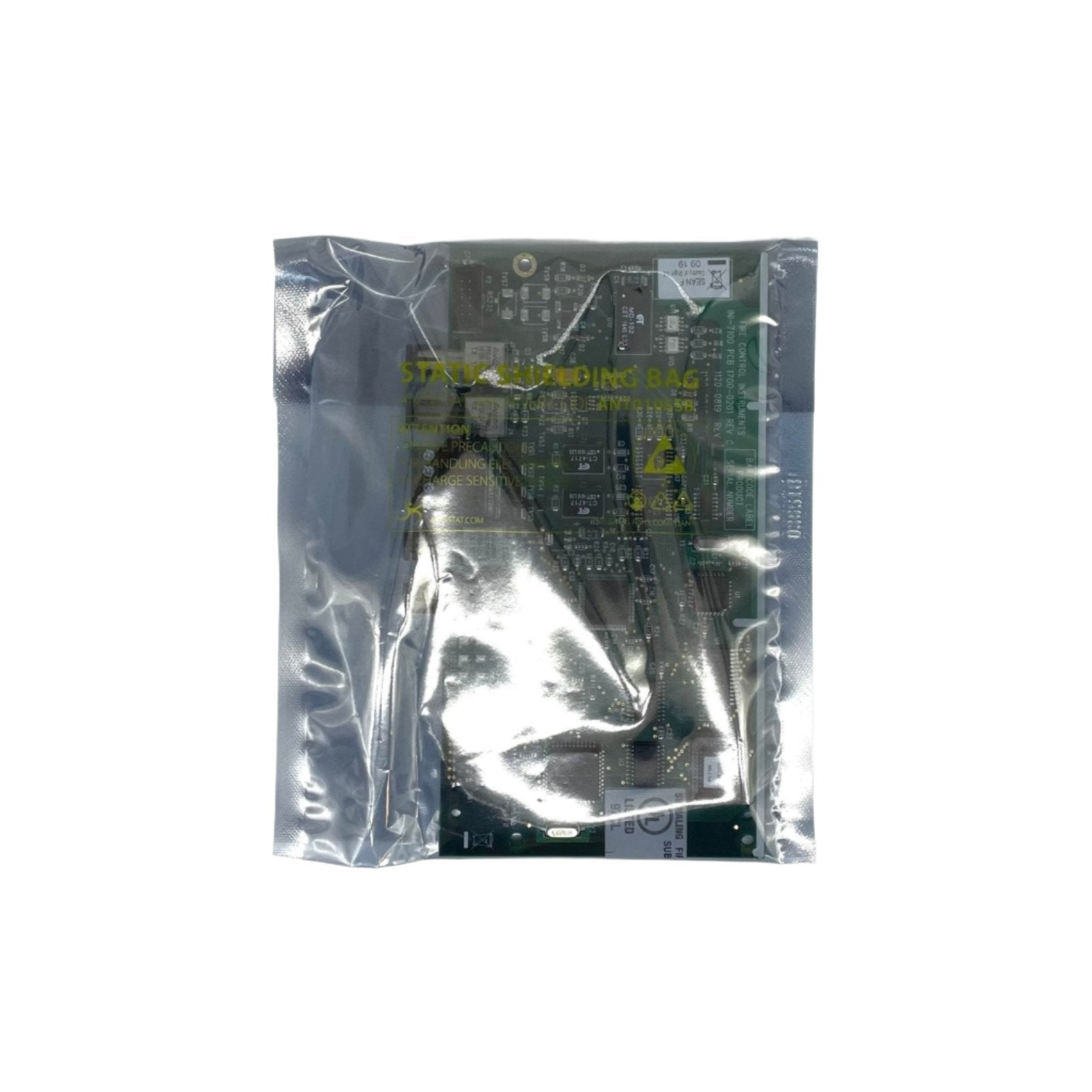

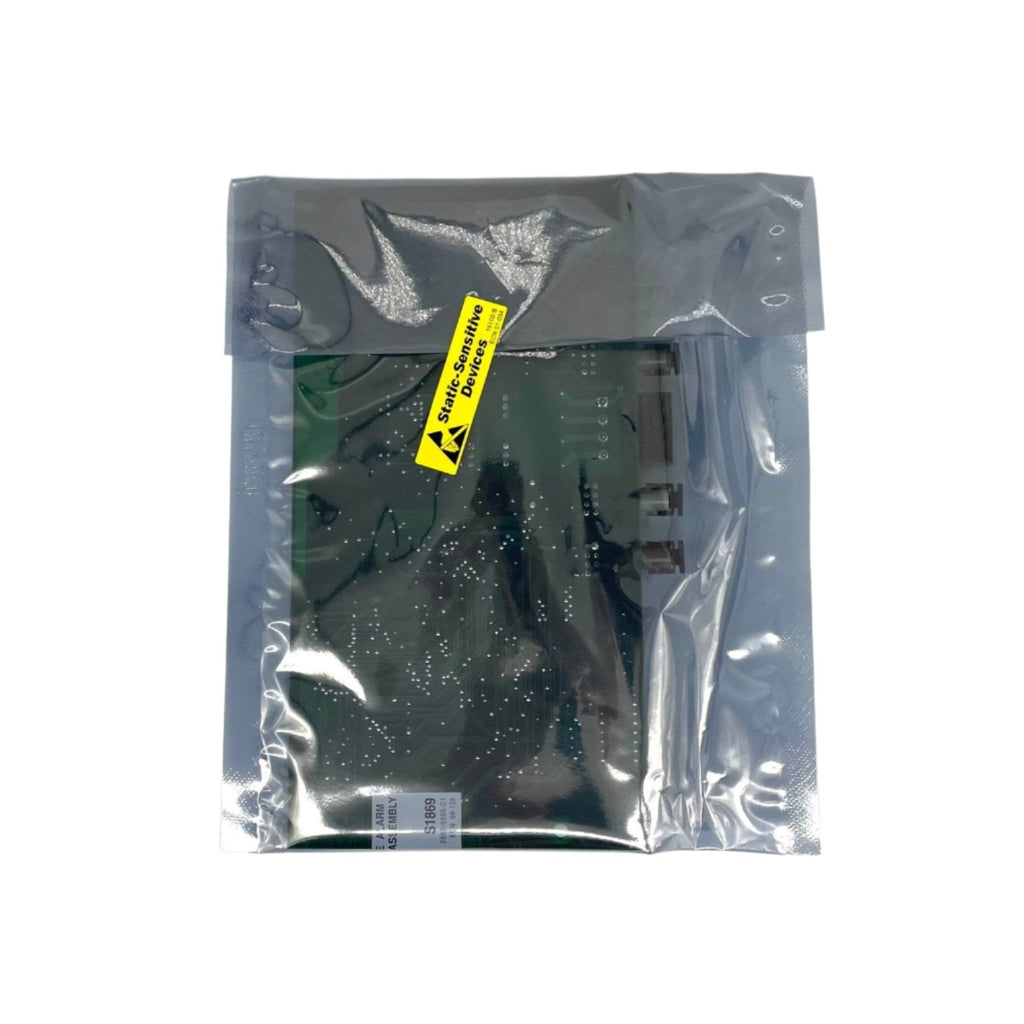

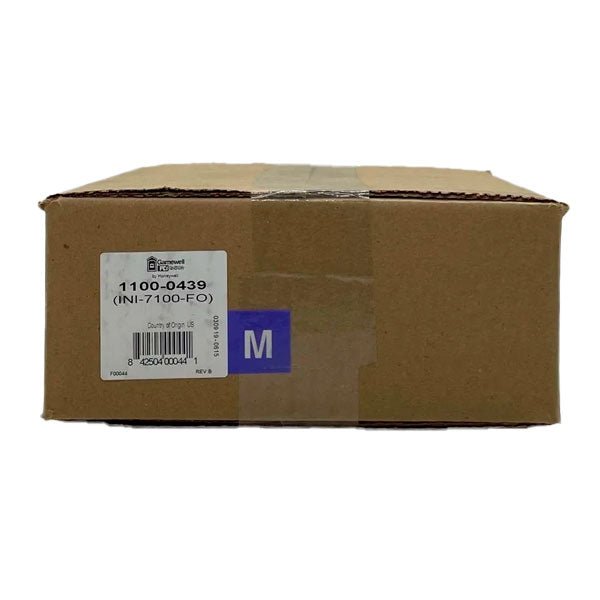

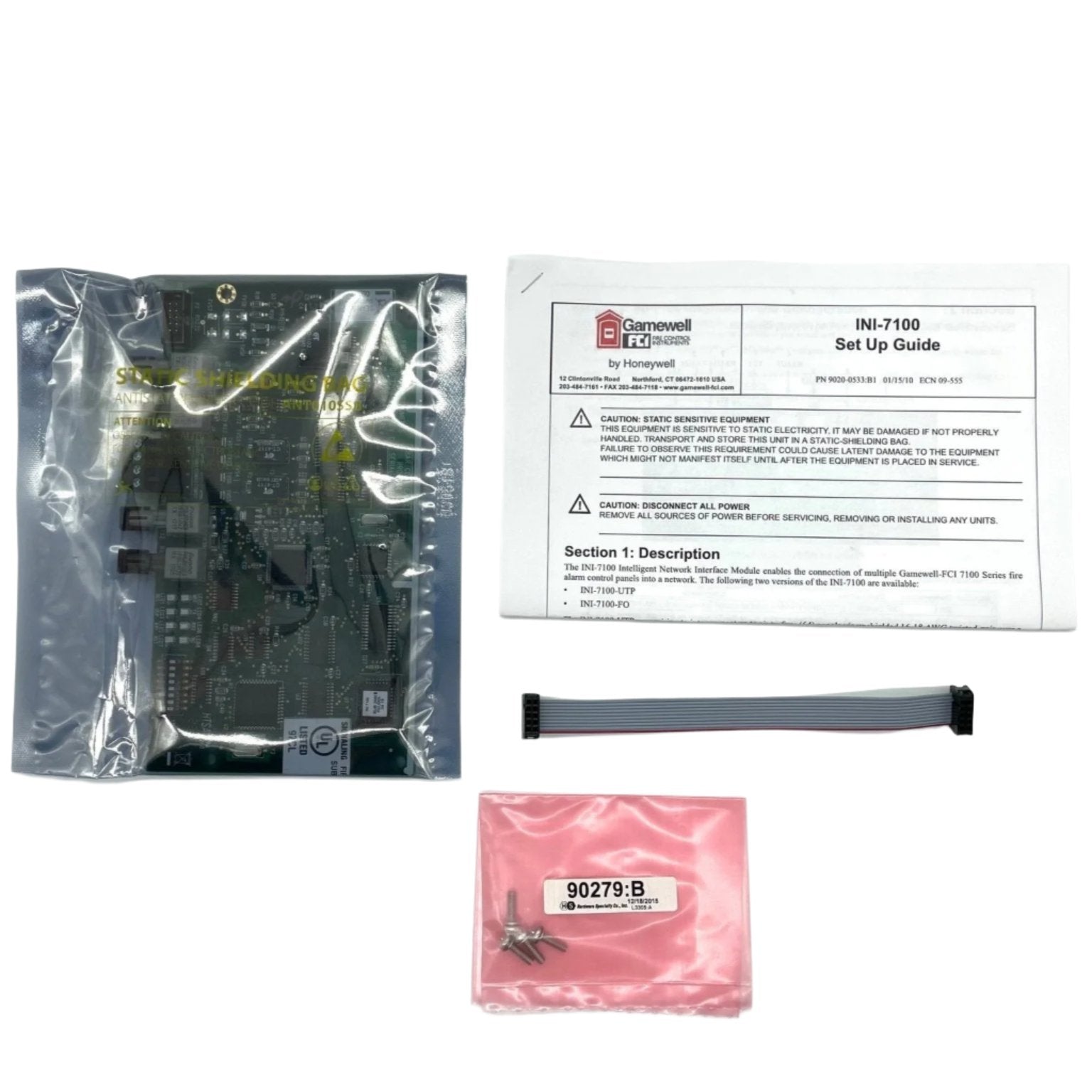

INI-7100-FO (store part 1100-0439) is the Gamewell-FCI Intelligent Network Interface Module, fiber-optic version, for 7100 Series fire alarm control panels. It lets a 7100 panel join a peer-to-peer, token ring, self-regenerative network of up to 64 7100 panels on the E3 Broadband network. The FO version accepts either fiber-optic cable or copper wire network terminations and occupies one node on the network.
Specifications
| Network |
Peer-to-peer, token ring, self-regenerative; up to 64 7100 panels |
| Media |
Fiber-optic or copper wire terminations |
| Nodes used |
One node on the E3 Broadband network |
| Current |
0.040 A supervisory; 0.040 A alarm |
| Host panel |
Gamewell-FCI 7100 Series fire alarm control panel |
Compatibility and installation notes
- An optional module for the 7100 Series panel; the copper-only version is the INI-7100-UTP.
- The Network Graphic Annunciator (NGA) is required when more than seven 7100 Series panels are networked (see the E3 Broadband Installation/Operating Manual, P/N 9000-0575).
- Include the 0.040 A module current in the 7100 standby battery calculation.
Related models
- INI-7100-UTP: Intelligent Network Interface Module, unshielded twisted-pair.
Documents
Specifications from Gamewell-FCI data sheet 9020-0466 Rev. N, 7100 Series, and 7100 Series Installation/Operating Manual P/N 9000-0447 Rev. I. Manufacturer specifications are subject to change.
